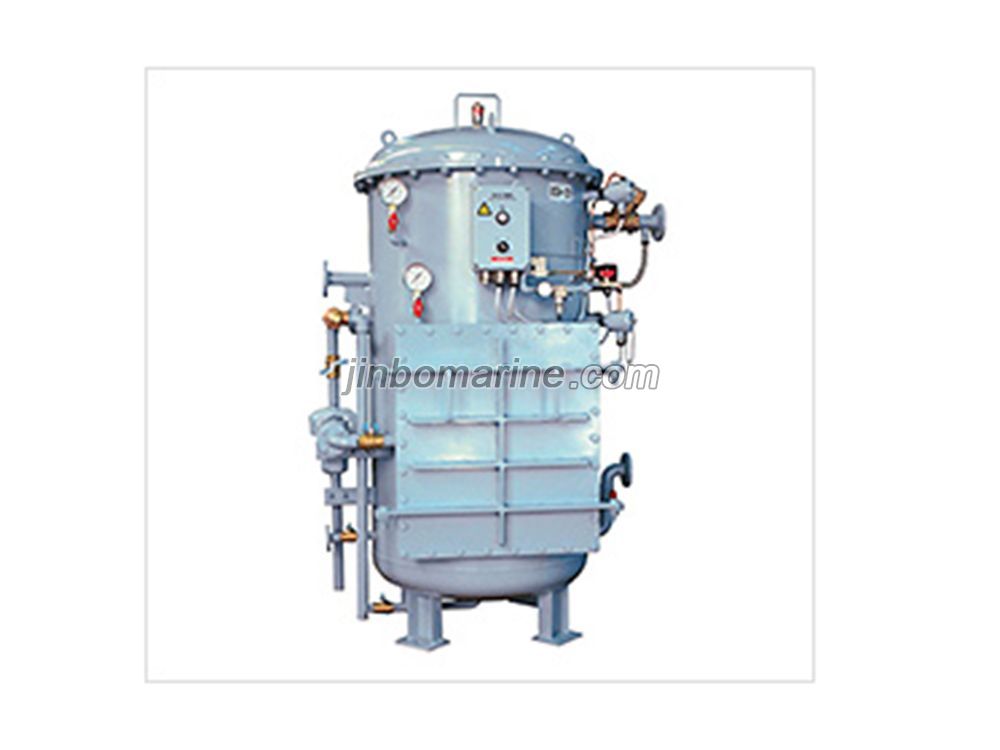

TAIKO KANGDA ENVIRONMENTALPROTECTION Marine Oil Water Seperator
- Category:Marine Oil Water Seperator
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
China TAIKO KANGDA ENVIRONMENTALPROTECTION Marine Oil Water Seperator:
TAlKO, which has launched three series of oilywater separators to the world, developed the oilywater separator (product model:USH)this time as acompilation of all the technology, in view of theenforcement of the new lO regulation MEPC107(49)which is applied to the ships for whichkeels are laid after the ist of January, 2005According to the transfer of technology CHONGQING TAIKO KANGDA ENVIRONMENTALPROTECTION TECHNOLOGY CO.,LTD gets thetechnology and manufactures the bilge separatorin the factory(product model:USHC)USH/C Series is the most advanced oily waterseparator with a long-life high-performance coale-scerer, allowing treatment not only a high-specificgravity high-viscosity oil but also an emulsion con-taining surface active agent or SS, which could notbe treated with conventional coalescers.This oily water separator, which was developedin pursuit of maintenancebility, provides stableperformance over a long period of time for bilgetreatment operations on actual marine vesselswithout giving stress to the users.it is indeed acustomer-oriented user-friendly oily water separator.
Data sheet:
|
Oily water Separator Model |
Applicable Gross Tonnage of Ships ton(Macimum) |
Remark |
Specificafion | |
|
Separation Capacity(m³/h) |
Max.Working Pressure Mpa(kgf/cm²) |
|||
| USH/C-03 | 568 |
When selecting the oily watar separator for the ship,it is preferable to choose bigger size than law-fixed capacity (1)0.00044Gm²/h(G;a gross tonnage of ship) forShips under 1000 gross tonnage. (2)0.4+0.00004Gm²/h for ships whose gross tonnage is between 1000 and 40000 tons (3)2m³h for ships over 40000 gross ton-nage. |
0.25 | 0.2(2) |
| USH/C-05 | 2500 | 0.5 | 0.2(2) | |
| USH/C-10 | 15000 | 1.0 | 0.2(2) | |
| USH/C-20 | Not limit | 2.0 | 0.3(3) | |
| USH/C-50 | 5.0 | 0.3(3) | ||
