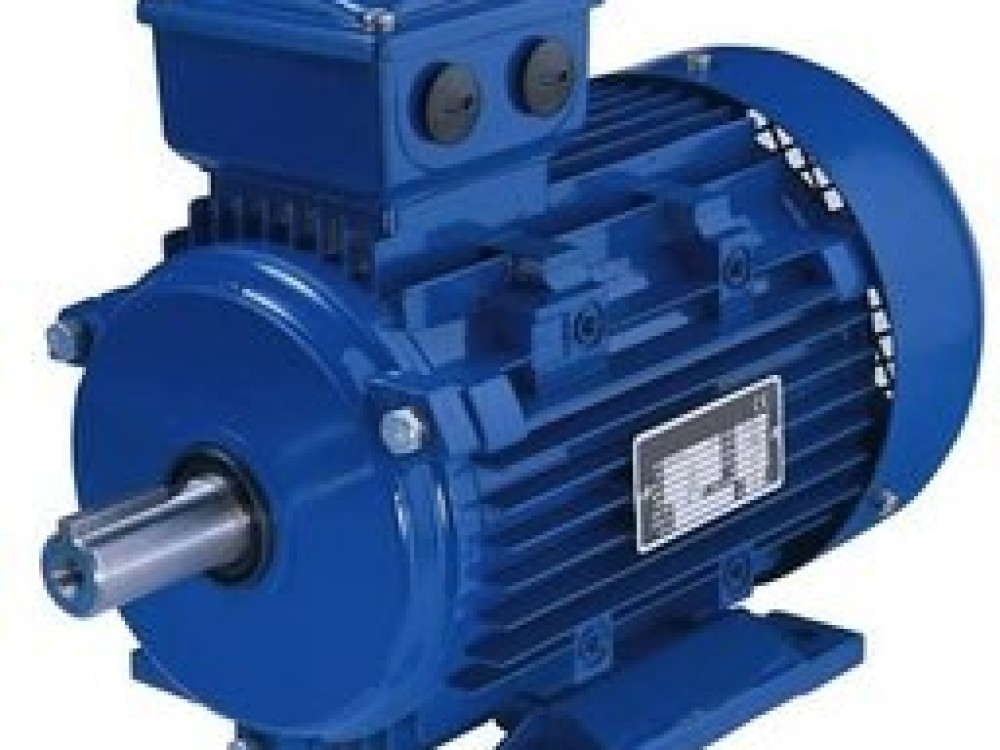

Three phase induction motors series JZ2-H hoisting

Name

Three phase induction motors series JZ2-H hoisting

Power

1.5-100kw

Voltage

380-440v(220-690V)

Frequency

50-60hz

Frame size

JZ2-H1

Insulation

F-H

Protection Class

-IP56

Usage

Suitable for short time and intermittent dragging, such as winches, capstans and deck machinery.

Introduction

Three phase induction motors series JZ2-H, rise for hoisting on board ship are of the squirrel-cage. And recommended for short time or intermittent drive of the winches and capstans.

Operating conditions;

Temperature of ambient air: -25 to +45 degree

Altitude: 0m

Relative humidity: less than 95%

Dew: exist

Salt mist: exist

Oil mist: exist

Fungus: exist

Shock: exist

Vibration: exist

Inclination and swing: +/-22.5 degree

Rated Voltage: 380v or 440v

Rated Frequency: 50hz or 60hz

Connection: Y, Y/Y, Y/YY

Duty Type: S2-30min, S2-30/10min, S2-30/15min, S2-10/30/5 min

Insulation: F

Rise of winding: 85k or 105k

Permissible working temp of bearing: 95 degree
