TICI(i&c)/TIOI(i&c) Flame Retardant Marine Telephone & Instrument Cable 250V

Request a Quote Not what you need, please send your RFQs via Email.

Details

China TICI(i&c)/TIOI(i&c) Flame Retardant Marine Telephone & Instrument Cable 250V:

TICI(i&c) and TIOI (i&c) Cable is individual and collective screen telephone and instrument cable, approved by International Class Society like ABS, LR, BV, DNV, GL, NK,KR and CCS.

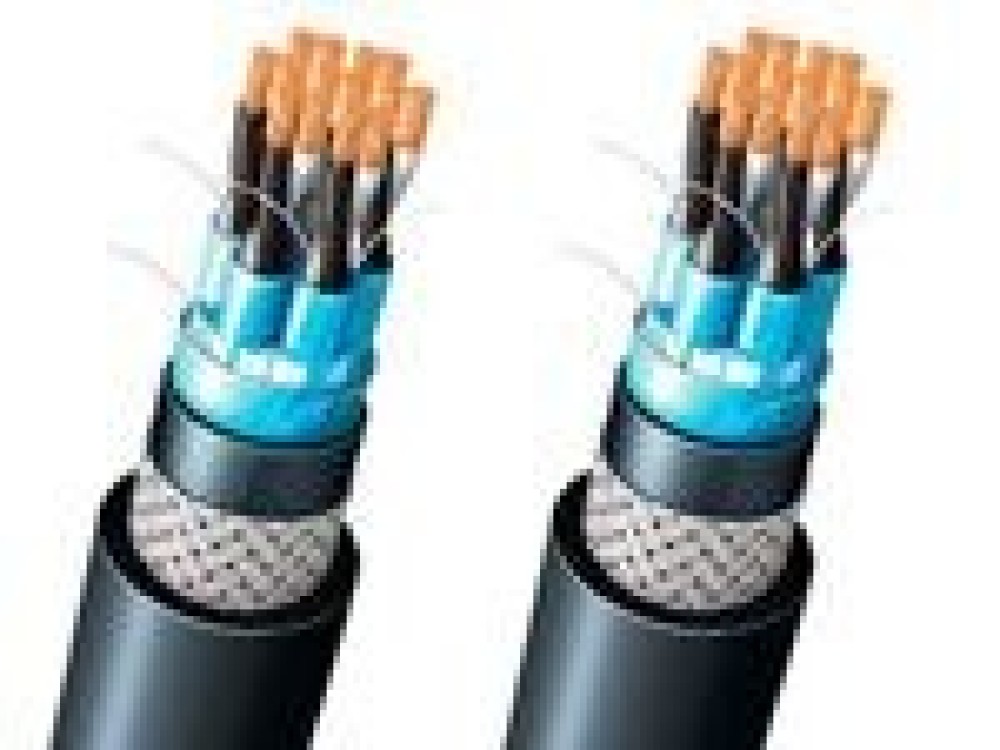

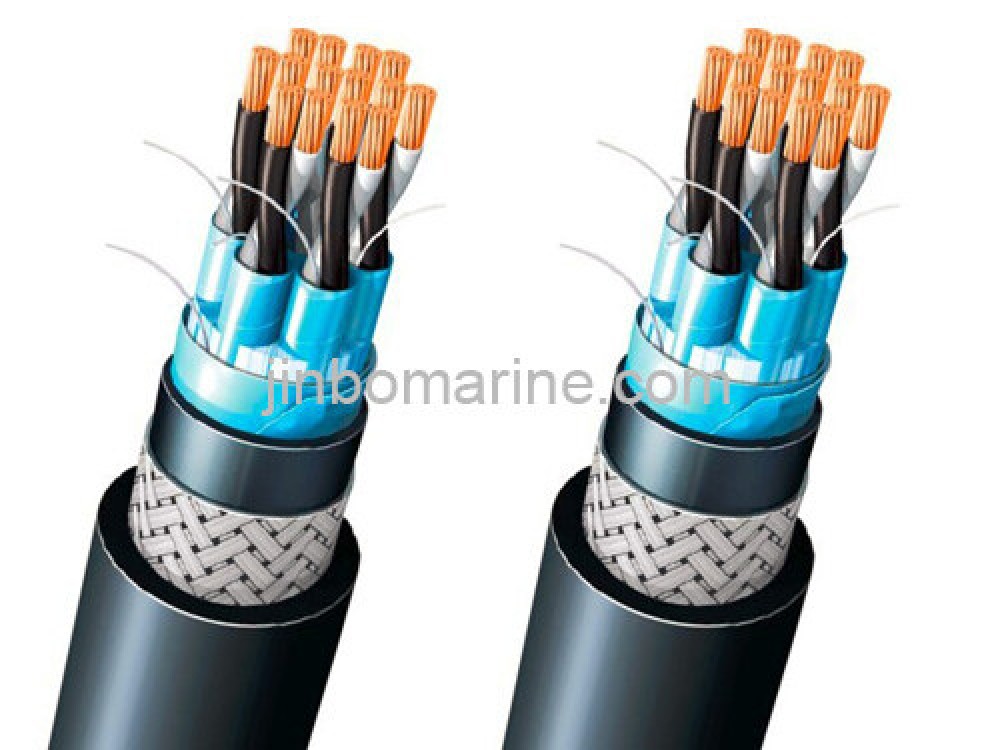

Cable Construction

Conductor: Tinned Copper. IEC 60228 Class 2

Insulation : XLPE Insulation

Individual (i): Each Pair and Triad individually screened by aluminum polyester tape with tinned copper wire

Collective Screen ( c ): Pair and Triad laid up and collective screened by aluminum polyester tape with tinned copper wire

Inner Sheath : Halogen-free Thermoplastic Polyolefin(SHF1)

Armour : Galvanized Wire Braided/Tinned Copper Wire Braied

Outer Sheath : Halogen-free Thermoplastic Polyolefin(SHF1), Black

Standards

Design : IEC 60092-350, 376

Insulation Material : IEC 60092 -351

Sheath Material : IEC 60092-359

Flammability: IEC 60332-1 & IEC 60332-3 Category A

Halogen--free: IEC60754-1, IEC60754-2

Smoke Emission: IEC 61034-1, IEC61034-2

Cores & Size

Cores: 1P, 2P,3P,4P,5P,7P,10P,12P,14P,16P,19P,20P, 24P, 30P (P:Pair)

1T, 2T,3T,4T,5T,7T,10T,12T,14T,16T,19T,20T, 24T, 30T (Triad)

Size (sqmm): 0.75, 1, 1.5, 2.5

Feature

Halogen-free, Low Smoke, Flame retardant

Application

The cable is fixed installation on ships and offshore units.
