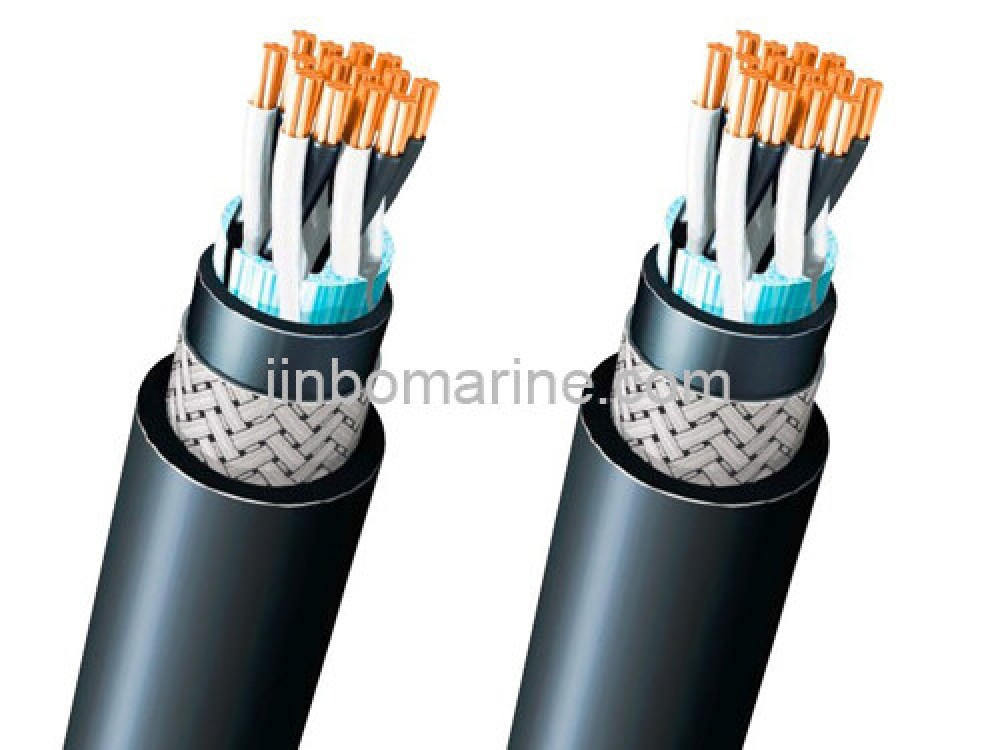

TICI/TIOI Flame Retardant Marine Telephone & Instrument Cable 250V (Non-screen)

Request a Quote Not what you need, please send your RFQs via Email.


China TICI/TIOI Flame Retardant Marine Telephone & Instrument Cable 250V (Non-screen):

TICI and TIOI Cable(150/250V) is non screen Flame Retardant Marine Telephone & Instrument cable, we supply these cable to Singapore, Indonesia, Malaysia, Thailand and other countries.

Technical Specification´╝Ü

Cable Construction

Conductor: Tinned Copper. IEC 60228 Class 2

Insulation : XLPE Insulation

Inner Sheath : Halogen-free Thermoplastic Polyolefin(SHF1)

Armour : Galvanized Wire Braided/Tinned Copper Wire Braied

Outer Sheath : Halogen-free Thermoplastic Polyolefin(SHF1), Black


Design : IEC 60092-350, 376

Insulation Material : IEC 60092 -351

Sheath Material : IEC 60092-359

Flammability: IEC 60332-1 & IEC 60332-3 Category A

Fire-resistant: IEC 60331

Halogen--free: IEC60754-1, IEC60754-2

Smoke Emission: IEC 61034-1, IEC61034-2

Cores & Size

Cores: 1P, 2P,3P,4P,5P,7P,10P,12P,14P,16P,19P,20P, 24P, 30P (P:Pair)

1T, 2T,3T,4T,5T,7T,10T,12T,14T,16T,19T,20T, 24T, 30T (Triad)

Size (sqmm): 0.75, 1, 1.5, 2.5


Halogen-free, Low Smoke, Flame retardant.
