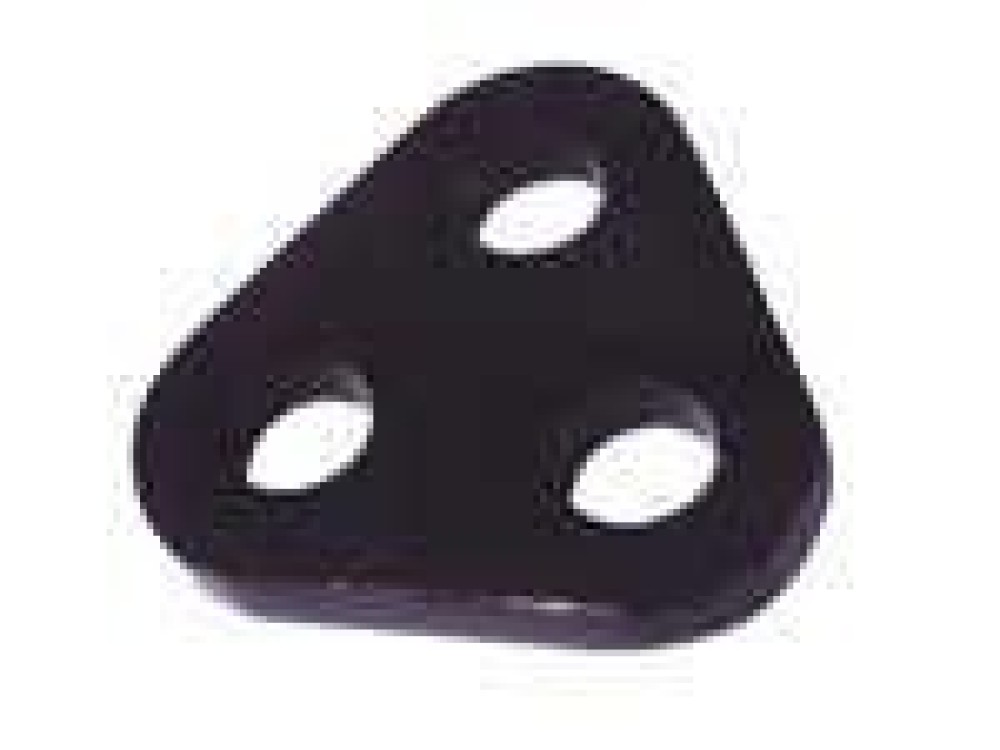

Triangle plate
- Category:Connectors
- Material:High Tensile Steel
- Delivery Time:30 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Triangle plate:
Triangle plate is widely used for mooring system in the offshore field. We can supply according to your requirement. For more information, please contact us.

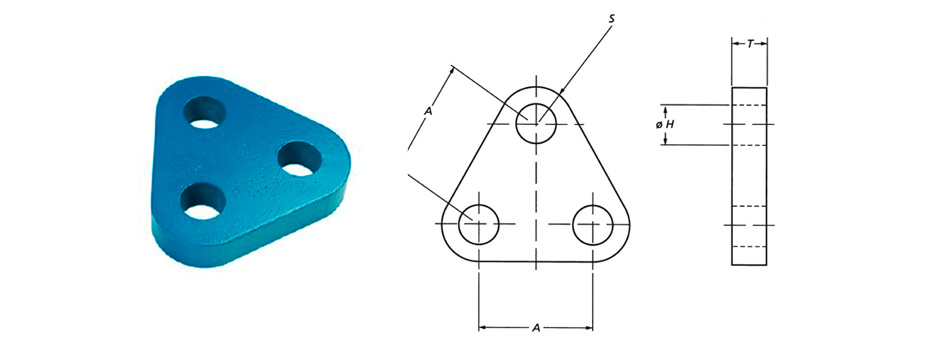

Size Table
| WLL(T) | MBL(T) | Dimension(mm) |
Weight (kgs) |
|||
| A | H | T | S | |||
| 9.5 | 47.5 | 100 | 35 | 40 | 35 | 5 |
| 12 | 60 | 110 | 40 | 40 | 40 | 6.5 |
| 13.5 | 67..5 | 120 | 42 | 45 | 425 | 8.5 |
| 17 | 85 | 130 | 45 | 45 | 50 | 9.5 |
| 25 | 125 | 140 | 55 | 50 | 65 | 13.5 |
| 35 | 175 | 150 | 60 | 60 | 70 | 19 |
| 55 | 275 | 180 | 75 | 80 | 85 | 37.5 |
| 85 | 425 | 220 | 90 | 90 | 110 | 62 |
| 120 | 600 | 124 | 105 | 110 | 130 | 95 |
| 150 | 750 | 260 | 115 | 130 | 135 | 133 |
| 175 | 875 | 290 | 115 | 140 | 145 | 163 |
| 200 | 1000 | 380 | 140 | 150 | 160 | 282 |
