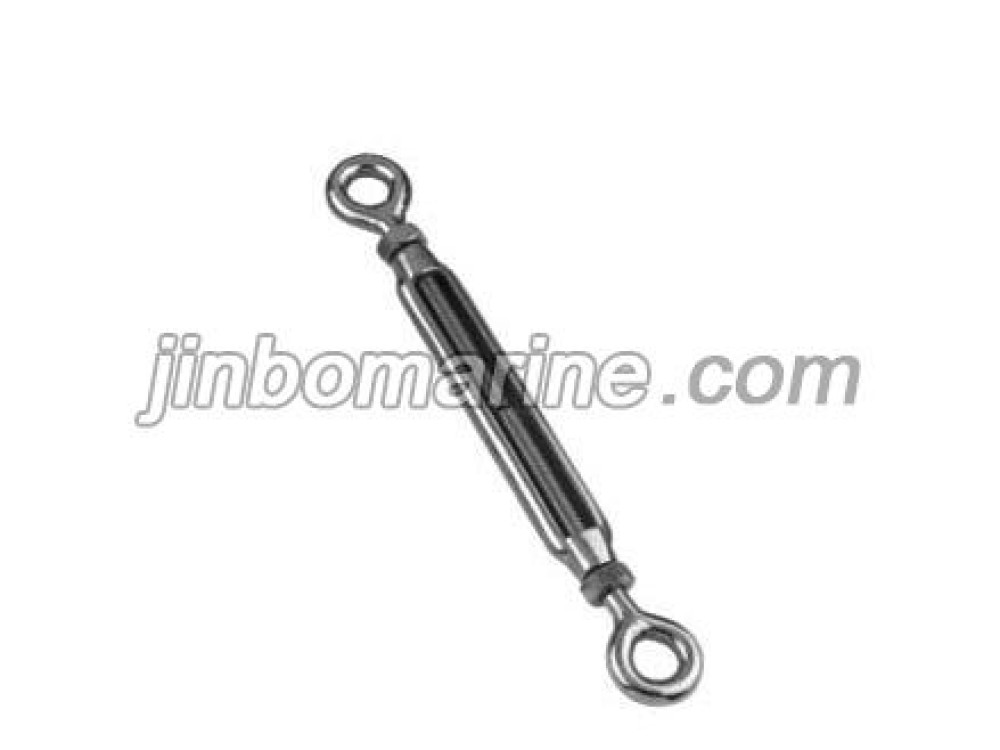

Turnbuckle, Frame Type (Eye & Eye End) SS3.4 OR SS316

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Turnbuckle, Frame Type (Eye & Eye End) SS3.4 OR SS316:

SIZE A
mm 		B
mm 		C
mm 		D
mm 		SWL
kgs 		BL
kgs
M4 105 61 8 M4 119 475
M5 121.5 71 10 M5 170 680
M6 159.4 91 12 M6 375 1500
M8 196.5 121.5 14 M8 575 2300
M10 250 150 16 M10 775 3100
M12 312 200 19 M12 1100 4400
M16 380 244 26 M16 2025 8100
M20 484 295 29 M20 2750 11000
