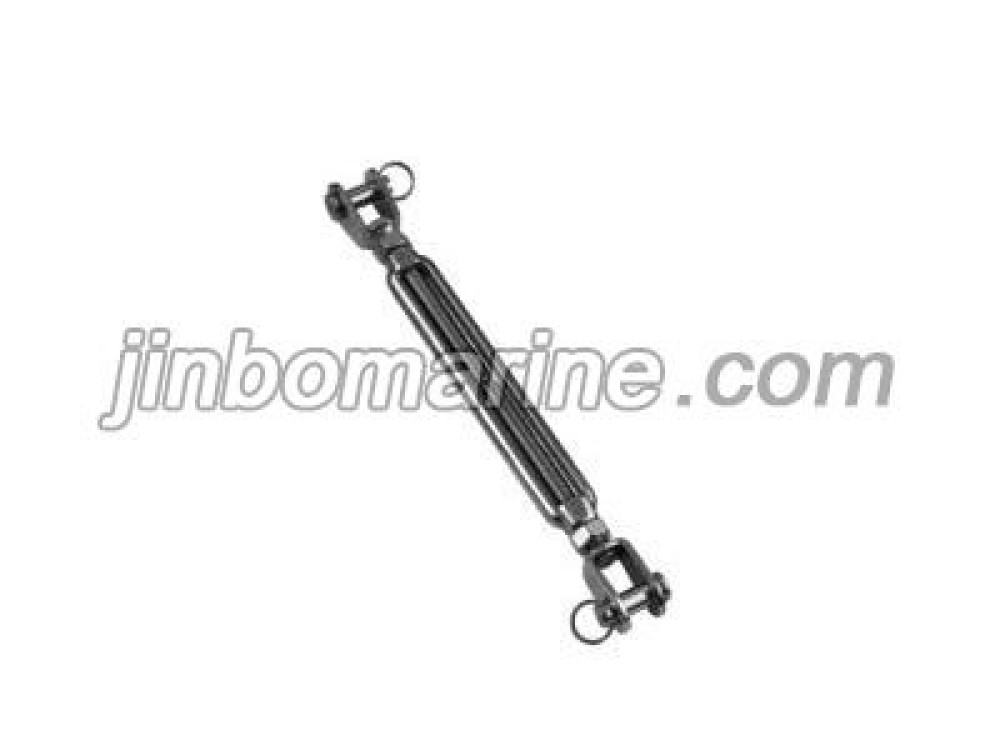

Turnbuckle Frame Type With Nut (Jaw & Jaw), SS304 OR SS316

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

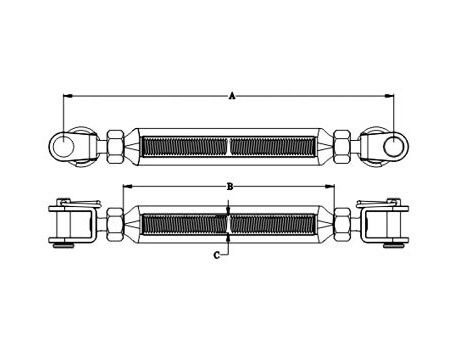

China Turnbuckle Frame Type With Nut (Jaw & Jaw), SS304 OR SS316:

SIZE A
mm 		B
mm 		C
mm 		SWL
kgs 		BL
kgs
M5 125 71 M5 188 750
M6 136 91 M6 350 1400
M8 162 121 M8 550 2200
M10 222 150 M10 863 3450
M12 295 200 M12 1250 5000
M14 345 225 M14 1600 6400
M16 380 244 M16 2000 8000
M20 465 295 M20 2625 10500
