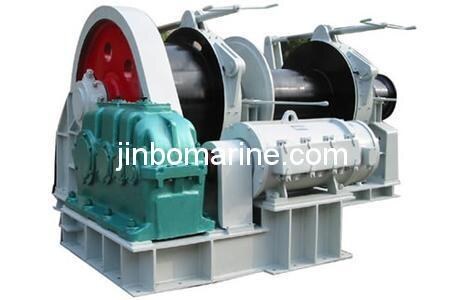

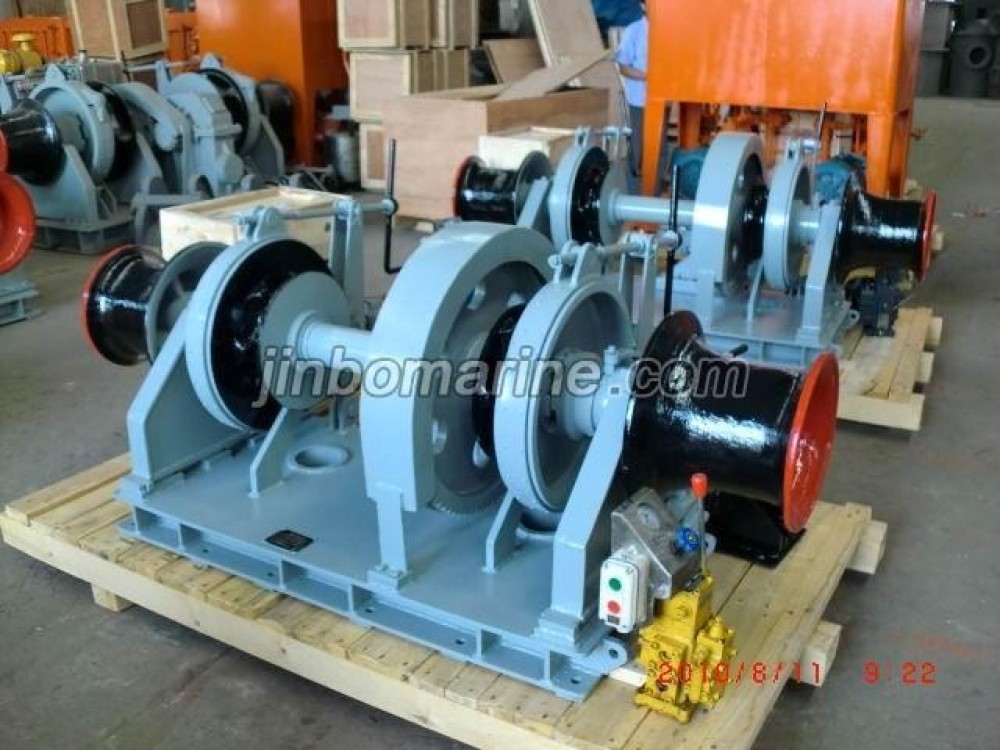

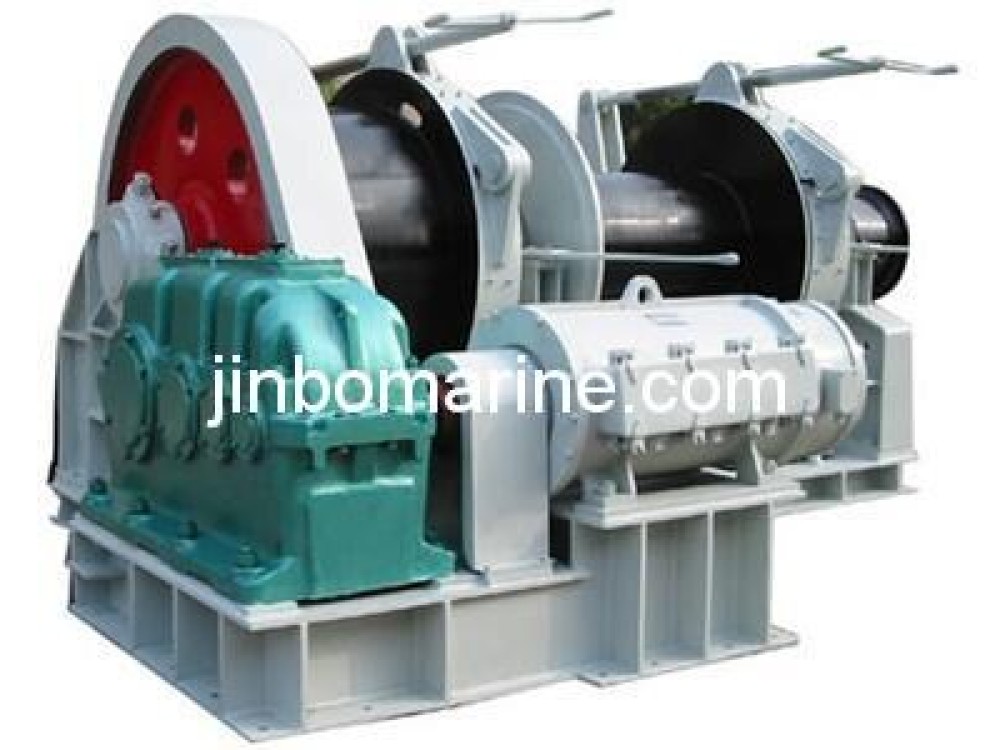

Two-axis Electric Combined Windlass

  • Category:Marine Windlass
  • Material:Cast steel
  • Standards:standard
  • Certificate:CCS，Rina，ABS, BV, GL,
  • Packing Details:Nude Packing
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Two-axis Electric Combined Windlass:

Two-axis Electric Combined Windlass

General description

The combined and capstan are for heaving, launching and mooring, which are in accordance with ISO4568-1986<>. They are driven by hand, electric, hydraulic and diesel engine. The structure types are divided into: systematic double-chain anchor winch (A type);single-chain anchor winch(B type) anchor capstan(E type).

Type illustration

The first letter: D-electric Y-hydraulic S-manual C-diesel engine

The letter M: anchor winch

The third letter: Type A,B,E

Main technical parameter

Type anchor chain diam working load over loading loading support nominal speed Drum load Nominal speed Cable capacity Mooring line load
(mm) AM2 AM3 AM2 AM3 AM2 AM3 m/min Kn m/min m Kn
DMA-46 46 89.9 100.5 139.4 150.8 526 756 9 60/75 15 Φ24x200 50
DMA-48 48 97.9 109.4 146.9 164.1 570 815 9 60/80 15 Φ24x200 50
DMA-50 50 106.3 118.8 159.5 178.2 617 882 9 60/80 15 Φ24x200 50
DMA-52 52 114.9 128.4 172.4 192.6 666 950 9 80/100 15 Φ28x200 60
DMA-54 54 123.9 138.5 185.9 207.8 715 1021 9 80/100 15 Φ28x200 60
DMA-56 56 133.3 149 200 223.5 770 1094 9 80/100 15 Φ28x220 60
DMA-58 58 143 159.8 214.5 239.7 815 1170 9 80/100 15 Φ28x220 60
DMA-60 60 153 171 229.5 256.5 873 1247 9 100/120 15 Φ30x220 80
DMA-62 62 163.4 182.6 245.1 273.9 927 1323 9 100/120 15 Φ30x240 80
DMA-64 64 174.1 194.6 261.2 291.9 986 1409 9 100/120 15 Φ30x240 80
DMA-66 66 185.1 206.9 277.7 310.4 1040 1485 9 120/140 15 Φ32x240 100
DMA-68 68 196.5 219.6 294.8 329.4 1103 1575 9 120/140 15 Φ32x260 100
DMA-70 70 208.3 232.8 312.5 349.2 1161 1661 9 120/140 15 Φ32x260 100
DMA-73 73 226.5 253.1 339.8 379.7 1255 1795 9 135/150 15 Φ34x260 125
DMA-76 76 245.5 274.4 368.3 411.6 1355 1935 9 135/150 15 Φ34x280 125
DMA-78 78 258.6 289 387.9 433.5 1422 2025 9 135/160 15 Φ36x280 125
DMA-81 81 278.8 311.7 418.2 467.5 1521 2196 9 150/180 15 Φ36x300 125
DMA-84 84 300 335.2 450 502.8 1625 2322 9 150/180 15 Φ36x300 125
