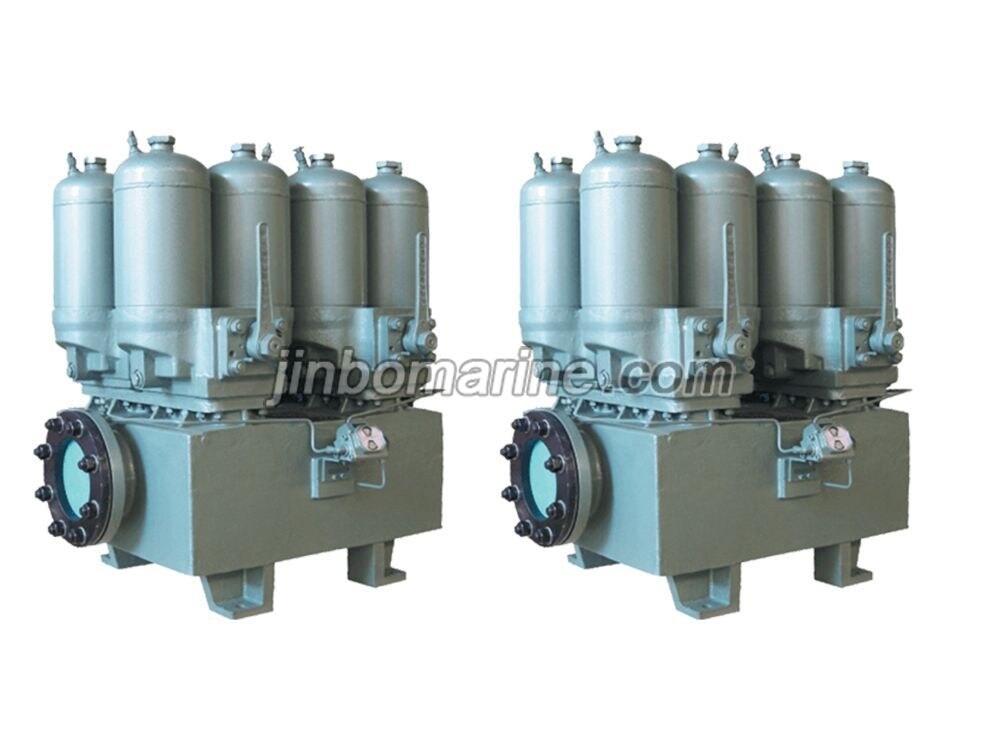

SBL Semi-Automatic Cleaning Filter
Description: SBL semi-automatic cleaning filter is mainly used for fuel oil, lube oil and diesel oil which can filter insoluble oil contaminants to keep the oil clean. Filter e...
SBL Semi-Automatic Cleaning Filter
PDF Datasheet
We can supply according to your requirement.
China SBL Semi-Automatic Cleaning Filter:
Description:
SBL semi-automatic cleaning filter is mainly used for fuel oil, lube oil and diesel oil which can filter insoluble oil contaminants to keep the oil clean.
Filter element type is candle type, the filtration efficiency is high and original pressure is small. It is easy and convenient to clean. The working pressure is 0.6-1.0 Mpa, working temperature≤150°C.
Features:
1.When the filter pressure drop is up to the required value we can just rotate the handle manually for several times. Then we can clean the filter without stopping it
2.Material of filter screen is 1Cr18Ni9Ti.

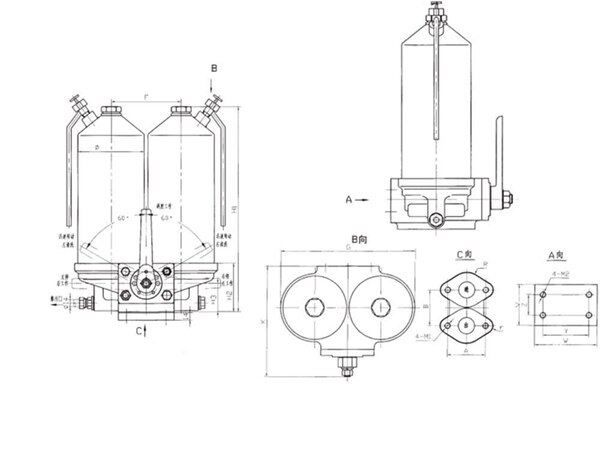

Technical data:
| Type | Flow Rate m3/h (Reference) | Diameter and connection dimension (mm) | Outline dimension (mm) | Mounting Dimension (mm) | Weight (kg) | |||||||||||||||
| DN | A | B | R | r | 4-M1 | H1 | H2 | H3 | F | Φ | G | K | W | V | Y | Z | 4-M2 | |||
| SBL20 | 1-2 | 20 | 62 | 55 | 28 | 11 | M10 | 360 | 77 | 45 | 110 | 98 | 222 | 206 | 100 | 70 | 75 | 35 | M10 | 25 |
| SBL25 | 2-4 | 25 | 30 | |||||||||||||||||
| SBL32A | 4-7 | 32 | 75 | 70 | 35 | 15 | M12 | 385 | 92 | 54 | 130 | 125 | 265 | 226 | 122 | 80 | 90 | 40 | M12 | 47 |
| SBL40 | 7-10 | 40 | 480 | 94 | 52 | 50 | ||||||||||||||
