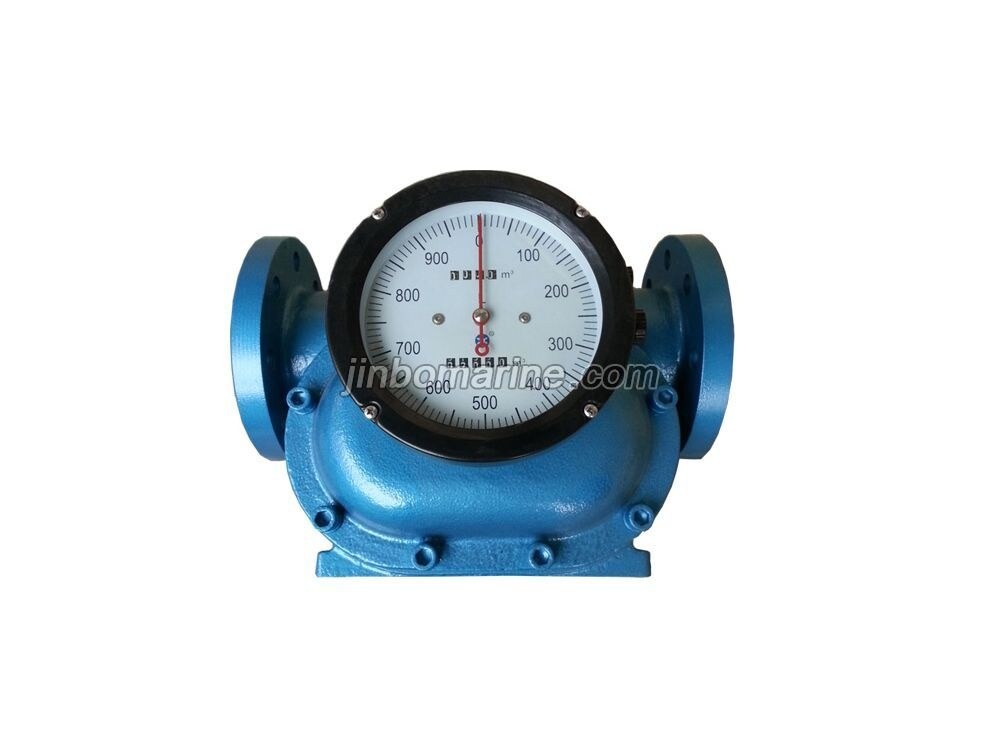

TWS Series Mechanical Three Rotor Flow Meter

Request a Quote Not what you need, please send your RFQs via Email.

Details

China TWS Series Mechanical Three Rotor Flow Meter:

TWS series volumetric flow meter has a simple and effective measurement is designed, by a frame and inside the meter of three rotor rotation is consistent. No metal to metal contact flow box, ruled out any degradation in accuracy, provide long service life. Rotor is inserted in the two bearing plate bearing support, at the end of the each rotor shaft is a timing gear. Then each rotor timing between the rotations will be graduated from the regulator excellent stepless adjustment (wear compensation unit), can be positive and negative calibration of flow meter. Over a wide range of high precision and high repeatability range;High precision constant flow Low maintenance, low wear and long life the pressure loss is small, the real gravity flow meter Measuring accuracy is not affected by temperature, pressure, viscosity changes.

Main Specification

Model TWS-40 TWS-50 TWS-80 TWS-100 TWS-150
Size 40mm / 1.5" 50mm / 2" 80mm / 3" 100mm / 4" 150mm / 6",100mm / 4
Flow Range (L/min) 25~250 38~380 75~750 130~300 225~2250
Volume Per Revolution 0.309L 0.618L 1.839L 5.102L 9.507L
Max. Pressure 10Bar/150PSI
Accuracy ±0.2%
Repeatability ≤0.05%
Standard Measurement Liter
