Type TS Movable Elastic Hanger

Request a Quote Not what you need, please send your RFQs via Email.

Details

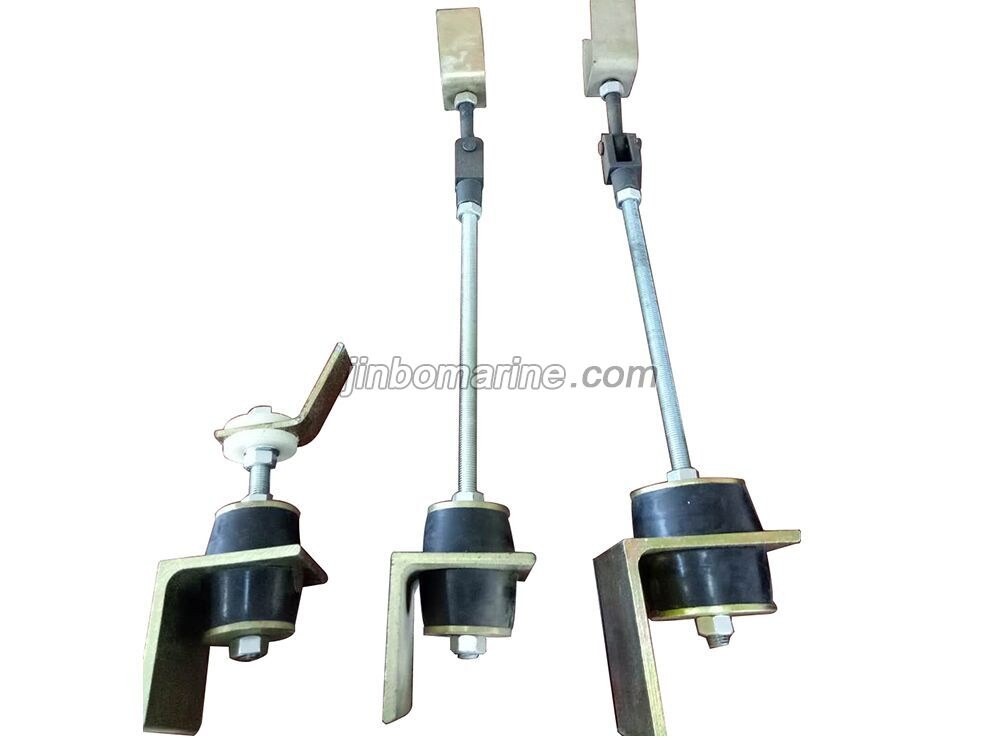

China Type TS Movable Elastic Hanger:

The elastic elements are made by special type rubber, it has fine vibration resistance and impact resistance.
Advantage: High temperature, low temperature resistance, oil resistance and aging resistance.
The hanger adopts active joint, the length can be adjusted, and it can be move freely within the range of exhaust pipe thermal deformation.

Applicable range: suitable for horizontal or vertical exhaust pipe.

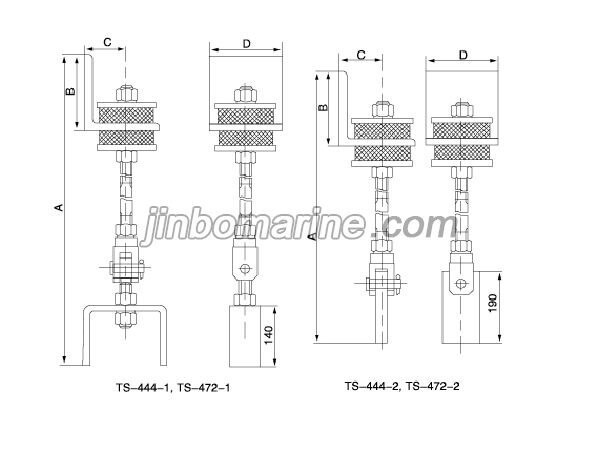

Dimension

Type TS Movable Elastic Hanger Main Specifications

Model Size Static Load Workload
A(mm) B(mm) C(mm) D(mm) kgf kgf
TS-444-1 530-650 125 70 120 800 270
TS-472-1 670-830 160 90 160 1500 500
TS-444-2 470-590 125 70 120 1000 350
TS-472-2 550-710 160 90 160 2000 700
