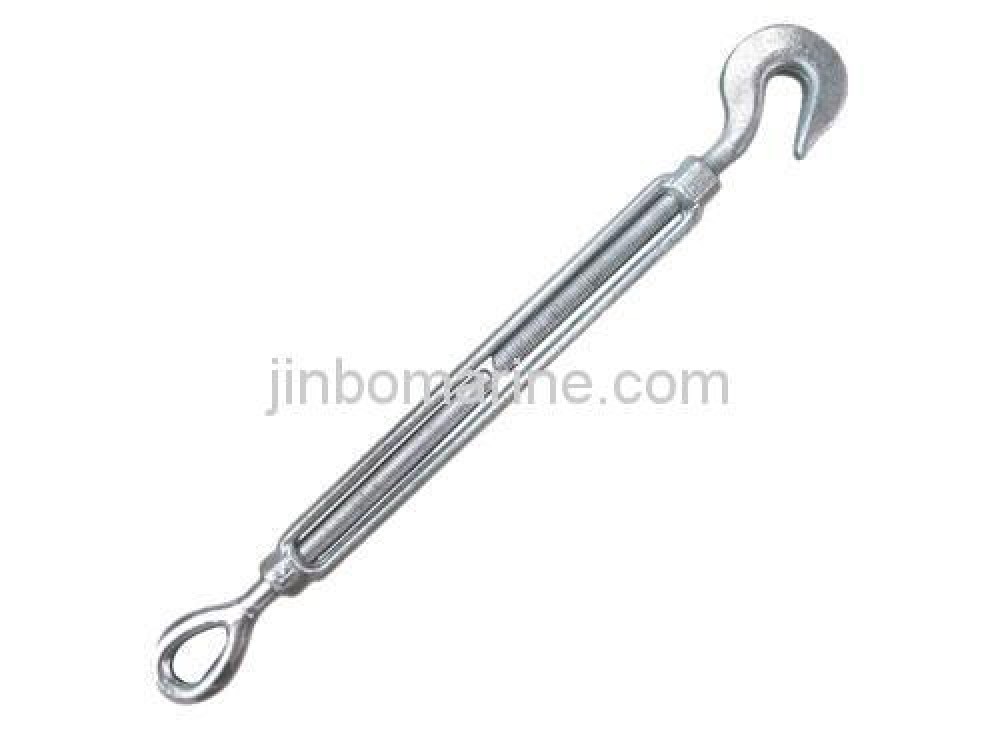

U.S. Type Turnbuckles With Eye And Hook
Main Specification Turnbuckle usually Forged, Free forged and Casting. The surface of turnbuckle original color, galvanised,hot galvanized Material is 45# Steel, Q235 ...
Loading product images...
U.S. Type Turnbuckles With Eye And Hook
PDF Datasheet
We can supply according to your requirement.
Main Specification
Turnbuckle usually Forged, Free forged and Casting.
The surface of turnbuckle original color, galvanised,hot galvanized
Material is 45# Steel, Q235

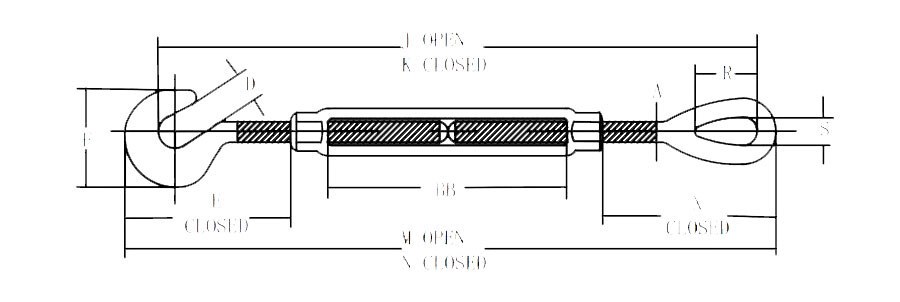

Size Table
| Thread Dia & Take Up | WLL(lbs) | Weight(lbs) | Dimensions(in) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | D | E Closed | F | J Open | K Closed | M Open | N Closed | R | S | X Closed | BB | |||
| 1/4x4 | 400 | 0.31 | 0.25 | 0.44 | 1.67 | 1.27 | 11.66 | 7.66 | 12.29 | 8.29 | 0.81 | 0.34 | 1.76 | 4.07 |
| 5/16x41/2 | 700 | 0.5 | 0.31 | 0.5 | 2 | 1.5 | 13.5 | 9 | 14.28 | 9.78 | 0.95 | 0.44 | 2.2 | 4.58 |
| 3/8x6 | 1000 | 0.79 | 0.38 | 0.56 | 2.28 | 1.76 | 17.09 | 11.09 | 18.04 | 12.04 | 1.13 | 0.53 | 2.48 | 6.1 |
| 1/2x6 | 1500 | 1.8 | 0.5 | 0.65 | 3.53 | 2.28 | 19.57 | 13.57 | 20.79 | 14.79 | 1.41 | 0.71 | 3.56 | 6.03 |
| 1/2x12 | 1500 | 2.7 | 0.5 | 0.65 | 3.51 | 2.28 | 31.86 | 19.86 | 33.08 | 21.08 | 1.41 | 0.71 | 3.54 | 12.36 |
| 5/8x6 | 2250 | 2.98 | 0.63 | 0.9 | 4.24 | 2.81 | 21.11 | 15.11 | 22.61 | 16.61 | 1.8 | 0.88 | 4.35 | 6.03 |
| 5/8x12 | 2250 | 4.35 | 0.63 | 0.9 | 4.23 | 2.81 | 33.45 | 21.45 | 34.95 | 22.95 | 1.8 | 0.88 | 4.34 | 12.39 |
| 3/4x6 | 3000 | 4.21 | 0.75 | 0.98 | 5.07 | 3.33 | 22.61 | 16.61 | 24.45 | 18.45 | 2.09 | 1 | 5.12 | 6.13 |
| 3/4x12 | 3000 | 6.52 | 0.75 | 0.98 | 5.04 | 3.33 | 35.01 | 23.01 | 36.85 | 24.85 | 2.09 | 1 | 5.09 | 12.59 |
| 3/4x18 | 3000 | 8.24 | 0.75 | 0.98 | 5.07 | 3.33 | 47.01 | 29.01 | 48.85 | 30.85 | 2.09 | 1 | 5.12 | 18.53 |
| 7/8x12 | 4000 | 9.34 | 0.88 | 1.13 | 5.82 | 3.78 | 36.11 | 24.11 | 38.23 | 26.23 | 2.38 | 1.25 | 5.79 | 12.16 |
| 1x12 | 5000 | 13.9 | 1 | 1.25 | 6.56 | 4.25 | 37.65 | 25.65 | 40.06 | 28.06 | 3 | 1.43 | 6.5 | 12.18 |
