ULB-3 Type Twin Color Flat Type Glass Level Gauge
- Category:Marine Level Gauge
- Certificate:CCS,GL,LR,BV,ABS,DNV GL,RINA,NK,KR ETC.
- Packing Details:Carton packaging.
- Delivery Time:about 7 to 10 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Description:
It is used to measure liquid level of the tank in ship and other industrial equipment.
Main Technical Specification:
Nominal pressure: 0.2MPa.
Test pressure:0.5MPa.
Application:water or oil flash point higher than 65 centigrade.
Working temperature: 0-80 centigrade
Material:
Self-closing valve-copper alloy
Body-SUS304 or Q235A
Glass plate-Boron silicon glass

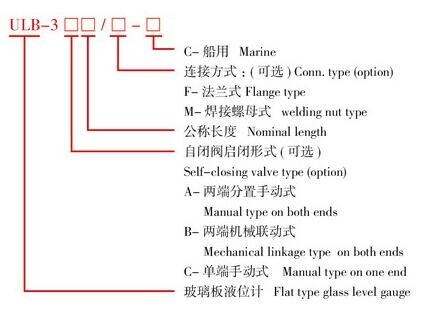

Model Sign:
| Model | Center to center length | Glass plate No. | |
| ULB-3C | ULB-3A | 360mm/650mm/940mm/1230mm | 1~4 |
| ULB-3B | 1520mm/1810mm/2100mm/2390mm/2680mm/2970mm/3260mm/3550mm/3840mm/4130mm/4420mm/4710mm | 5~16 | |
