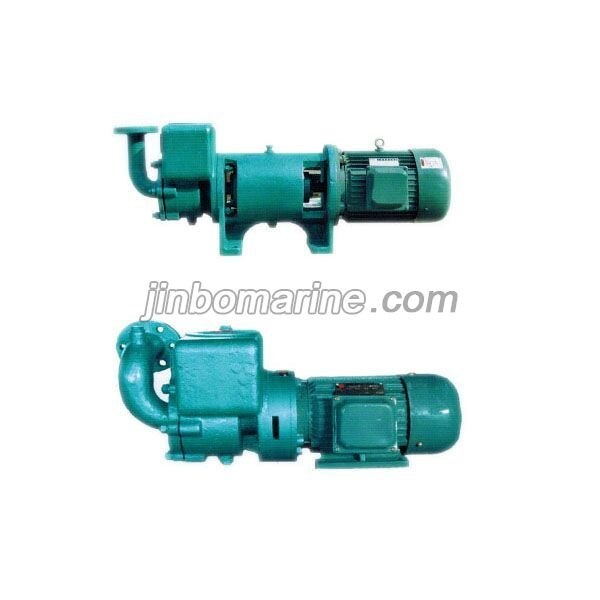

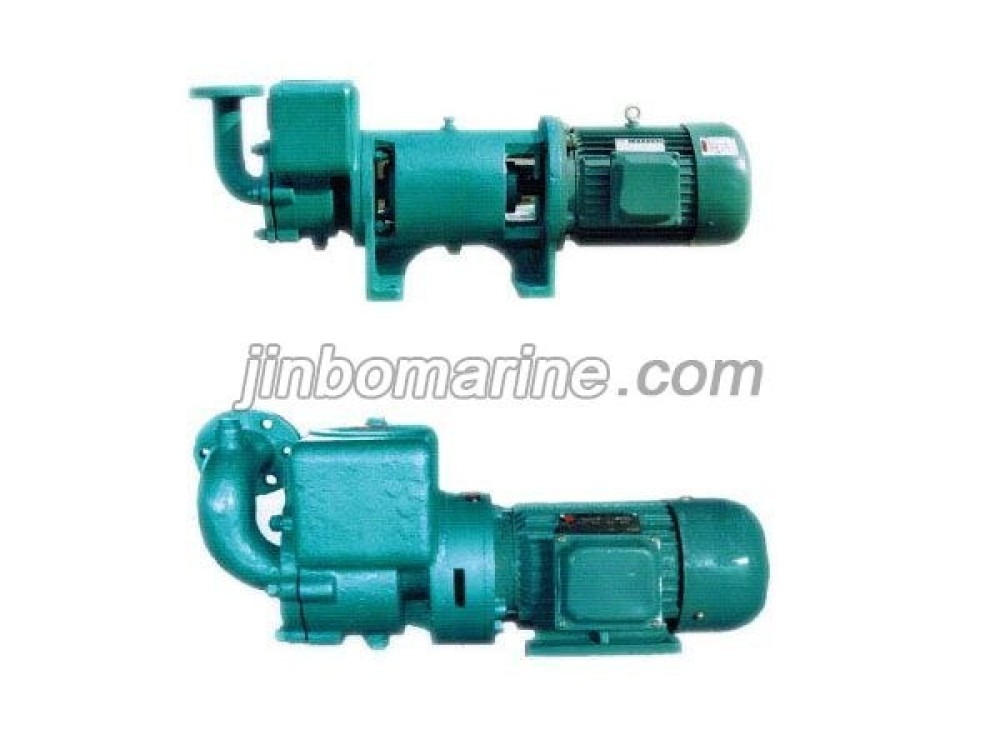

CWX Series Self-suction Centrifugal Whirlpool Pump
CWX series self-suction centrifugal whirlpool pump is supplied for marine in pumping fresh water and sea water for drinking,washing and sanitation. It also be used for boiler feed and...
Loading product images...
CWX Series Self-suction Centrifugal Whirlpool Pump
PDF Datasheet
We can supply according to your requirement.
China CWX Series Self-suction Centrifugal Whirlpool Pump:
CWX series self-suction centrifugal whirlpool pump is supplied for marine in pumping fresh water and sea water for drinking,washing and sanitation. It also be used for boiler feed and water circulate.
| Main Technical Data | ||||
| Model | Flow rate Q（m³/h） | Lift H (m) | Rev speed r/min | Motor power (KW) |
| 1.5CWX-2 | 8 | 21 | 2950 | 1.5 |
| 1.5CWX-2A | 8 | 30 | 2950 | 2.2 |
| 1.5CWX-3 | 8 | 42 | 2950 | 4 |
| 1.5CWX-3A | 12 | 21 | 2950 | 3.2 |
| 1.5CWX-4 | 12 | 30 | 2950 | 3 |
| 1.5CWX-4A | 12 | 42 | 2950 | 4 |
| 2CWX-2 | 21 | 21 | 2950 | 3 |
| 2CWX-2A | 21 | 30 | 2950 | 4 |
| 2CWX-3 | 21 | 42 | 2950 | 5.5 |
| 2CWX-3A | 36 | 21 | 2950 | 4 |
| 2CWX-4 | 36 | 30 | 2950 | 5.5 |
| 2CWX-4A | 36 | 42 | 2950 | 11 |
| 2CWX-5 | 36 | 60 | 2950 | 15 |
| 2CWX-5A | 60 | 21 | 2950 | 7.5 |
| 2.5CWX-2 | 60 | 30 | 2900 | 11 |
| 2.5CWX-2A | 60 | 42 | 2950 | 15 |
| 2.5CWX-3 | 60 | 60 | 2950 | 22 |
| 2.5CWX-3A | 60 | 75 | 2950 | 30 |
| 2.5CWX-4 | 100 | 30 | 2950 | 11 |
| 2.5CWX-4A | 100 | 21 | 2950 | 11 |
| Alao have bigger pumps, pls contact us for more information. | ||||
