BLT083 Universal Hoist Ring

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China BLT083 Universal Hoist Ring:

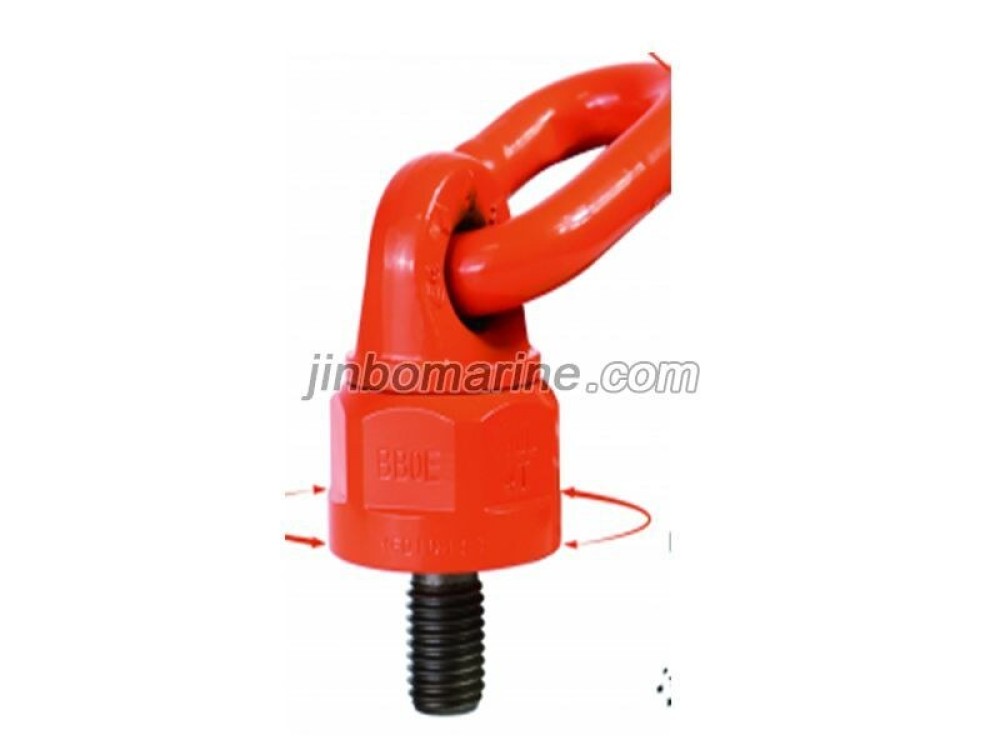

BLT083 Universal Hoist Ring

Metric Thread:

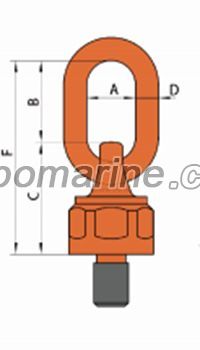

ITEM NO. WLL/T M E A±2 B±3 C D F±3 G K Locking Torque /Nm Kg
BLT083-M22B 2.5 M22x2.5 38.1 40 67 93 20 160 70 64.5 100-170 2.3
BLT083-M24B 4 M24x3.0 38.1 40 67 93 20 160 70 64.5 190-280 2.4
BLT083-M27 4 M27x3.0 38.1 40 67 93 20 160 70 64.5 250-500 2.4
BLTO83-M30S 5 M30x3.5 35 40 67 93 20 160 70 64.5 270-600 2.4
BLT083-M30B 6 M30x3.5 50 51 95 111 22 206 79 74 270-600 3.8
BLT083-M33 7.5 M33x3.5 50 51 95 111 22 206 79 74 270-600 3.8
BLT083-M36 10 M36x4.0 54 51 95 111 22 206 79 74 270-600 3.9
BLT083-M39 10 M39x4.0 58 51 95 111 22 206 79 74 350-800 4
BLT083-M42 13 M42x4.5 63 65 108 22.5 26 230.5 93 85 350-800 5.9
BLT083-M45 13 M45x4.5 68 65 108 22.5 26 230.5 93 85 350-800 6.1
BLT083-M48 14 M48x5.0 68 65 108 122.5 26 230.5 93 85 350-800 6.2
BLT083-M52 20 M52x5.0 84 70 120 158 32 278 105 95 350-900 10
BLT083-M56 20 M56x5.5 84 70 120 158 32 278 105 95 350-900 10
BLT083-M60 20 M60x5.5 90 70 120 158 32 278 105 95 350-900 10.5
BLT083-M64 20 M64x6.0 95 70 120 158 32 278 105 95 500-1000 10.7
BLT083-M72S 25 M72x6.0 108 80 123 210 40 333 158 142 500-1200 25.4
BLT083-M80S 30 M80x6.0 120 80 123 210 40 333 158 142 500-1200 26.5
BLT083-M90S 35 M90x6.0 135 80 123 210 40 333 158 142 500-1500 28.4
BLT083-M100S 35 M100x6.0 135 80 123 210 40 333 158 142 500-1700 30
BLT083-M72B 31.5 M72x6.0 108 90 138 230 48 368 169 155 500-1400 33.8
BLT083-M80B 35 M80x6.0 120 90 138 230 48 368 169 155 500-1500 35
BLT083-M90B 40 M90x6.0 135 90 138 230 48 368 169 155 500-1500 37
BLT083-M100B 40 M100x6.0 135 90 138 230 48 368 169 155 500-1700 38.3
BLT083-M110 50 M110x6.0 108 90 138 230 48 368 169 155 500-1700 40.3
BLT083-M120 50 M120x6.0 120 90 138 230 48 368 169 155 500-1700 42.2
BLT083-M130 50 M130x6.0 135 90 138 230 48 368 198 155 500-1700 46.2
BLT083-M140 50 M140x6.0 135 90 138 230 48 368 198 155 500-1700 48.4
BLT083-M150 50 M150x6.0 135 90 138 230 48 368 198 155 500-1700 50.7
