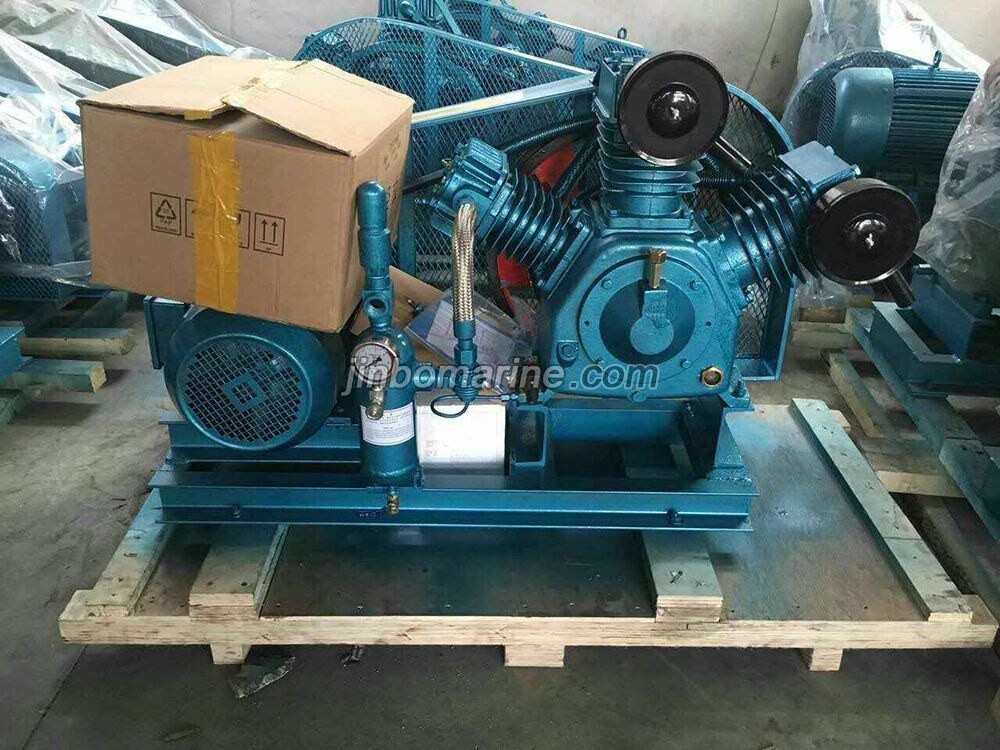

V Type Piston Marine Air Compressor

Request a Quote Not what you need, please send your RFQs via Email.

Details

China V Type Piston Marine Air Compressor:

Type: V type, air cooled, two stage compression piston

Displacement: 27.0~40.0 m3 / h

The rated pressure: 3.0 MPa

Technical Specifications

Model No. Type Discharge Capacity m3/h Discharge Pressure kgf/cm2 Speed r/min Motor Power KW Overall Site (L×W×H) Weight(kg)
KY21-003 V-0.7/30A 42 30 1000 11 1230×630×780 380
KY21-004 V-0.7/30A 42 30 1000 11 1230×630×780 380
KY21-005 V-0.7/30A 42 30 1000 11 1230×630×780 380
KY21-008 V-0.6/25-A 36 25 970 11 1060×750×800 325
KY21-009 V-0.6/30 36 30 970 11 1060×750×800 325
KY21-010 V-0.6/30 36 30 970 11 1060×750×800 325
KY21-011 V-0.6/30A 36 30 900 11 1230×700×780 380
KY21-012 V-0.6/30A 36 30 900 11 1230×700×780 380
KY21-013 V-0.45/30A 27 30 750 7.5 1180×700×890 380
KY21-014 V-0.45/30A 27 30 750 7.5 1180×700×890 380
KY21-015 V-0.5/30A 30 30 800 7.5 1180×700×780 380
KY21-016 V-0.5/30A 30 30 800 7.5 1180×700×780 380
KY23-002 V-0.5/40 30 40 860 11 1230×630×780 420
KY23-003 V-0.5/40 30 40 860 11 1230×630×780 420
KY23-004 V-0.5/40 30 40 860 11 1230×630×780 420
