Vertical Lead Sheave Fairlead
- Category:Marine Fairlead
- Material:Steel plate,Q235,Q345
- Certificate:ABS , BV, CCS, mill certificate etc.
- Standards:Ship use standard.
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Vertical Lead Sheave Fairlead.pdf
Details
China Vertical Lead Sheave Fairlead:
Vertical lead sheave fairlead.vertical fairlead,vertical sheave,sheave fairlead.
Customized service is available, Advanced equipment ,Strong consciousness in controlling quality
Material:steel plate,Q235,Q345 or as per your reqiurement.
Certificate:ABS , BV, DNV , LR , GL , CCS, RINA , mill certificate etc.

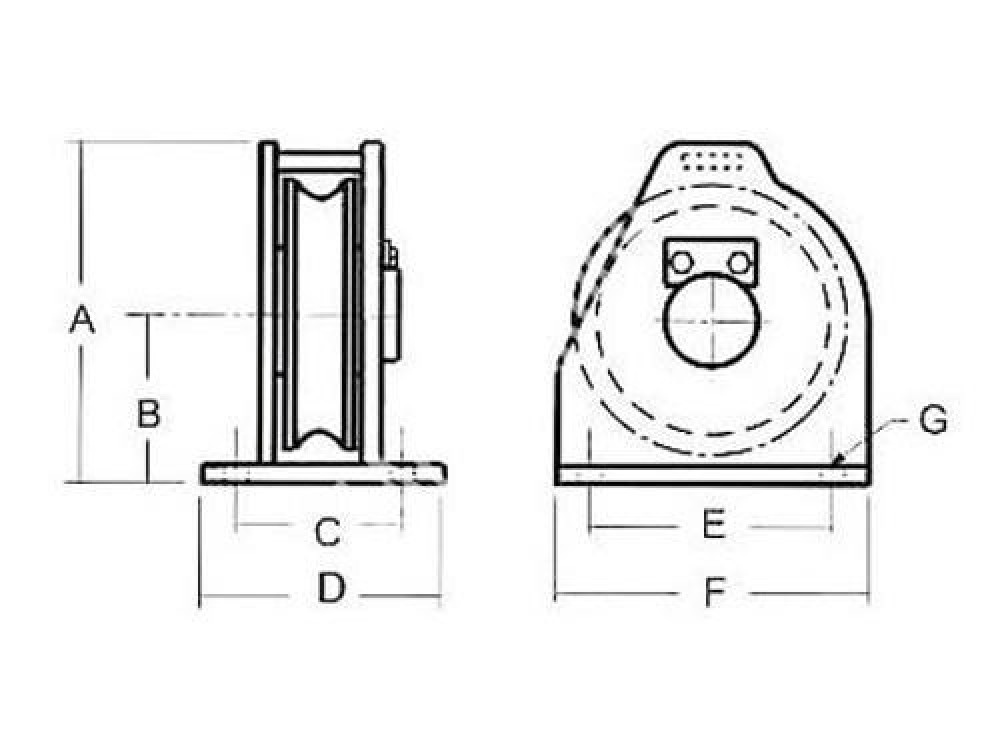

Size chart:
|
Vertical lead sheave |
|||||||||
|
Sheave |
Wire Rope |
SWL(KN) |
A |
B |
C |
D |
E |
F |
G |
|
Dia.(inch) |
Size(inch) |
(inch) |
(inch) |
(inch) |
(inch) |
(inch) |
(inch) |
(inch) |
|
|
6 |
1/2" |
4000 |
7 |
3 1/2 |
3 3/4 |
5 |
5 1/4 |
6 1/2 |
1/2" |
|
8 |
5/8" |
8000 |
9 1/4 |
4 3/4 |
4 1/2 |
6 |
7 1/2 |
9 |
5/8" |
|
10 |
3/4" |
12000 |
11 1/2 |
5 3/4 |
5 1/2 |
7 |
9 1/2 |
11 |
3/4" |
|
12 |
7/8" |
20000 |
15 1/2 |
8 |
6 |
8 |
13 |
15 |
7/8" |
