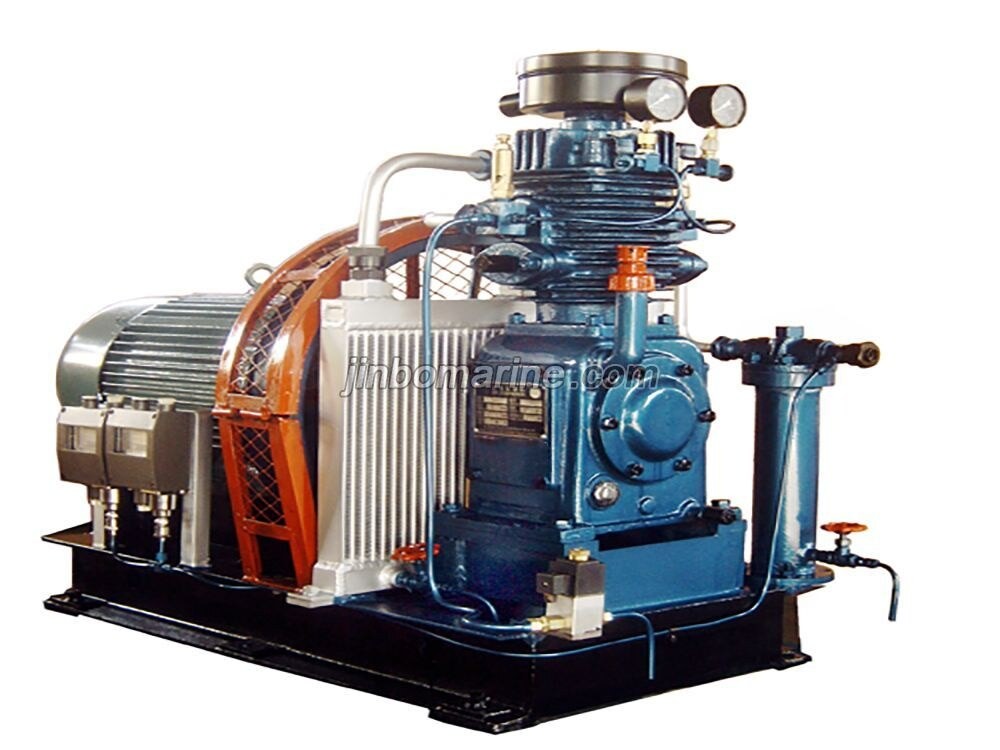

Vertical Type Air Cooled Tanabe Air Compressor LSHC-50A

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Vertical Type Air Cooled Tanabe Air Compressor LSHC-50A:

LSHC-50A air compressor is mainly used in large and medium-sized ship and stationary diesel engine starting, also can be used as other industrial departments and the origin of compressed air pressure test.

Institutional characteristics

1. LSHC-50A air compressor is vertical, air cooled, two stage compression.

2. Compact structure, light weight, small volume, the use of aluminum alloy plate cooler, the cooling effect is good, reliable working in Marine conditions.

The configuration

1.The unit can be direct drive and belt drive, also can be used as diesel engine belt transmission, public base with oil-water separator, pressure controller, electromagnetic valves, unloading can match temperature control device, shock absorber, the vent hose.

2. The unit can match wall-mountable electric cabinet, which can realize the automatic unloading and automatic starting, automatic parking; Motor overload and exhaust temperature alarm and stop.

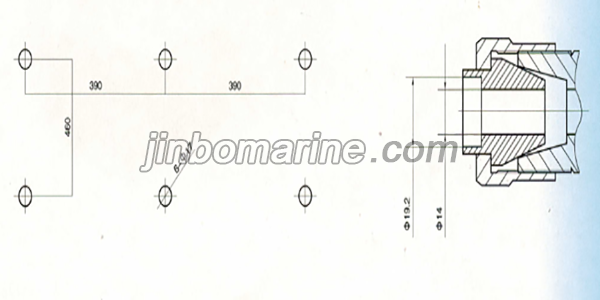

Installation

Specification

Compressor Model LSHC-50A
Type Vertical Air-Cooled 2 stage Compression
Quantity of Air Supply (m3/h) 25 30 36 45
Pressure Rating (MPa) 3
Stalk Power  (kw) 6.4 7 9.8 10.4
Rotation Rating (r/min) 870 960 1170 1460
Quantity of Cooling Water(m3/h) 0.54 0.6 0.72 0.9
Lubricating System Splash Lubrication
Lubricate Trademark L-DAB-100(GB12691)
Type of Unloader Electromagnetic valve of unloading or manual unloading
Method of Driving Direct Coupling
Motor
model Y160L-8-H Y160M-6-H Y160L-6-H Y160M-4-H
Power (kw) 7.5 7.5 11 11
Rotation (r/min) 870 960 1170 1460
Gradeprotection IP44
Ins Class B
Voltage(V) 440 380 440 380
Frequency( HZ) 60 50 60 50
Shape size(mm) 1180×680×900
Weight(kg) 320 340
