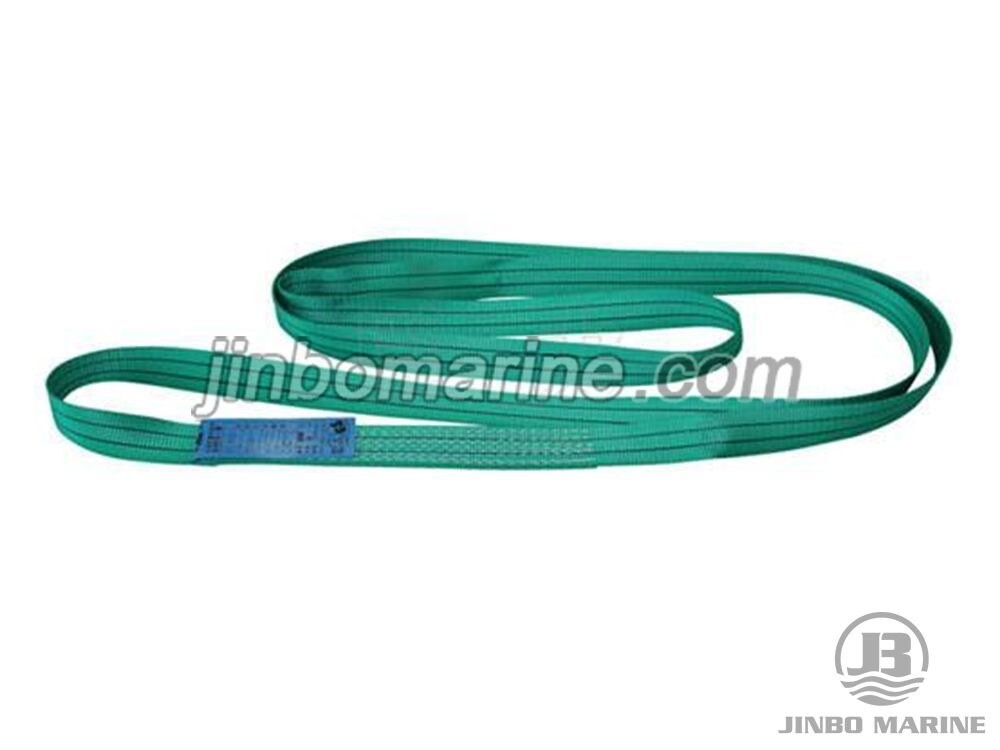

W03 Endless Type Flat Sling

  • Category:Chain Sling
  • Material:Cotton, nylon, synthetic fiber, polyester fiber
  • Standards:JB/T8521.1-2007
  • Certificate:CNAS, API, CCS, DNV.GL, KR, BV, CE, PCT.GOST, JIS, GS

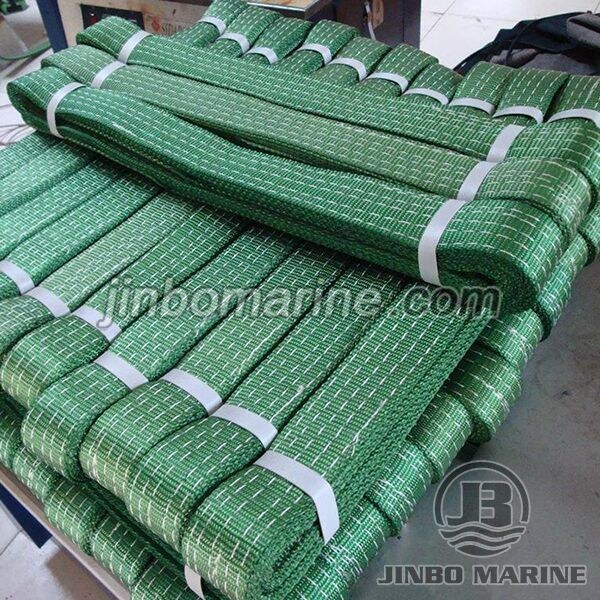

  • Packing Details:Carton and composite pallet
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Characteristic:

(1) light weight, good flexibility, easy to bend, easy to use;

(2) do not damage the appearance of hanging objects, and maintain strong.

(3) safe lifting and high safety factor.

(4) high tensile strength, beautiful color and easy to distinguish.

(5) an insulator.

(6) lifting belt has long service life, good corrosion resistance and wear-resisting function.

(7) It is widely used in aviation, astronautics, nuclear power establishment, military industry, port handling, electric power equipment, machine processing, chemical steel, shipbuilding, transportation and other fields.

Performance:

Strength: flat hoisting belt 1T-30T round hoisting belt 1T-300T
Bandwidth: 25mm-250mm
Elastic elongation: 2%-3% under rated load <10% limit working force
Load identification: In the course of use, the label on the sling can be worn out and the bearing tonnage can be identified by the color of the sling jacket.
Working temperature: -40~100 C safety factor: 5:1 6:1 7:1

Product details:

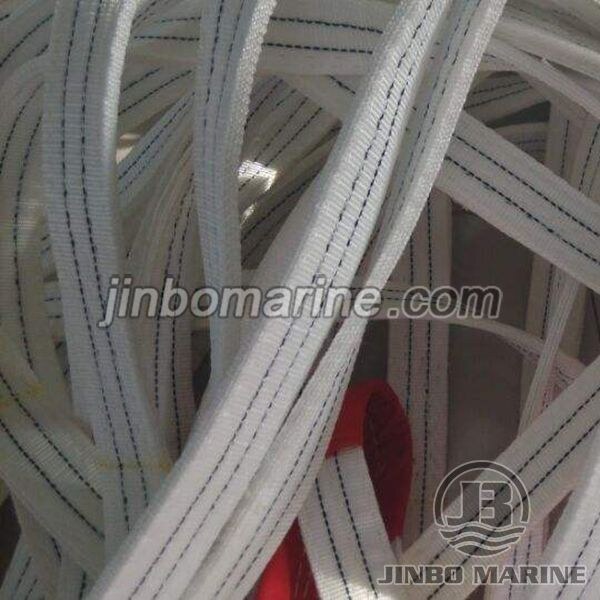

The synthetic fiber sling is a soft sling with excellent performance. It is made of high-quality high-strength low-stretch polyester filament and a new generation of wire rope. Industrialized countries in the world have been widely used for more than 50 years. Does not damage the surface of the hanger (including the paint layer) without any negative damage to the human body.

Generally, slings are difficult to erode and are not electrically conductive. The TA type sling is a woven wearable jacket with a high-strength rope sling (also known as “Universal sling”, one of the most widely used soft slings. The round sling is surrounded by an endless The equally arranged tows form a closed bearing core, and the Tianjin slings are twisted with a single strand of wire. The number of filaments in a row is more than 100,000 weeks, which acts as a load bearing. The synthetic fiber sling is soft and easy to control.

Data Sheet:

Art.No. Working Load Limit Approx Width (mm) Minimum LengthL
(kg) 4、5、6:1 7:1 (m)
W03-01 1000 25 30 0.5
W03-02 2000 50 60 1
W03-03 3000 75 90 1
W03-04 4000 100 120 1.5
W03-05 5000 125 150 1.5
W03-06 6000 150 180 1.5
W03-08 8000 200 240 2
W03-10 10000 250 300 2
W03-12 12000 300 300 2
