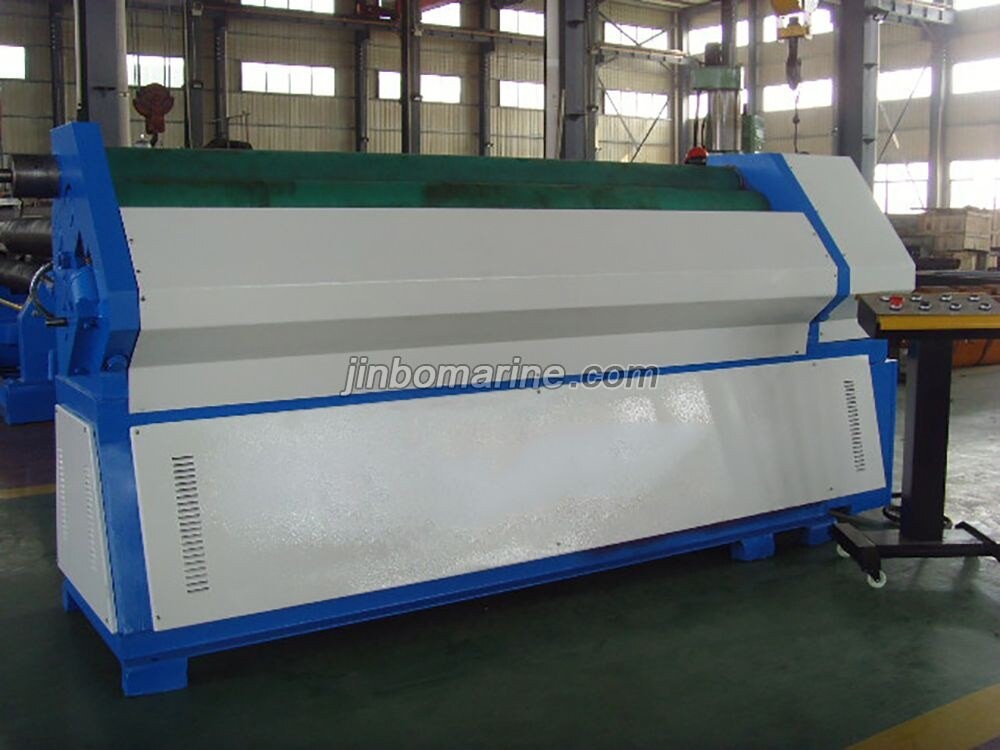

W11F Asymmetrical Plate Rolling Machine
The structure of the machine is three and non-symmetrical, the main transmission roller, roller vertical movement, so that the clamping plate, and the roller gear and the upper roller gear, at the same time as the main transmission; side roller tilt lifting movement, with pre-bending and rolling double function. Compact structure, easy operation and maintenance.
W11F Asymmetrical Plate Rolling Machine Technical Specifications
| Type | Max. | Max. | Yield | Rolling | Min. | Upper | Down | Side | Main power |
| Thickness | Bending | limit | speed | Bending | roller | roller | roller | ||
| width | diameter | diameter | Diameter | Diameter | |||||
| (mm) | (mm) | Mpa | (mm) | (mm) | (mm) | (mm) | （Kw） | ||
| W11F-2X1000 | 2 | 1000 | 245 | 6 | 250 | 120 | 120 | 120 | 2.2 |
| W11F-2X1200 | 2 | 1200 | 245 | 6.1 | 250 | 120 | 120 | 120 | 2.2 |
| W11F-2X1500 | 2 | 1500 | 245 | 6 | 250 | 130 | 130 | 130 | 2.2 |
| W11F-2X2000 | 2 | 2000 | 245 | 6.1 | 250 | 130 | 130 | 130 | 2.2 |
| W11F-4X1000 | 4 | 1000 | 245 | 5.4 | 300 | 140 | 140 | 140 | 3 |
| W11F-4X1200 | 4 | 1200 | 245 | 5.4 | 300 | 140 | 140 | 140 | 3 |
| W11F-4X2000 | 4 | 2000 | 245 | 5.4 | 350 | 150 | 150 | 150 | 3 |
| W11F-6X1000 | 6 | 1000 | 245 | 5.4 | 350 | 140 | 140 | 140 | 3 |
| W11F-6X1500 | 6 | 1500 | 245 | 5.4 | 400 | 150 | 150 | 150 | 4 |
| W11F-6X2000 | 6 | 2000 | 245 | 5.4 | 400 | 160 | 160 | 160 | 5.5 |
