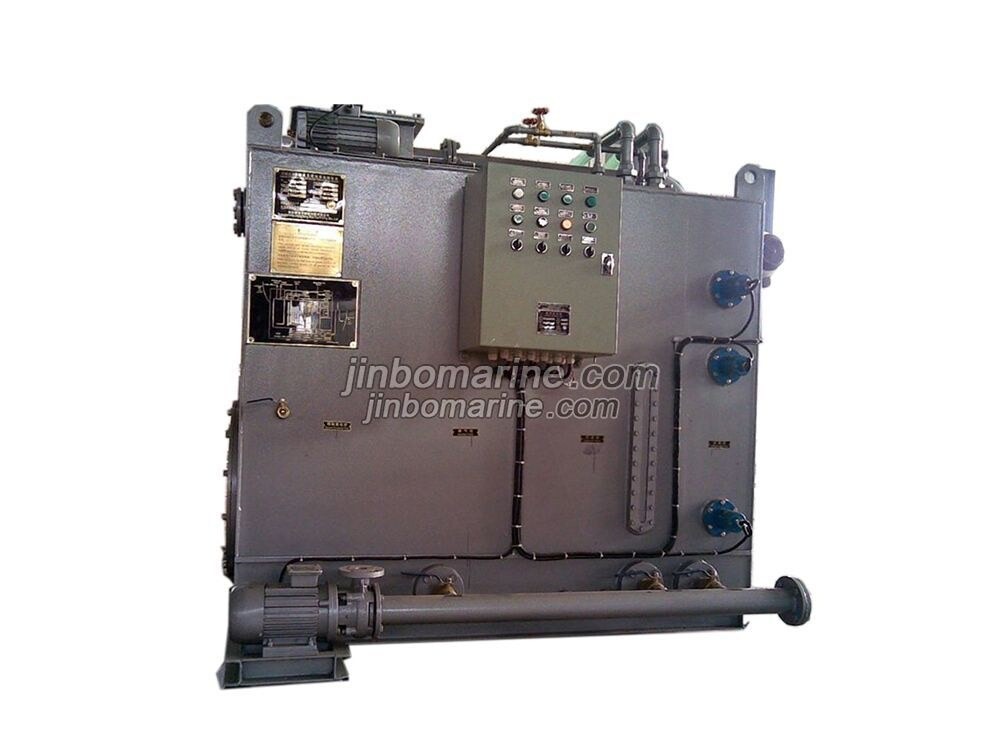

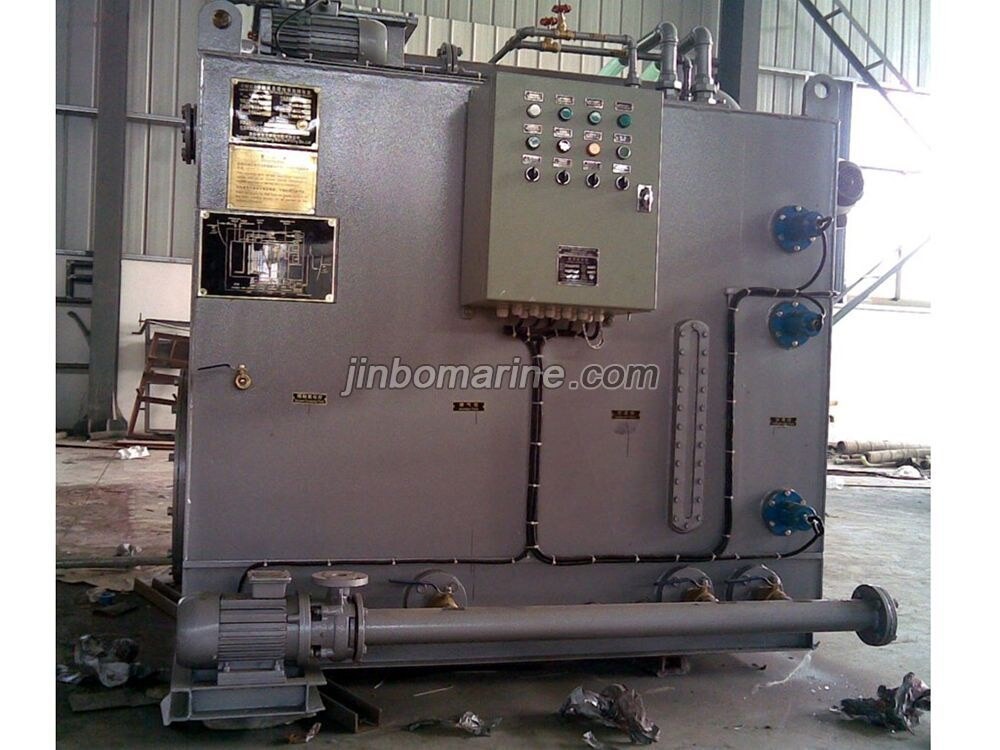

WCMBR-10 sewage treatment device
- Category:Sewage Treatment Plant
- Certificate:CCS,GL,BV etc.
- Standards:IMO Resolution MEPC.227(64).
- Packing Details:Wooden box
- Delivery Time:45days
- Supply Ability:10 sets/month
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Product Description:
This STP can meet IMO Resolution MEPC.227(64).
The regulation specifies the requirements of constitution, main function, design, manufacture, test and delivery for WCMBR-10 type Sewage Treatment Plant (hereinafter to be referred as SWCB-10 type Device).
Main technical characteristic:
1. Model: WCMBR-10 Type
2. Quantity: 1 set/vessel
3. Capacity: Rated capacity: 10persons
4. Max capacity: 12persons
5. Emission index: BOD5 equal or smaller than50mg/l, SS equal or smaller than50mg/l, Coliform group equal or smaller than250/100ml, PH =6~9
6. Voltage: 400V/ 50Hz /3Φ
7. Power: 1.5KW
2.8 Outline dimension: L×W×H=1300×1170×1380mm
2.9 Dry weight/wet wight: 1050/2210 kg
Equipment list:
1. Complete machine is provided with SWCB-10 type device one set, the main components include:
|
No. |
Name |
Model |
Amount |
Remarks |
|
1 |
The device base |
321DF-10-01 |
1set |
Material: Q235-B |
|
2 |
Main body |
321DF-10-02 |
1set |
Material: Q235-B |
|
3 |
Cutting pump |
0.5CWF-8 |
1set |
Marine electric machine |
|
4 |
Electric control box |
321DF-1-00YL |
1set |
The main components select Schneider product |
|
5 |
Air pump |
CYBW-10 |
1set |
Marine electric machine |
|
6 |
Dosing pump |
|
1set |
|
|
7 |
Piping accessory of device |
|
1set |
|
