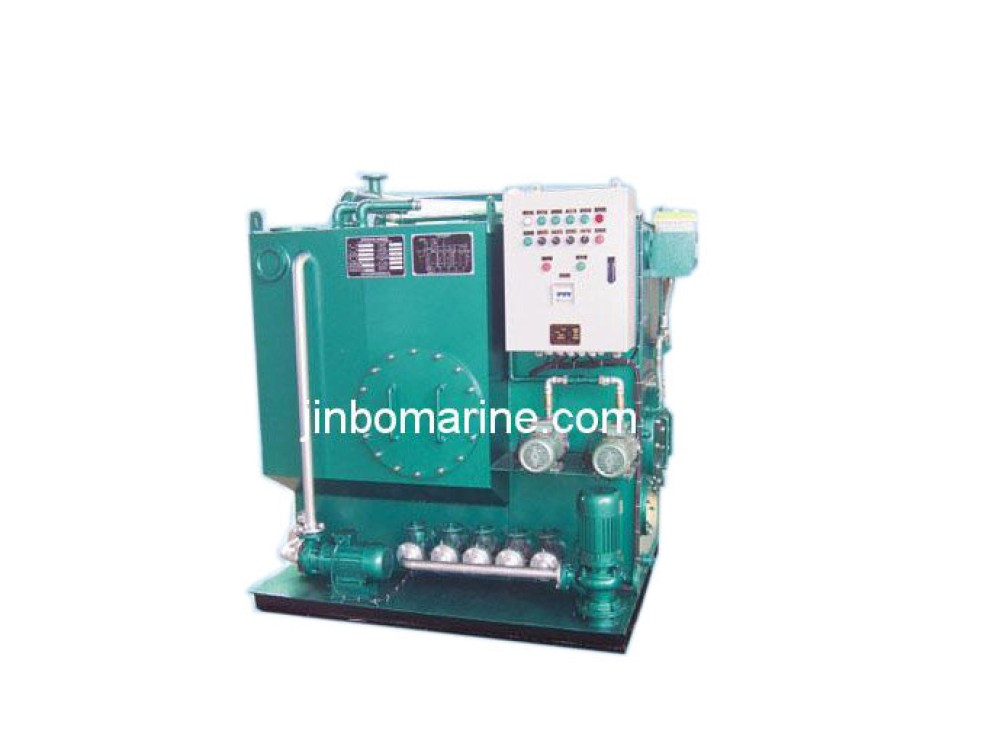

WFCB Series Domestic Sewage Biochemical Treatment Plant
- Category:Sewage Treatment Plant
- Standards:IMO MEPC. 2(VI).
- Certificate:CCS BV GL DNV
- Material:Carbon Steel
- Packing Details:Standard Packaging
- Supply Ability:10 sets/month
- Delivery Time:30days
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Wfcb Series Domestic Sewage Biochemical Treatment Plant 1.pdf
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China WFCB Series Domestic Sewage Biochemical Treatment Plant:
|
Model parameter |
WFCB10 | WFCB20 | WFCB30 | WFCB40 | WFCB50 | WFCB60 | WFCB80 | WFCB100 | WFCB150 | WFCB200 | WFCB250 | WFCB300 | |
| Number of adaptation | 10 | 20 | 30 | 40 | 50 | 60 | 80 | 100 | 150 | 200 | 250 | 300 | |
|
Processing Load |
Average l/p | 810 | 1540 | 2240 | 3080 | 3780 | 4480 | 5880 | 7410 | 10920 | 14640 | 18240 | 21700 |
| peak l/h | 105 | 193 | 280 | 385 | 470 | 560 | 735 | 928 | 1366 | 1830 | 2280 | 2712 | |
|
organic
load BOD5/d(KG) |
0.42 | 0.77 | 1.12 | 1.54 | 1.89 | 2.24 | 2.94 | 3.71 | 5.46 | 7.35 | 9.1 | 10.9 | |
|
Crushing pump |
model | 0.5CWF-10 | 1CWF-11 | 2CWF-11 | 3CWF-10 | ||||||||
| capacitym3/h | 5 | 10 | 20 | 30 | |||||||||
| lift m | 10 | 11 | 11 | 10 | |||||||||
| speed r/min | 2840 | 2840 | 2840 | 2890 | |||||||||
| motor power kw | 0.75 | 1.5 | 2.2 | 4 | |||||||||
|
Air pump |
model | CYBW-10 | CYBW-20 | CYBW-40 | CYBW-60 | ||||||||
| exhoust m3/h | 10 | 20 | 25 | 60 | |||||||||
| pressure kpa | 60 | 60 | 60 | 60 | |||||||||
| speed r/min | 400 | 400 | 400 | 400 | |||||||||
| motor power kw | 0.37 | 0.75 | 1.1 | 2.2 | |||||||||
|
Discharge pump |
model | 25CGW-10-15 | 32CGW-15-20 | 40CGW-15-30 | 40CGW-15-30 | ||||||||
| capacitym3/h | 10 | 15 | 15 | 15 | |||||||||
| lift m | 15 | 20 | 30 | 30 | |||||||||
| speed r/min | 2840 | 2840 | 2840 | 2840 | |||||||||
| motor power kw | 1.1 | 1.5 | 2.2 | 2.2 | |||||||||
|
discharge
caliber mm |
25 | 32 | 40 | 40 | |||||||||
| Motor type | 3-phase AC380V/50Hz | ||||||||||||
| Control mode | Automatic and Manual | ||||||||||||
| Chemical consumption kg/d | 0.01 | 0.03 | 0.04 | 0.05 | 0.06 | 0.07 | 0.09 | 0.11 | 0.18 | 0.22 | 0.28 | 0.33 | |
| Quality of effluent | SS≯50mg/L BOD≯50mg/L Coliform≯250pc/L Phvalue 6-9 | ||||||||||||
| Weight | Dry(T) | 0.85 | 1.1 | 1.34 | 1.5 | 1.65 | 1.9 | 2.45 | 3.1 | 5.1 | 6.4 | 7.4 | 8.4 |
| Wet(T) | 1.85 | 3.15 | 3.85 | 5.3 | 6.4 | 7.65 | 8.8 | 10.2 | 15.4 | 21.1 | 27.6 | 36.2 | |
| Dimension L*W*H(mm) |
1150 *1100 *1450 |
1500 *1200 *1760 |
1650 *1580 *1760 |
2000 *1680 *1870 |
2400 *1800 *1900 |
2550 *1950 *1900 |
2950 *2050 *1900 |
3300 *2050 *1900 |
3500 *2500 *2200 |
4300 *2700 *2200 |
4490 *2900 *2400 |
4900 *3150 *2400 |
|
The plant is applicable to treat the sewage from the onboard ship toilets to meet international standards of discharge.
The plant adopts biomembrane contact oxidation method and sterilizing principle to digest organic pollutant.This plant has suitable dimension,compact structure and light weight,flexible starting and running.
The discharge water after treatment fullfil discharge standard requirement of international sea environment protection committee IMO MEPC. 2(VI).
As strong corrosion resistance,it can use seawater to flush sewage in toilets.
