Wire Eye Bolt With Double Washer And Nut, SS304OR SS316, CSLS04

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Wire Eye Bolt With Double Washer And Nut, SS304OR SS316, CSLS04:

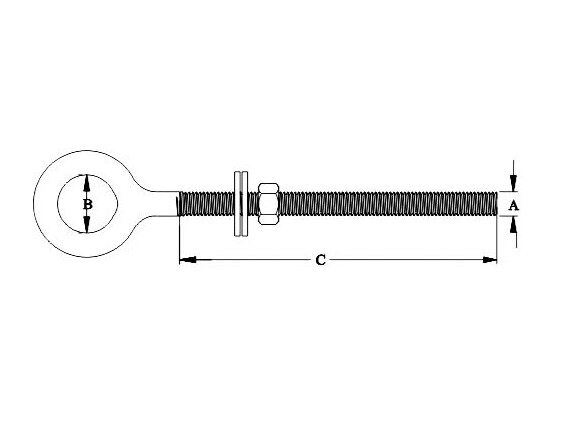

SIZE A
mm
B
mm
C
mm
SWL
kgs
BL
kgs
M6x40 M6 13 40 250 1000
M6x60 M6 13 60 250 1000
M6x80 M6 13 80 250 1000
M6x100 M6 13 100 250 1000
M8x60 M8 17 60 450 1800
M8x80 M8 17 80 450 1800
M8x100 M8 17 100 600 2400
M10x60 M10 21 60 600 2400
M10x80 M10 21 80 600 2400
M10x100 M10 21 100 875 3500
M12x80 M12 25 80 875 3500
M12x100 M12 25 100 875 3500
M12x 120 M12 25 120 875 3500
M12x 150 M12 25 150 875 3500
