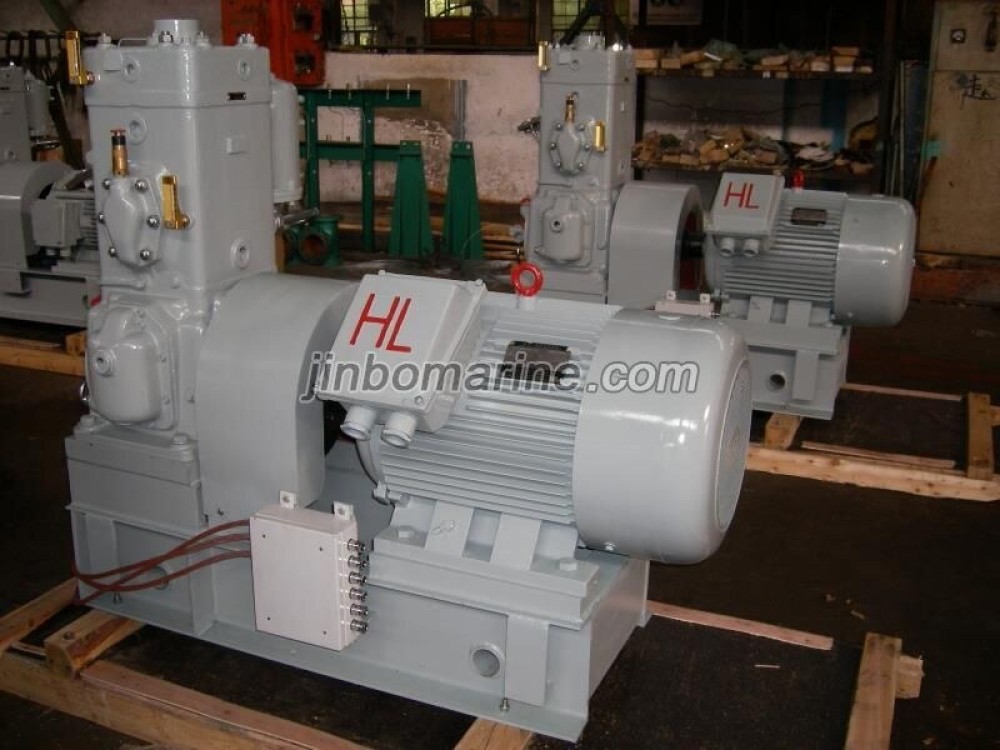

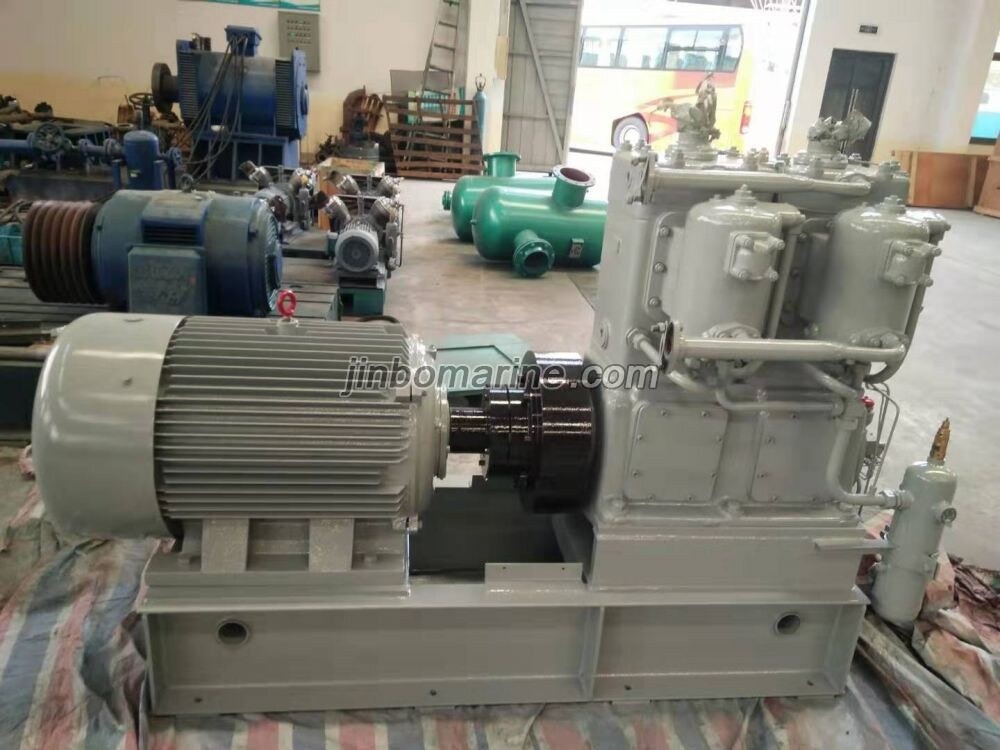

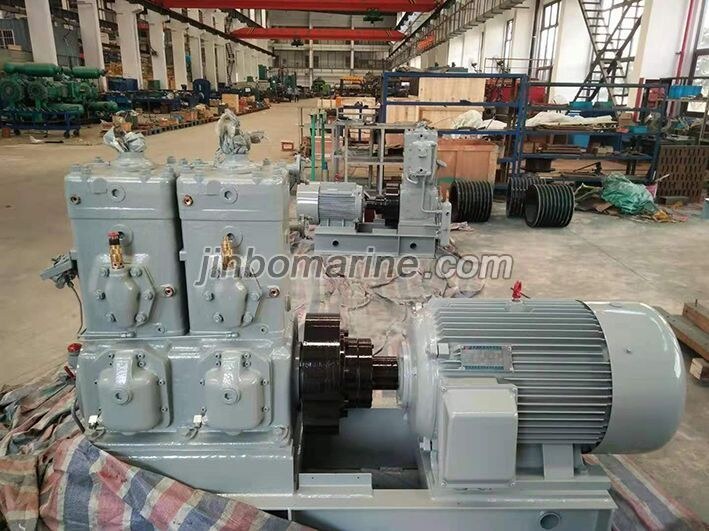

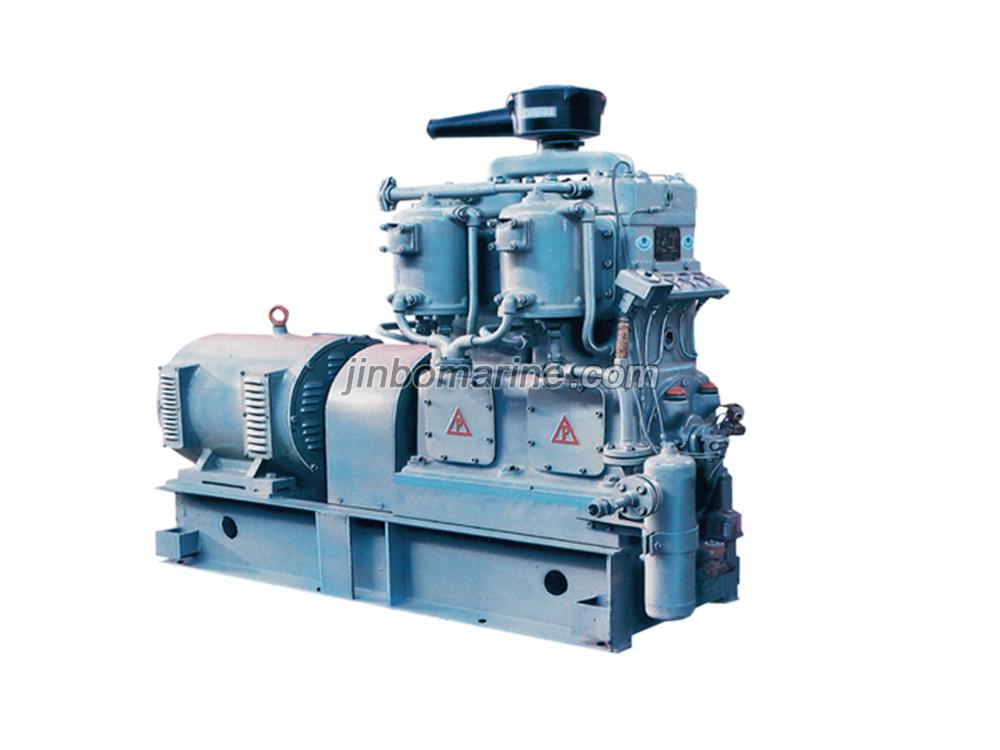

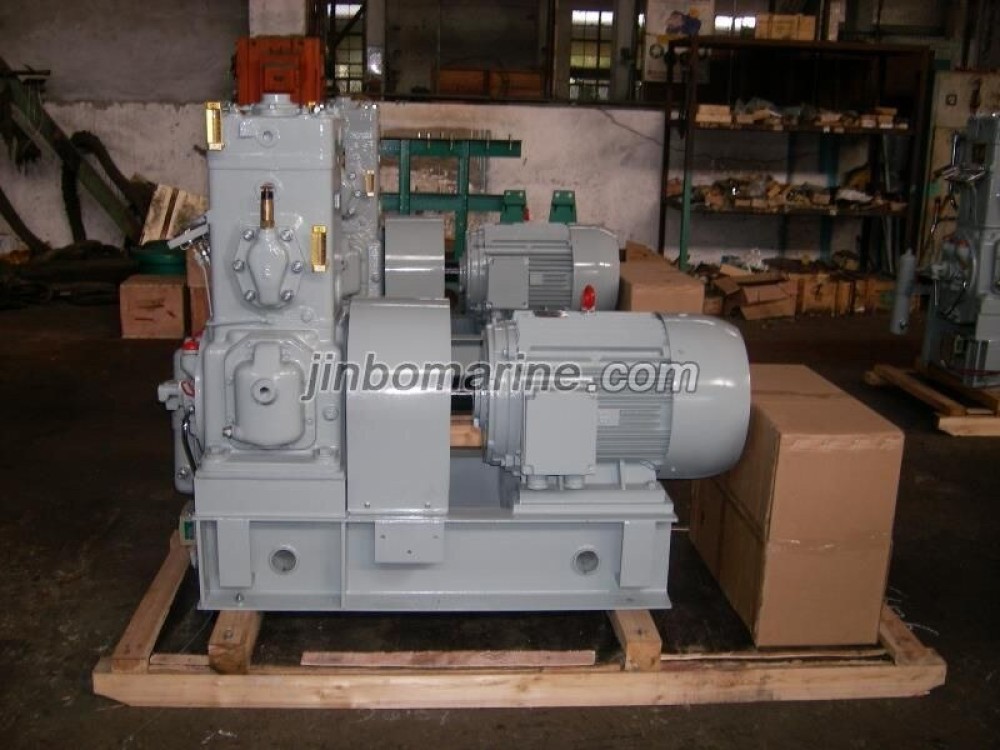

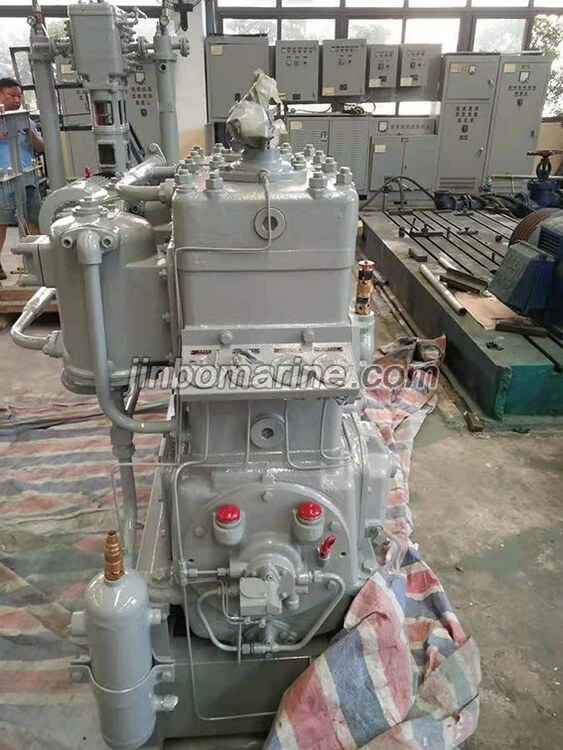

WP270 Large Capacity Water Cooled Marine Air Compressor
- Category:Medium Pressure Water Cooled Marine Air Compressor
- Certificate:CCS, GL, LR, BV, DNV, ABS, NK, KR, RMRS, RINA
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Design Particulars:
Max Pressure 3.5Mpa
Suitable for both seawater and freswater
Reliable Pressure oil lubrication
Ensure safety operations by several monitoring devices
Performance data with 5% tolerance
Standard voltage and frequency: 380V/50HZ, 440V/60HZ
Technical Data:
| Model |
Pressure (MPa) |
Stages |
Speed/rpm （50Hz） |
Speed/rpm （60Hz） |
Capacity (m3/h) |
Power required (KW) |
Power of motor (KW) |
Cooling water required (L/min） |
Dimension (LxWxH) |
| WP60 | 3 | 2 | 870 | 50 | 10 | 11 | 15 | 1282*600*1120 | |
| 970 | 54 | 13 | 15 | 16 | |||||
| 1170 | 68 | 14.5 | 15 | 19 | |||||
| 1450 | 84 | 18 | 18.5 | 24 | |||||
| WP110 | 3.0 | 2 | 870 | 81 | 18 | 18.5 | 25 | 1425*840*1370 | |
| 970 | 91 | 20 | 22 | 27 | |||||
| 1170 | 110 | 24 | 30 | 33 | |||||
| 1450 | 100 | 17 | 18.5 | 35 | |||||
| NWP180 | 3.0 | 2 | 870 | 120 | 21 | 22 | 40 | 1600*740*1220 | |
| 970 | 160 | 26 | 30 | 50 | |||||
| 1170 | 180 | 31 | 37 | 60 | |||||
| WP135 | 3.0 | 2 | 870 | 106 | 21 | 22 | 29 | 1425*840*1370 | |
| 970 | 118 | 23.5 | 30 | 32 | |||||
| 1170 | 142 | 28.5 | 30 | 39 | |||||
| WP160 | 3.0 | 2 | 870 | 126 | 24.5 | 30 | 34 | 1425*840*1370 | |
| 970 | 141 | 28 | 30 | 39 | |||||
| 1170 | 170 | 34 | 37 | 47 | |||||
| WP185 | 3.0 | 2 | 870 | 145 | 28 | 30 | 39 | 1425*840*1370 | |
| 970 | 162 | 31.5 | 37 | 44 | |||||
| 1170 | 195 | 39 | 45 | 54 | |||||
| WP220 | 3.0 | 2 | 870 | 174 | 38.5 | 45 | 54 | 1975*950*1568 | |
| 970 | 191 | 41 | 45 | 56 | |||||
| 1170 | 230 | 48.5 | 55 | 68 | |||||
| WP270 | 3.0 | 2 | 870 | 223 | 42.5 | 45 | 59 | 1975*950*1568 | |
| 970 | 248 | 47 | 55 | 66 | |||||
| 1170 | 300 | 57 | 75 | 79 | |||||
| WP320 | 3.0 | 2 | 870 | 264 | 50.5 | 55 | 68 | 1975*950*1568 | |
| 970 | 294 | 56.5 | 75 | 76 | |||||
| 1170 | 355 | 68 | 75 | 92 | |||||
| WP370 | 3.0 | 2 | 870 | 308 | 57.5 | 75 | 80 | 1975*950*1568 | |
| 970 | 344 | 65 | 75 | 90 | |||||
| 1170 | 415 | 78 | 90 | 108 | |||||
| WP2001 | 3.0 | 2 | 970 | 110 | 21 | 22 | 56 | ||
| 1170 | 135 | 25 | 30 | 66 | |||||
| 1470 | 165 | 31 | 37 | 80 | |||||
| WP2401 | 3.0 | 2 | 970 | 130 | 25 | 30 | 66 | 1500*1000*900 | |
| 1170 | 160 | 31 | 37 | 80 | |||||
| 1470 | 200 | 38 | 45 | 100 |
