WQ Series Marine Submersible pump

  • Category:Sewage Pump
  • Material:cast iron
  • Standards:standard
  • Packing Details:Standard Packing
  • Delivery Time:7 days
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

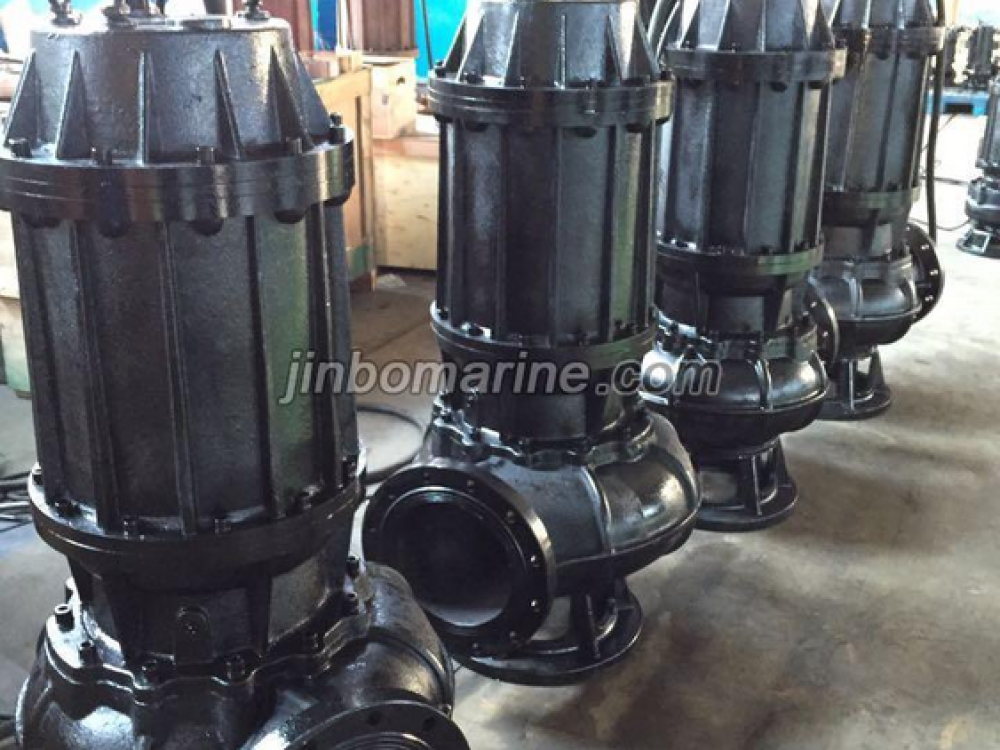

WQ Series Submersible Pump

General description

WQ series submersible sewage pump is mainly used for municipal works, industrial buildings, hotels, hospitals, civil air defence, mines etc. Trades to drain off the sewage, waste water, rainwater and living water in cities containing solid grains and various long fabrics.

Model Explaination

50WQ15-8-0.75

50mm: Outlet diameter

WQ: Submersible sewage pump

15: Capacity 15m3/h

8: Head 8m

0.75: Power of the motor 0.75kw

Condition of use

1.The Medium temperature should not over 40 degree, the density 1200kg/m3 and the PH within 5-9

2.Rated voltage 380v, 50hz. the motor can run successfully only under the condition the deviation of both rated voltage and frequency are not over 5%.

3.The maximum diameter of the solid grain going through the pump has not to be larger than 50% of that of the pump outlet.

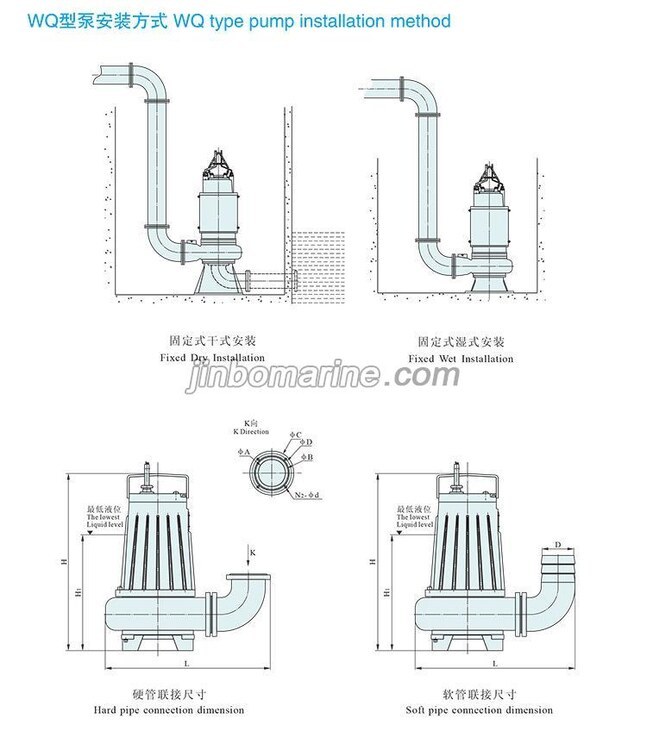

Installtion
