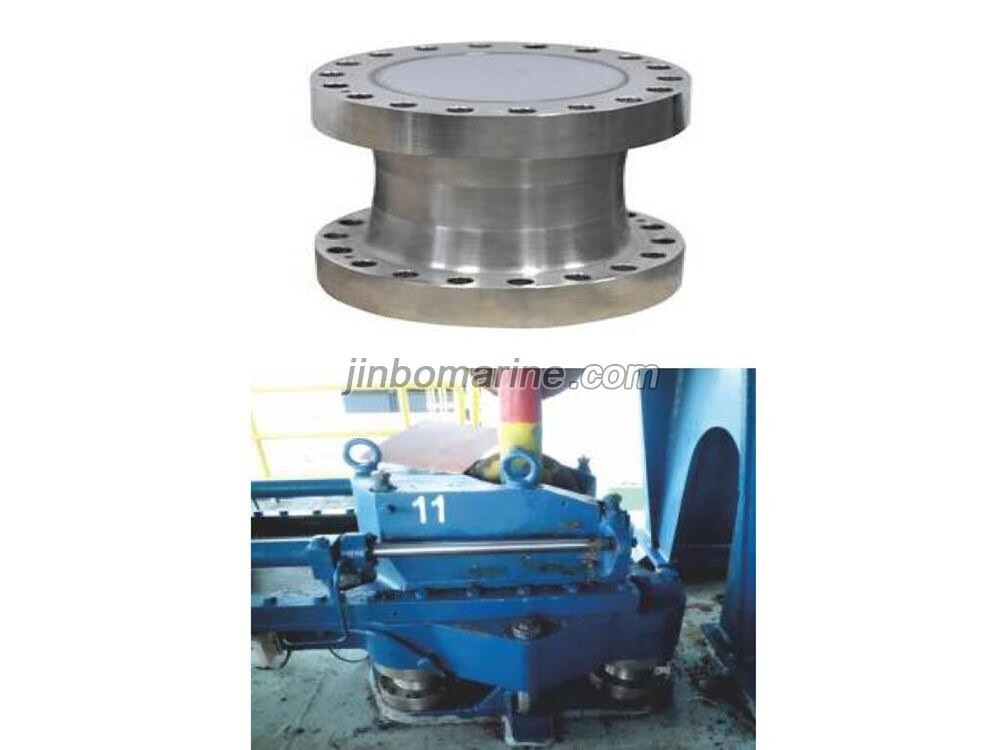

WS-ZS-500T Semi-Submersible Platform Windlass Load Sensor

Range:50~500 Ton.

Accuracy:0.02

Sensitivity:1.6 ± 0.005mv/V

input Resistance:380 ±20Ω

Output Resistance:350 ±2Ω

Insulation Resistance: >5000 mΩ

The biggest bridge voltage:15V

Safe Overload:120% F.S.

Temperature Range: -30~70 degree centigrade.

Output Signal: 0~20mV Voltage analog signals.

Material:Stainless steel.
