Marine Equipment
WTY Type Pressure Anti-Vibration Thermometer
Product Description: It features Small volume,anti-corrosive and anti-vibration,which can be used to measure temperature of bush for marine diesel engine,oil and exhaust,and also can b...
Loading product images...

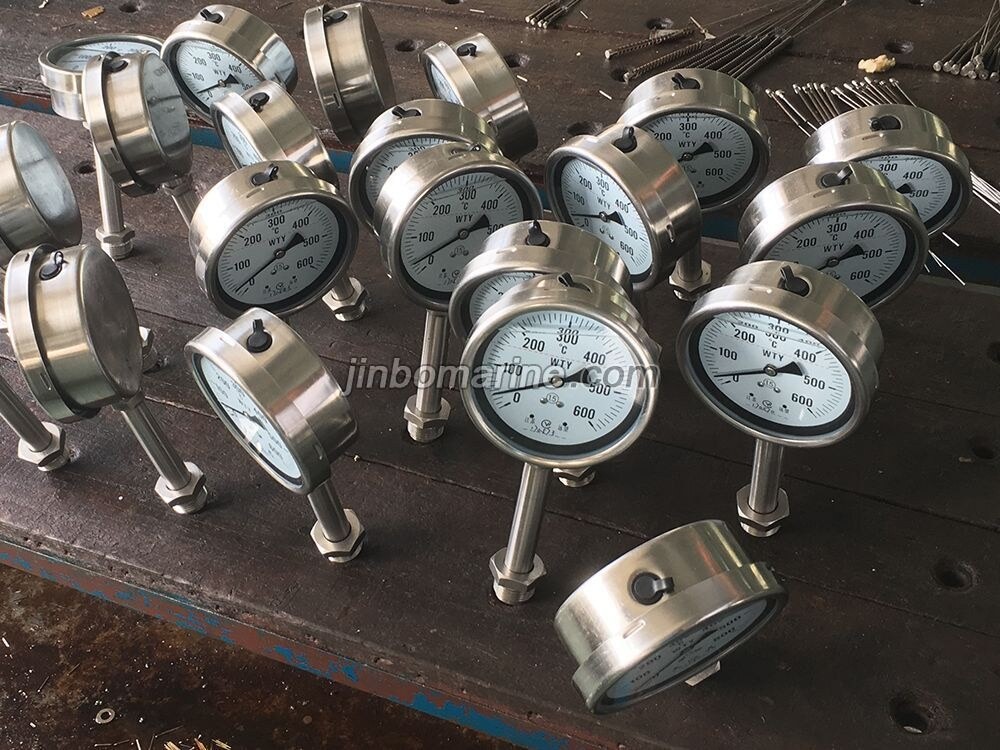

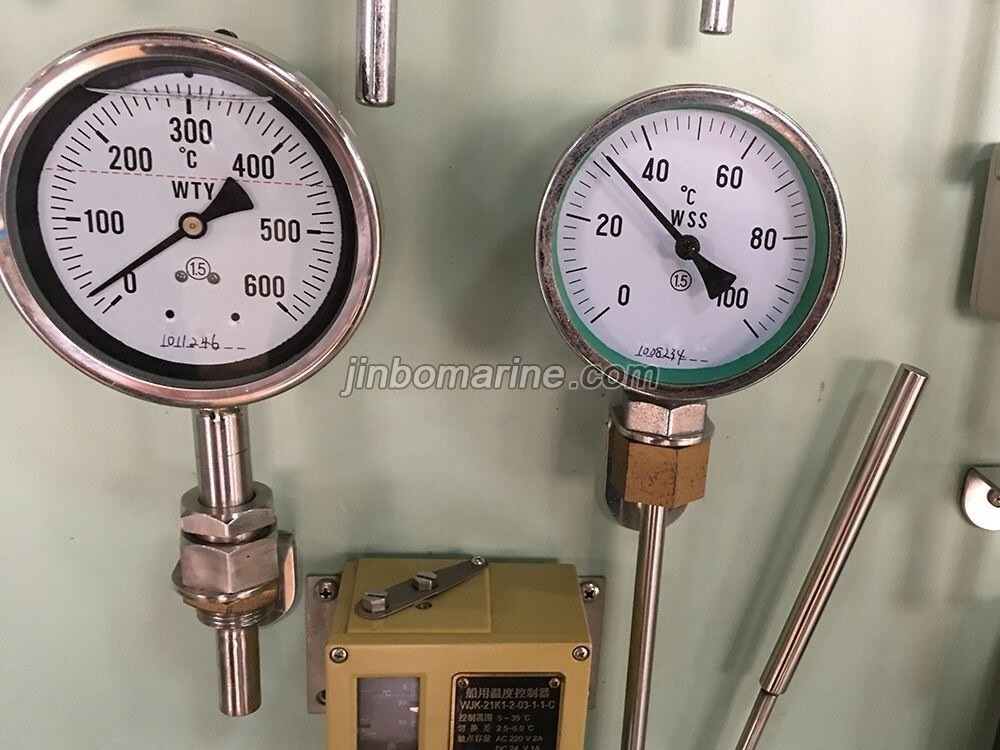

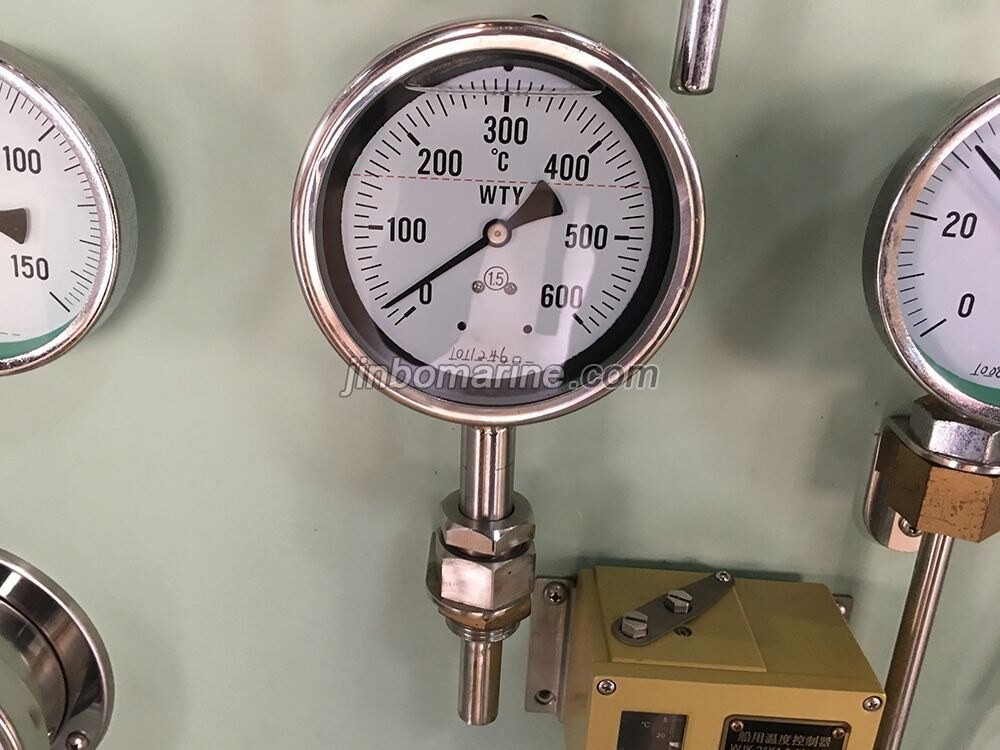

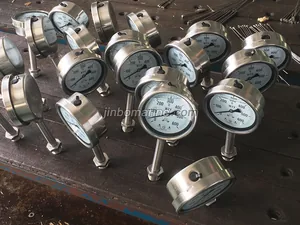

WTY Type Pressure Anti-Vibration Thermometer
PDF Datasheet
We can supply according to your requirement.
Product Description:
It features Small volume,anti-corrosive and anti-vibration,which can be used to measure temperature of bush for marine diesel engine,oil and exhaust,and also can be used to measure temperature of gas,liquid and steam in other industrial equipment.
Main Technical Specification:
| Model | Nominal diameter(mm) | Measure range | Division value | Accuracy | Thermal bulb diameter | Insertion length(mm) | Connection(M) |
|---|---|---|---|---|---|---|---|
| WTY-401 pressure type anti-vibration thermometer | 100 | -40~60 0~100 0~150 0~200 | 2 | 1.5 | 12mm(Single) 15mm(Double) | 40 75 100 150 200 250 300 | M27x2 G 3/4" |
| WTY-411 pressure type anti-vibration thermometer | 0~300 | 5 | |||||
| 0~400 0~500 0~600 | 10 |
