China Y Type Filter:

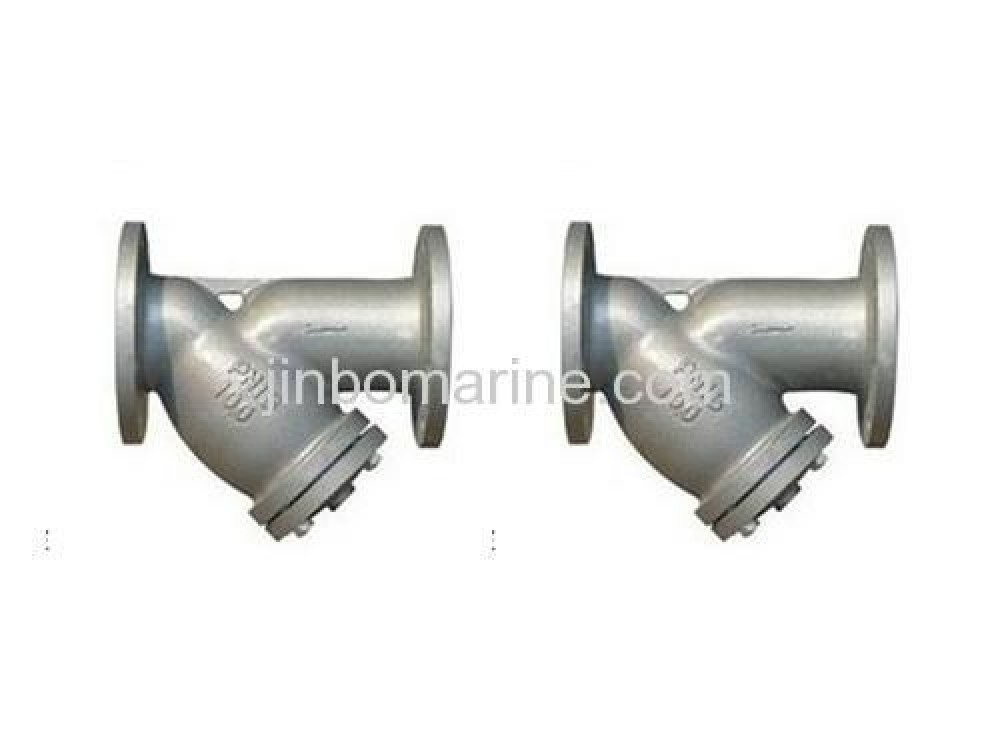

Y type filter is pipeline coarse filter series, used for gas or other medium large particle filtering, installed on the pipeline to remove large solid impurity in the fluid, make sure the machinery and equipment (including compressor, pump, etc.) work smoothly.

Main Specification

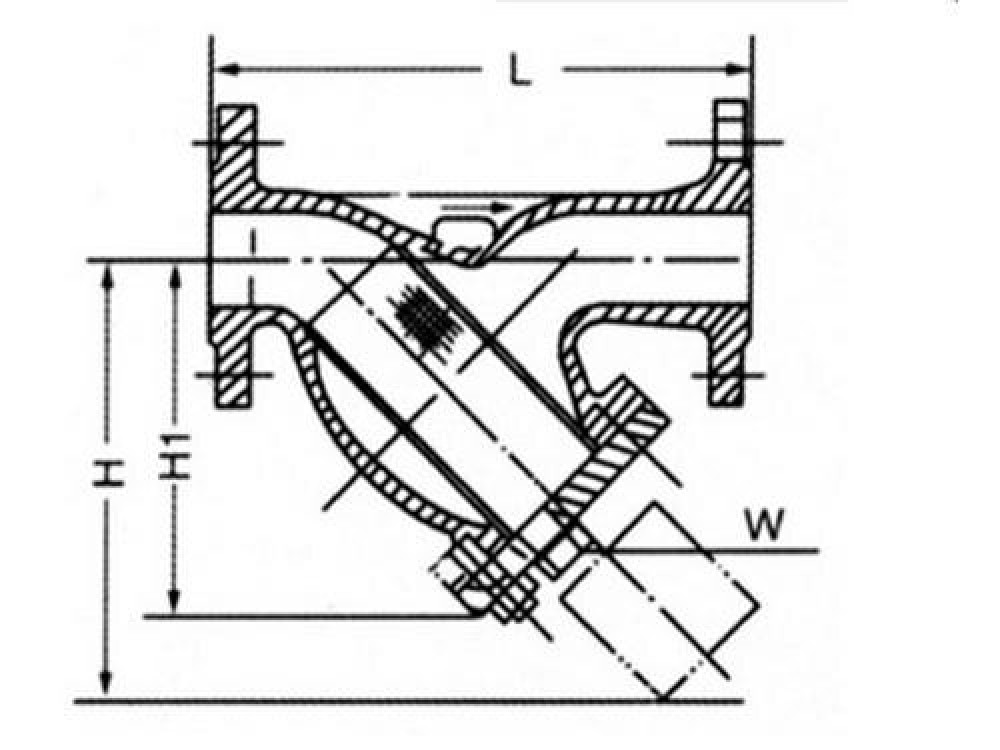

DN In L H H1 Filter area m2
15 0.5 125 70 150 0.00185
20 0.75 145 70 150 0.00281
25 1 160 80 160 0.00343
32 1.25 180 90 180 0.00486
40 1.5 200 100 240 0.00767
50 2 220 130 250 0.0116
65 2.5 260 165 350 0.02111
80 3 280 195 390 0.03029
100 4 320 230 450 0.04063
125 5 350 300 520 0.05589
150 6 380 335 580 0.07709
200 8 495 420 690 0.11967
250 10 595 500 800 0.19155
300 12 640 580 950 0.26738
350 14 700 640 1150 0.32535
400 16 800 700 1360 0.40946
450 18 850 790 1480 0.52837
500 20 900 875 1650 0.65385
