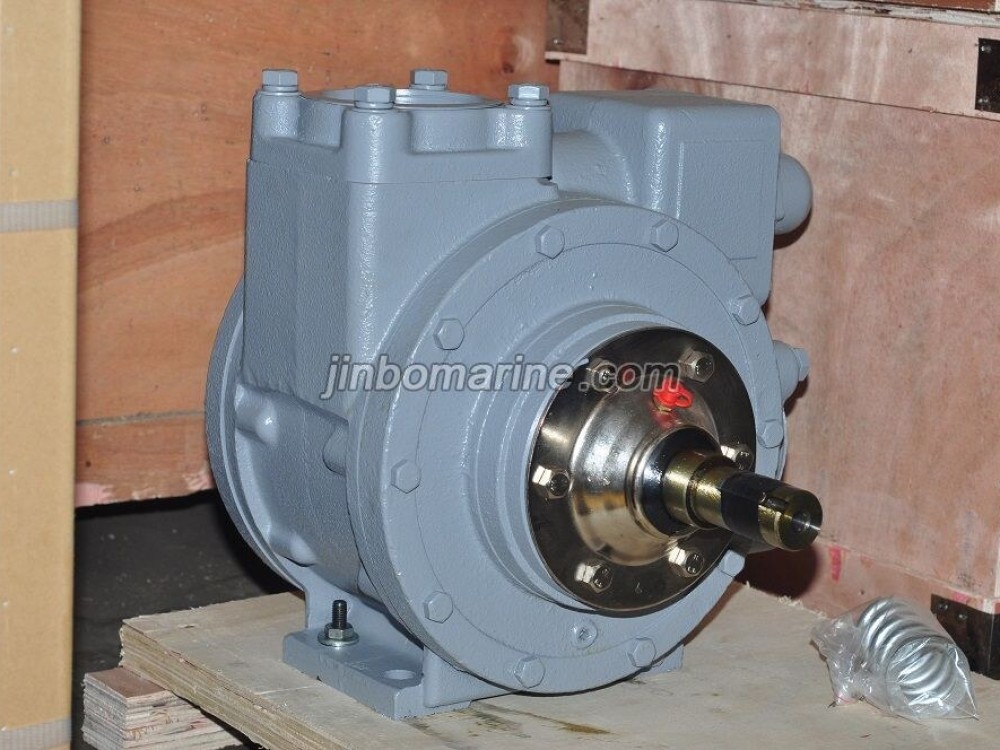

YB Series Vane Pump
- Category:Marine Vane Pump
- Material:Stainless steel, Aluminmum, cast iron
- Standards:standard
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
YB Series Vane Pump
Application:
Oil tank truck
Fleet refuling
Lube oil
Aviation refuelers
Transport of petro chemicals, gasoline, biofuels, solvents and many more.
Material:
|
No |
Name |
材 料 |
|
1 |
Pump case, pump cover, overflow valve cover |
Cast iron |
|
2 |
Rotor |
Ductile iron |
|
3 |
Shaft |
Alloy steel |
|
4 |
Overflow valve |
Cast iron |
|
5 |
O ring |
Fluor rubber |
|
6 |
Vane |
PPS |
Technical specification:
| Model | YB-50 | YB-65 | YB-80 | YB-100 |
| Driven: | Motor driven, coupling drive or V-Belt drive | |||
| Inlet/outlet: | 50mm/2" | 65mm/2-1/2" | 80mm/3" | 100mm/4" |
| Speed | 400~640RPM | 400~640RPM | 400~640RPM | 500RPM |
| Max.Flow | 150~300L/min | 300~500L/min | 600~1000L/min | 1500~1900L/min |
| Vacuum | 0.5Bar | |||
| Working pressure: | 5Bar | |||
| Motor power | 2.2kw | 4kw | 7.5kw | 18.5kw |
| Net weight | 86kgs | 126kgs | 238kgs | pump head 160kgs |
| Groos weight | 118kgs | 146kgs | 266kgs | pump head 178kgs |
