YCB-20-0.6 YCB series circular marine gear pump

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

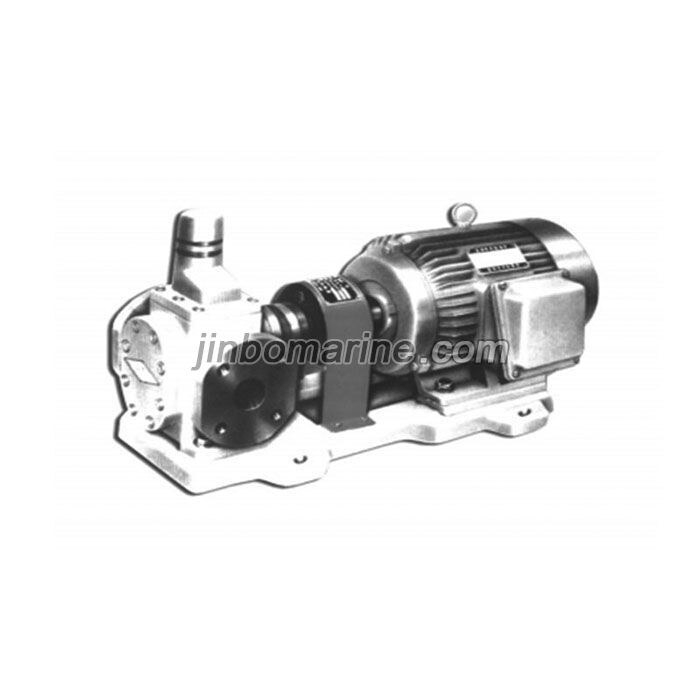

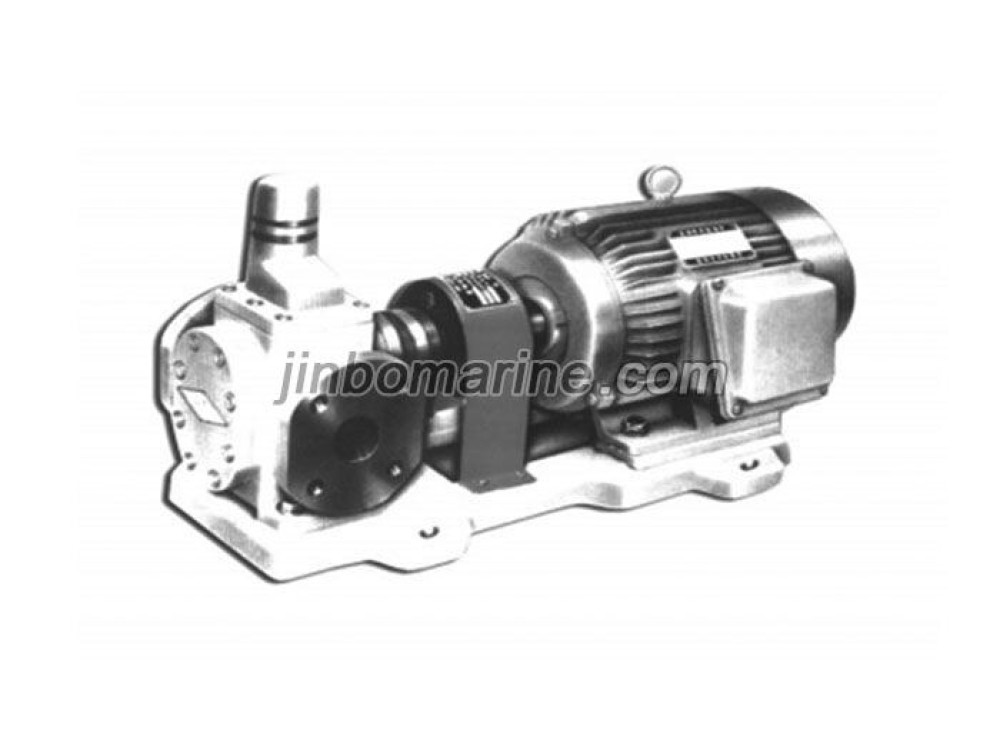

China YCB-20-0.6 YCB series circular marine gear pump:

It applies to delivery non-corrosive lubricating-oil or equivalent liquid without solid particles and fibres at temperature below 300℃.It applies to hydraulic system, too.

Main Technical Data
Model Capacity
Q 		Exhaust pressure
MPa 		Speed
r/min 		Power
YCB0.6-0.6 0.6-1.2 0.6 1420 0.75
YCB0.6-1.6 0.6-1.2 1.6 1420 1.1
YCB1.6-0.6 1.6-3.0 0.6 1415 0.75
YCB1.6-1.6 3.3-6 1.6 1410 1.5
YCB3.3-0.6 3.3-6 0.6 920 5.5
YCB4-0.6 4.0-7.2 0.6 925 1.5
YCB-4-1.6 4.0-7.2 1.6 670 5.5
YCB8-0.6 8.0-14.4 0.6 675 3
YCB8-1.6 8.0-14.4 1.6 680 11
YCB10-0.6 10.0-18 0.6 1435 4
YCB10-1.6 10.0-18 1.6 1430 11
YCB20-0.6 20 24 0.6 940 7.5
YCB25-0.6 25 30 0.6 945 11
YCB30-0.6 30 36 0.6 710 11
YCB40-0.6 40 48 0.6 710 15
YCB50-0.6 50 60 0.6 950 22
YCB60 60 73 1.0 1460 30.0
YCB80 80 97 0.6 945 22
