YDS Swivel Hoist Ring

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China YDS Swivel Hoist Ring:

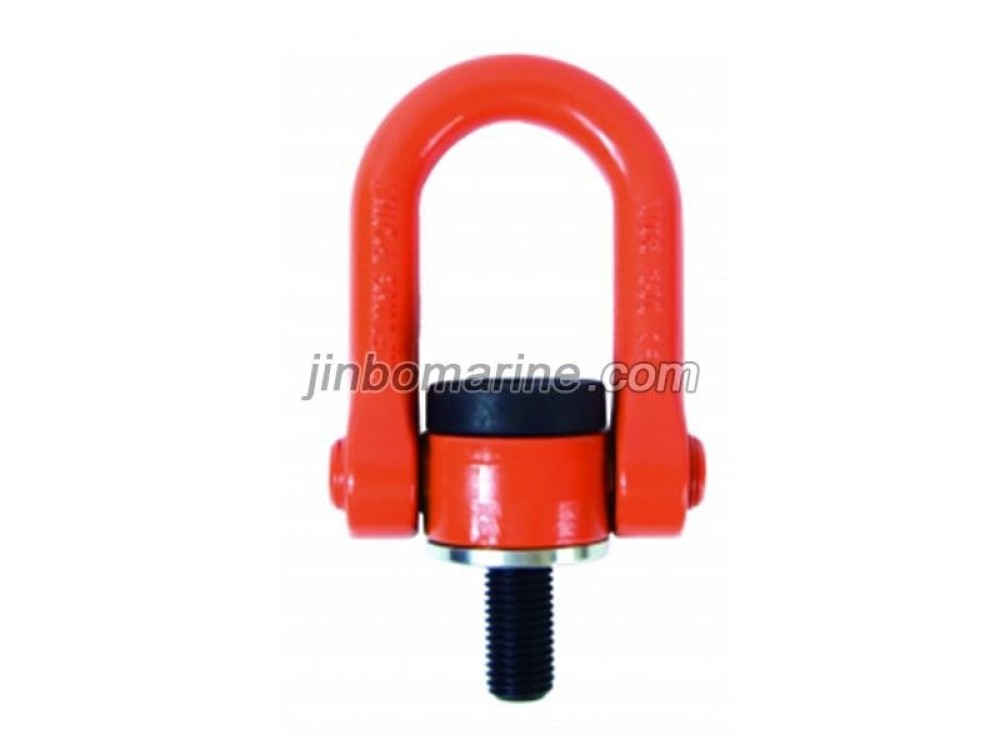

YDS Swivel Hoist Ring

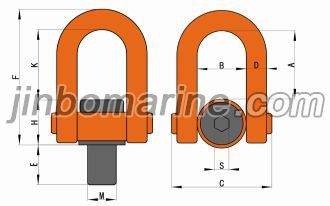

Metric Thread:

ITEM NO. WLL/T M Dimensional Parameters/mm Locking Torque /Nm Kg
E A±3 B±3 C D F K±3 H S
YDS-M8 0.5 M8x1.25 12 50.5 37 76 14 101.5 49.5 38 8 10-40 0.65
YDS-M1O 0.7 M10x1.5 16 50.5 37 76 14 101.5 49.5 38 8 10-40 0.65
YDS-M12 1 M12x1.75 18 50.5 37 76 14 101.5 49.5 38 8 15-40 0.65
YDS-M14 1.5 M14x2.0 21 50.5 3 76 14 101.5 49.5 38 8 30-100 0.66
YDS-M16 2 M16x2.0 24 50.5 37 76 14 101.5 49.5 38 8 45-130 0.67
YDS-M18 2.5 M18x2.5 40 74.5 54 105 20 145 77 48 12 100-170 1.8
YDS-M20 3 M20x2.5 40 74.5 54 105 20 145 77 48 12 100-170 1.8
YDS-M22 3 M22x2.5 40 74.5 54 105 20 145 77 48 12 100-170 1.9
YDS-M24 4.5 M24x3.0 40 74.5 54 105 20 145 77 48 12 190-280 1.9
YDS-M27 5 M27x3.0 40 98.5 73 146 30 201.5 103.5 68 17 250-500 5.3
YDS-M30 7.3 M30x3.5 45 98.5 73 146 30 201.5 103.5 68 17 270-600 5.3
YDS-M33 8 M33x3.5 50 98.5 73 146 30 201.5 103.5 68 17 270-600 5.3
YDS-M36 10 M36x4.0 54 98.5 73 146 30 201.5 103.5 68 17 270-600 5.4
YDS-M39 10 M39x4.0 58 98.5 73 146 30 201.5 103.5 68 17 350-800 5.6
YDS-M42 12.5 M42x4.5 63 98.5 73 146 30 201.5 103.5 68 17 350-800 5.8
