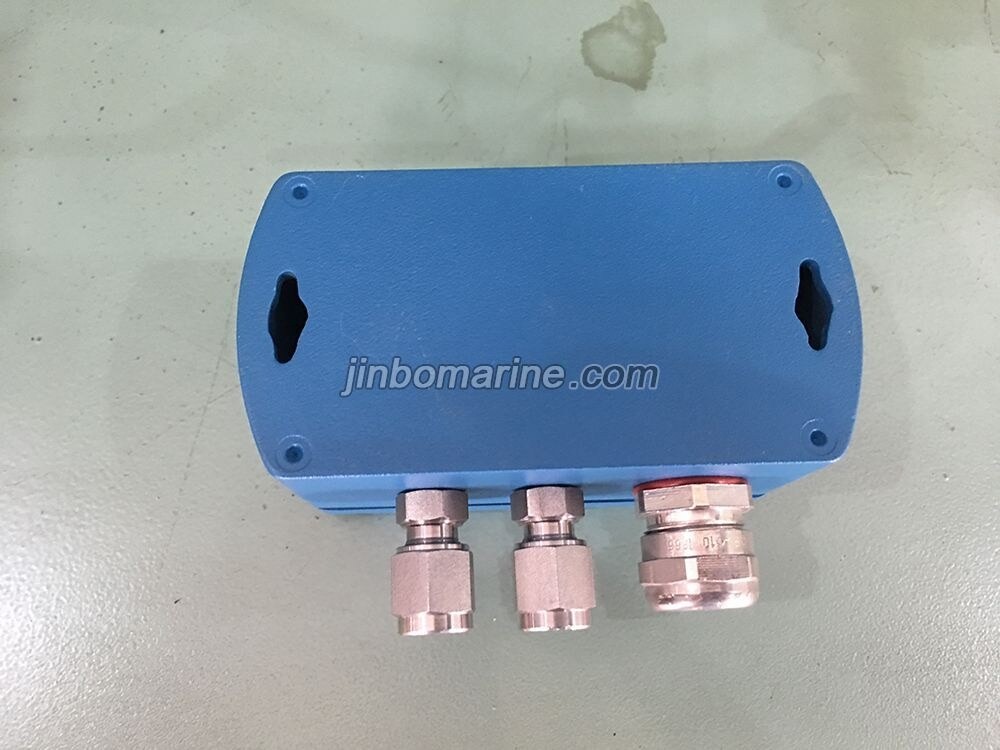

YSZK-01S-C-E Type Cabin Pressure Transmitter
- Category:Sensor
- Certificate:CCS,GL,LR,BV,ABS,DNV GL,RINA,NK,KR ETC.
- Delivery Time:About 7 to 10 days
- Packing Details:Carton packaging.
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Product Description:
YSZK type cabin pressure transmitter adopt imported silicon piezoresistance pressure sensor chip, matched with latest type digital compensation amplifier circuit which with new microprocessor, and with sturdy and durable cast aluminium housing, it has the advantages of high precision, good stability,wide scaling range, high protection grade etc. It is used for measure the pressure in ship's cabin,boiler furnace negative pressure detection,air condition purification system, fan flow rate measurement, industrial dedusting equipment, purification shop, textile machinery, leakage detection measurement or other industrial areas.
Main Technical Specification:
Voltage: DC24V
Measuring accuracy: ±1.0 % F.S centigrade / ±0.5% F.S centigrade
Working temperature: -20 to 60 centigrade
Protection: IP56
Explosion proof mark: Exia II CT6
Maximum overload capability: 3psi (20Kpa)
Connection size: Diameter 6 stianless steel bite type connector or Diameter tower shape brass connector
Measure Range:
| Type | Measuring range(Kpa) |
| One way type | 0~50,0~100,0~250,0~500,0~1000,0~2500,0~5000 |
| Two way type | -50~0~50，-100~0~100，-250~0~250，-500~0~500，-100~0~1000，-2500~0~2500，-5000~0~5000 |

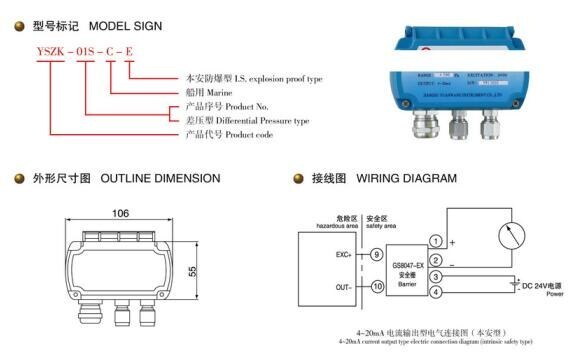

Model Sign:
