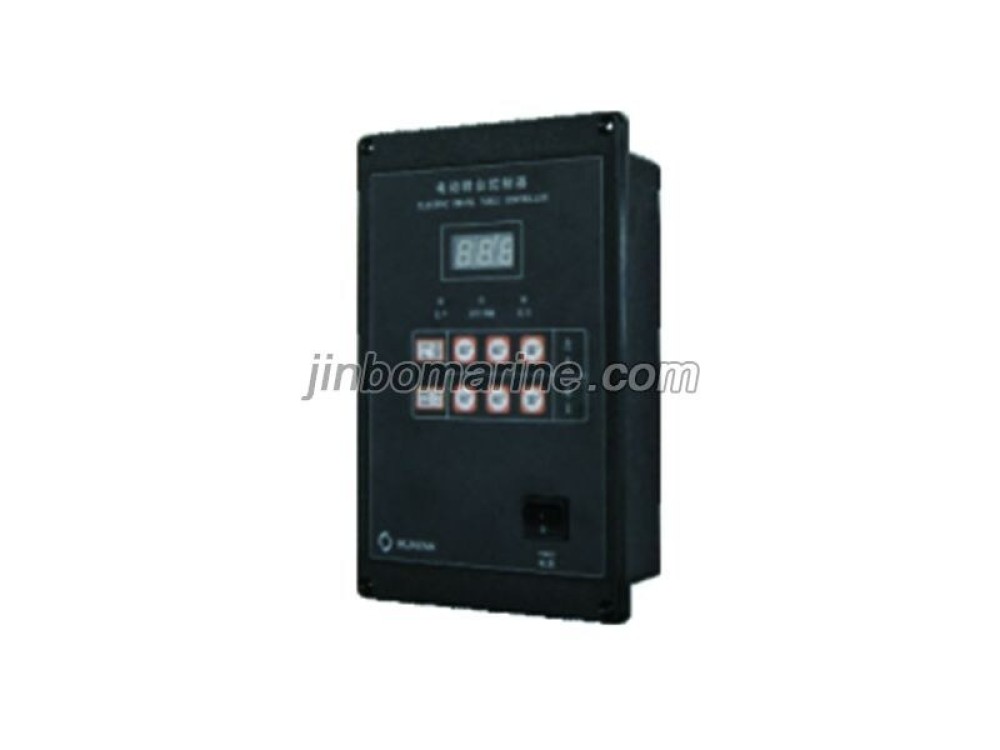

YXD-1K Electric Rotary Platform Controller

YXD-1K Electric Rotary Platform Controller

1) Chapter 2 of Part 4 of the "Steel Ship Classification Rules" of the China Classification Society;
2) Chapter VII of International life-saving appliance code, annex, as amended by msc.218(82);
3) IMO resolution A. 1021 (26) code on "Alarm and indicators, 2009".

Colour:Dull black

Shell material: ABS

Power supply: DC24V

IP rating: IP20

Rotation degree control: Left and right 30°/60°/90°/270°(omnidirection)

The cable connect to electric remote rotarty platform is 6 wires
