ZYG-1.5 Fresh Water Hydrophore tank

Request a Quote Not what you need, please send your RFQs via Email.

Details

Description:

This series of pressure water tank is suitable for ship fresh water pipes and sea water pipes, pumps; pressure switch, electric control box and hydrophone are installed together. It is compact and beautiful appearance, easy to install and maintain, and it is an ideal unit for water supply system.

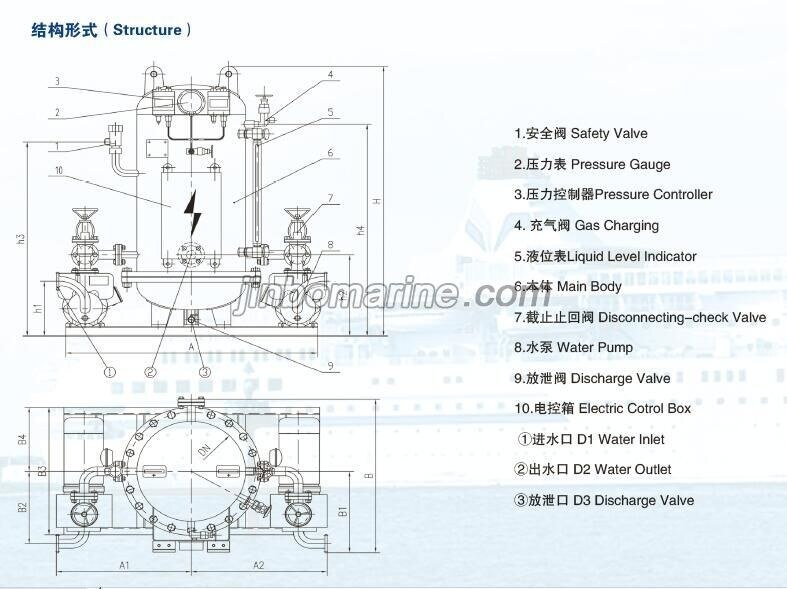

Structure:

Technical data:

Model ZYG-
0.12 0.2 0.3 0.5 1 1.5 2
Volume(m3) 0.12 0.2 0.3 0.5 1 1.5 2
Working pressure(MPa) 0.4
Design pressure(MPa) 0.44
Test pressure(MPa) 0.66
Take-off pressure
of safety valve(MPa)
0.42
Working temperature 0~45℃
Design temperature 50℃
Water pump Model 1.5CWX-1.5/1.5A 1.5CWX-2/2A 1.5CWX-3/3A
Flow rate(m3/h) 3 6.5 10
Pumping head (m) 40 40 40
Power (kW) 2.2 3 4
Weight (kg) 280 320 360 420 450 550 620
DN 400 500 600 700 900 1000 1200
A 1080 1190 1316 1424 1595 1716 1898
A1 580 630 694 745 799 859 950
A2
B 731 781 921 1061 1248 1363 1540
B1 414
B2 368
B3 545 648 750 710 910 1012 1212
B4 272 325 375 355 455 506 606
h1 280 280 370 405 370 450 575
h2 415 415 462 506 495 605 686
h3 888 988 1045 1295 1490 1758 1682
h4 978 1098 1135 1385 1580 1935 1858
H 1282 1380 1455 1810 2060 2493 2470
D1 DN40
D2 DN40
D3 3/4" 1"
