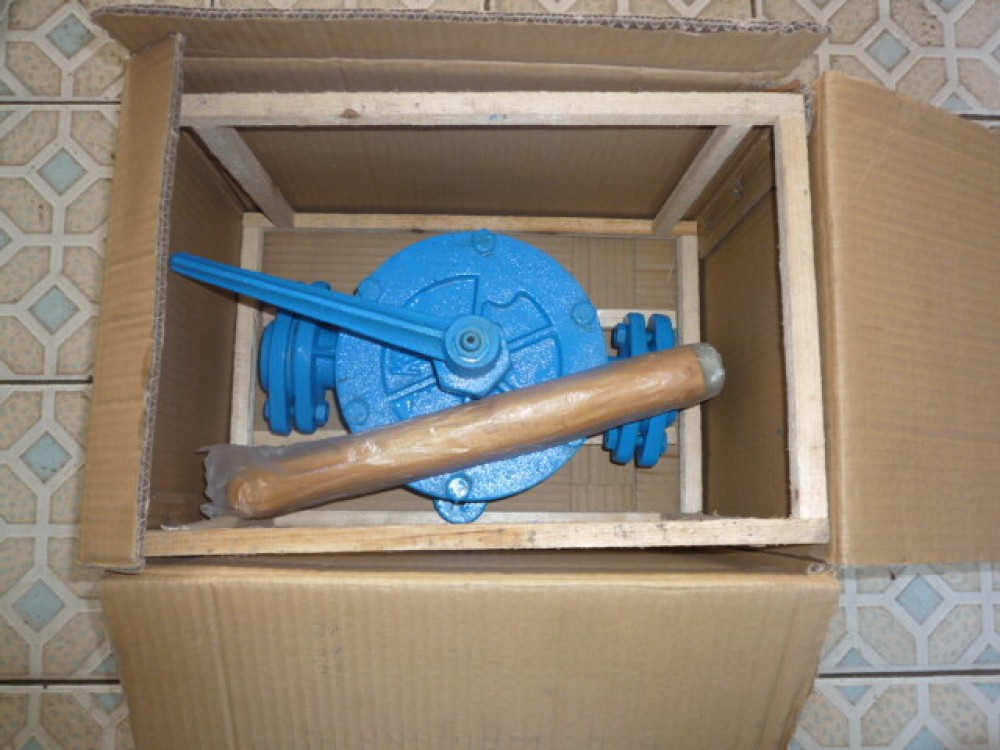

Half Twist-action Hand Pump K Series
- Category:Hand Pump
- Material:cast iron
- Standards:standard
- Packing Details:Standard Packing
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Half Twist-action Hand Pump
Half twist-action hand pump clean water, gasoline, kerosene, and iron and copper and other non-corrosive liquids, does not apply to fiber or other solid particles of the liquid, pumping the liquid below the temperature of 60℃.
Its performance range: flow rate 15-105 l/min, maximum lift of 26 meters. CYL hand pump compact structure, beautiful style and generous, easy to use and reliable.
Main Specification
| Model | Inlet and outlet size | weight | Double strokes | Capacity | Head | Pieces per case | Gross weight |
| kg | per min | l/min | m | kg | |||
| K00 | 3/8" | 3 | 80 | 7.5 | 25 | 30 | 117 |
| K0 | 1/2" | 5 | 65 | 11.5 | 25 | 30 | 174 |
| K1 | 3/4" | 6 | 60 | 17.25 | 25 | 25 | 174 |
| K2 | 1" | 8 | 55 | 22.5 | 25 | 15 | 153 |
| K3 | 1-1/4" | 11 | 50 | 29 | 22 | 10 | 136 |
| K4 | 1-1/4" | 12 | 50 | 43.25 | 22 | 8 | 122 |
| K5 | 1-1/2" | 17 | 45 | 53.5 | 20 | 6 | 117 |
| K7 | 2" | 30 | 40 | 90 | 15 | 3 | 116 |
| D40 | 1-1/2" | 13.5 | 40 | 50 | 15 | 10 | 155 |
