High Test Red Painted US Type Ratchet Type Load Binder
- Category:Load Binder
- Material:45# Steel
- Packing Details:Wooden Box
- Delivery Time:20 Days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Similar Name
US Type Ratchet Type Load Binder
Spray Plastics Ratchet Type Load Binder
Drop Forged Ratchet Type Load Binder
Standard ratchet type load binder hook and hook
Main Specification
Compromise of handle and hooks
Forging and casting
45# Steel

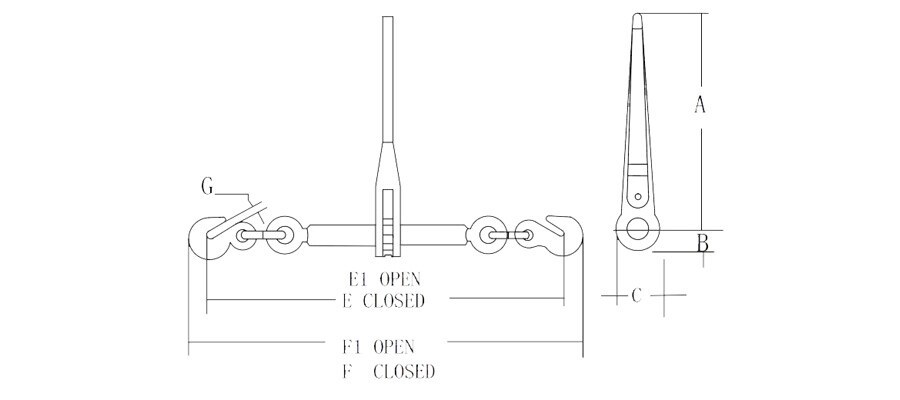

Size Table
| A | B | C | E | E1 | F | F1 | G | Chain Size(in) | WLL(lbs) | Weight(lbs) | Handle Length(in) |
| 7.16 | 0.89 | 1.77 | 16.22 | 21.26 | 17.79 | 22.83 | 0.35 | 1/4-5/16 | 2600 | 3.52 | 7.16 |
| 13.92 | 1.3 | 2.6 | 22.64 | 30.64 | 25.25 | 33.24 | 0.51 | 5/16-3/8 | 5400 | 10.5 | 13.42 |
| 13.92 | 1.3 | 2.6 | 24.13 | 32.13 | 27.04 | 35.04 | 0.59 | 3/8-1/2 | 9200 | 12.9 | 13.92 |
| 13.92 | 1.3 | 2.6 | 26.45 | 34.45 | 30.07 | 38.07 | 0.74 | 1/2-5/8 | 13000 | 14.38 | 13.92 |
