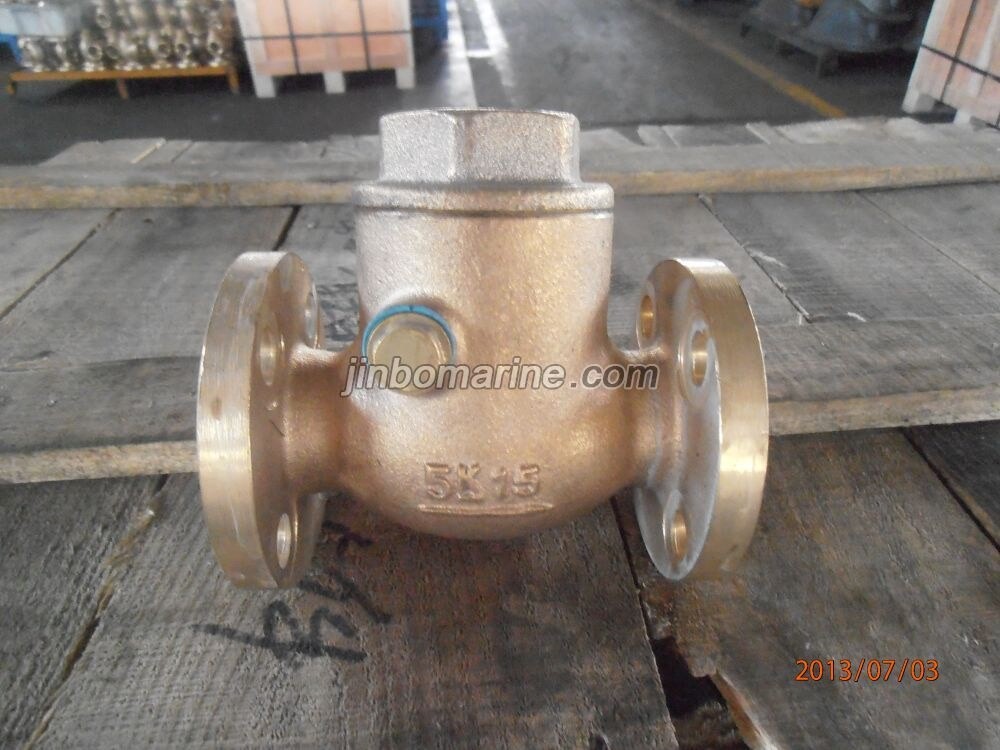

Marine Bronze Swing Check Valve JIS F7371 5K (DN15-DN40)

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Bronze Swing Check Valve JIS F7371 5K (DN15-DN40):

Design Standard: JIS F7371-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body-1.05Mpa, Seat-0.77Mpa～0.4M

Flange size as per JIS B2220 - 5K

Main Material:

1.Body: Bronze (BC6)

2.Bonnet: Bronze (BC6)

3.Disc: Bronze (BC6)

4.Seat: Bronze (BC6)

5.Gasket: non-asbestos

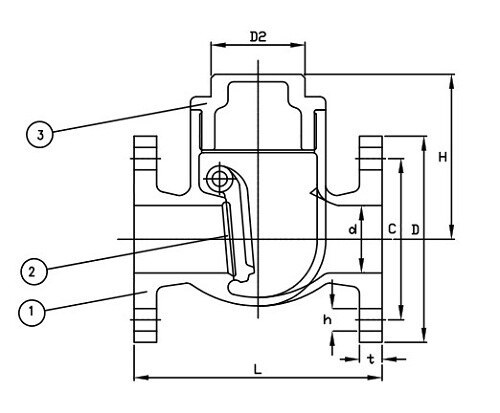

Main Size List(mm):

IMPA DN L D C No of Bolt h t H D2
15 110 80 60 4 12 10 69 35
20 110 85 65 4 12 10 69 37
751401 25 110 95 75 4 12 10 69 41
751402 32 130 115 90 4 15 12 79 41
751403 40 140 120 95 4 15 12 93 46
