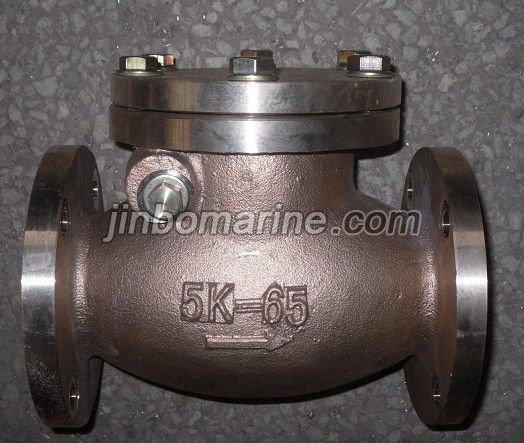

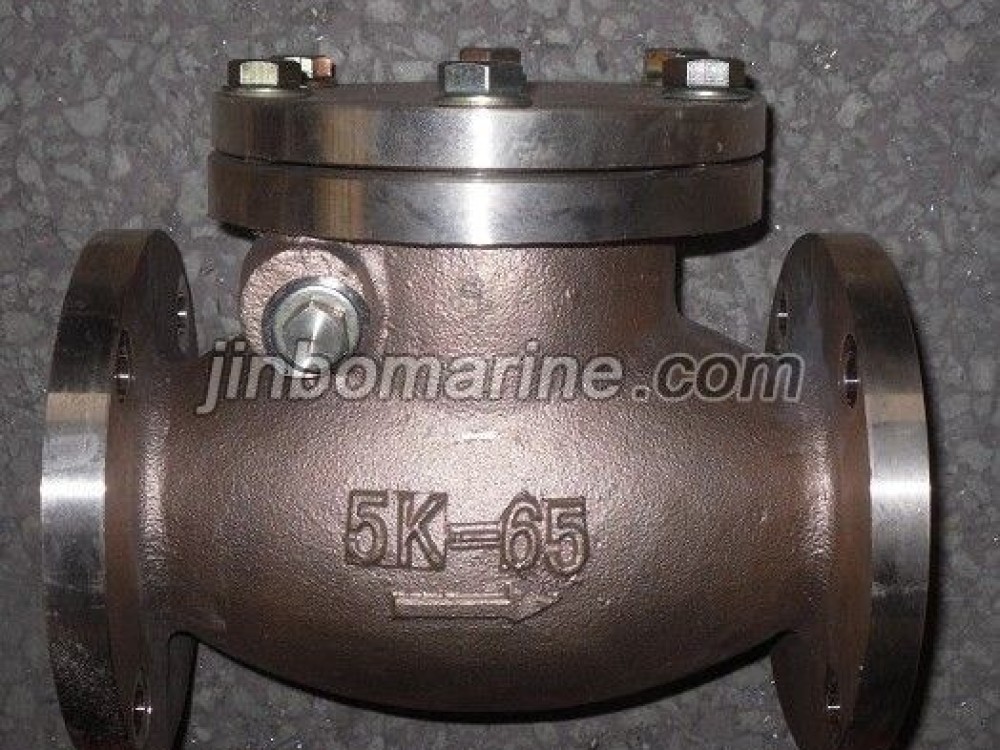

Marine Bronze Swing Check Valve JIS F7371 5K(DN50-DN100)

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Bronze Swing Check Valve JIS F7371 5K(DN50-DN100):

Design Standard: JIS F7371-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body-1.05Mpa, Seat-0.77Mpa～0.4Mpa

Flange size as per JIS B2220 - 5K

Main Material:

1.Body: Bronze (BC6)

2.Bonnet: Bronze (BC6)

3.Disc: Bronze (BC6)

4.Seat: Bronze (BC6)

5.Gasket: non-asbestos

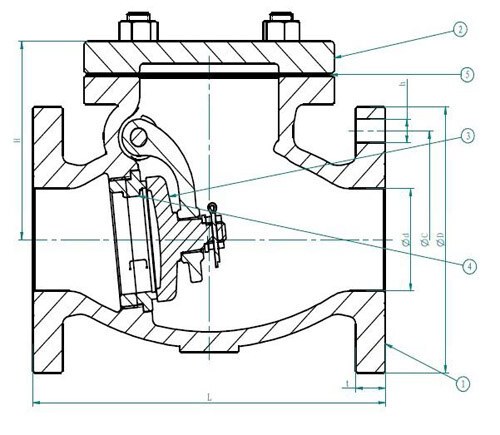

Main Size List(mm):

DN d L D C No. h t H
50 50 190 130 105 4 15 16 97
65 65 220 155 130 4 15 18 119
80 80 250 180 145 4 19 18 129
100 100 280 200 165 8 19 20 146
