Marine Ductile Iron 5K Angle Check Valve JIS F7322C
Marine Ductile Iron Angle Check Valve JIS F7322C is made of ductile iron to replace the expensive bronze valve in some small size pipe system. Technical Specification: Design Sta...
Loading product images...

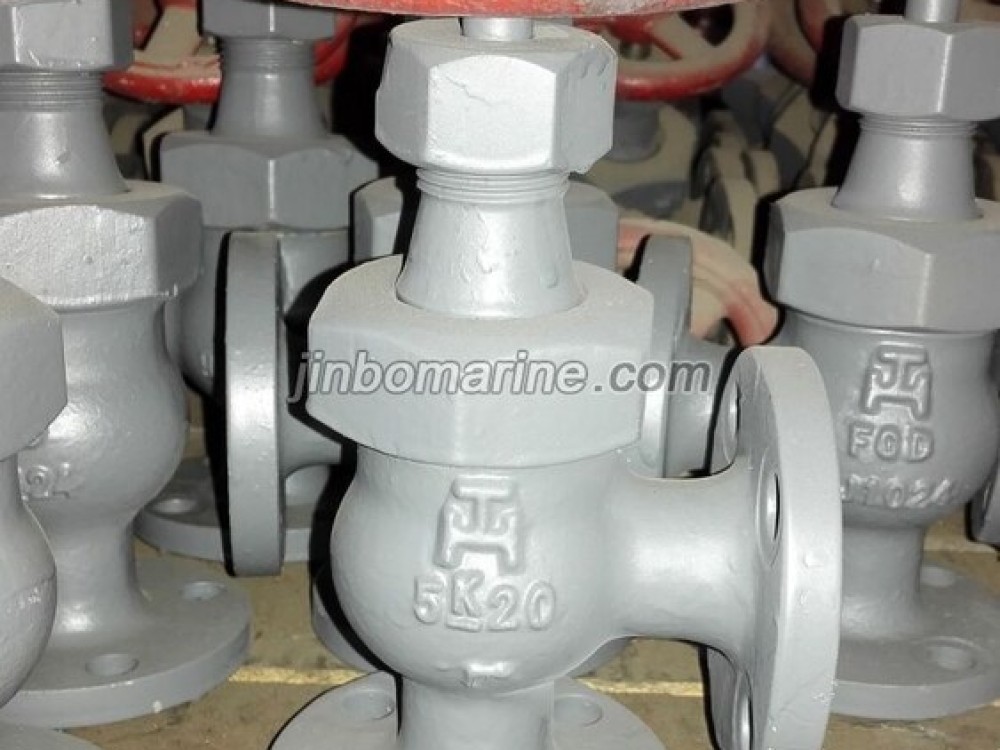

Marine Ductile Iron 5K Angle Check Valve JIS F7322C
PDF Datasheet
We can supply according to your requirement.
China Marine Ductile Iron 5K Angle Check Valve JIS F7322C:
Marine Ductile Iron Angle Check Valve JIS F7322C is made of ductile iron to replace the expensive bronze valve in some small size pipe system.
Technical Specification:
Design Standard: JIS F7322C-1996
Test Standard: JIS 7400-1996
Hydraulic Test Pressure: Body-1.05Mpa, Seat-0.77Mpa
Flange Standard: JIS B2220 -5K
Material:
1. Body/Bonnet---Ductile Iron FCD450
2. Seat---SUS (SCS2) /Bronze (BC6)
3. Stem---SUS (SCS2) /Brass (C3771BD)
Main Size (mm):
| SIZE | L | C | Hole | Weight (kg) |
| 5K15 | 55 | 80 | 4 X D12 | 1.89 |
| 5K20 | 60 | 85 | 4 X D12 | 2.65 |
| 5K25 | 65 | 95 | 4 X D12 | 3.85 |
| 5K32 | 80 | 115 | 4 X D15 | 5.29 |
| 5K40 | 85 | 120 | 4 X D15 | 6.86 |
