Marine Forged Steel Angle Air Valve JIS F7337 30K

Marine Forged Steel Angle Air Valve JIS F7337 is used on the marine compressed air pipe system to shut off/turn on the air. There are two types, S type is union type, F type is flange type, ...

JIS Marine Check Valve1 Photos ISO9001 Supplier

Loading product images...

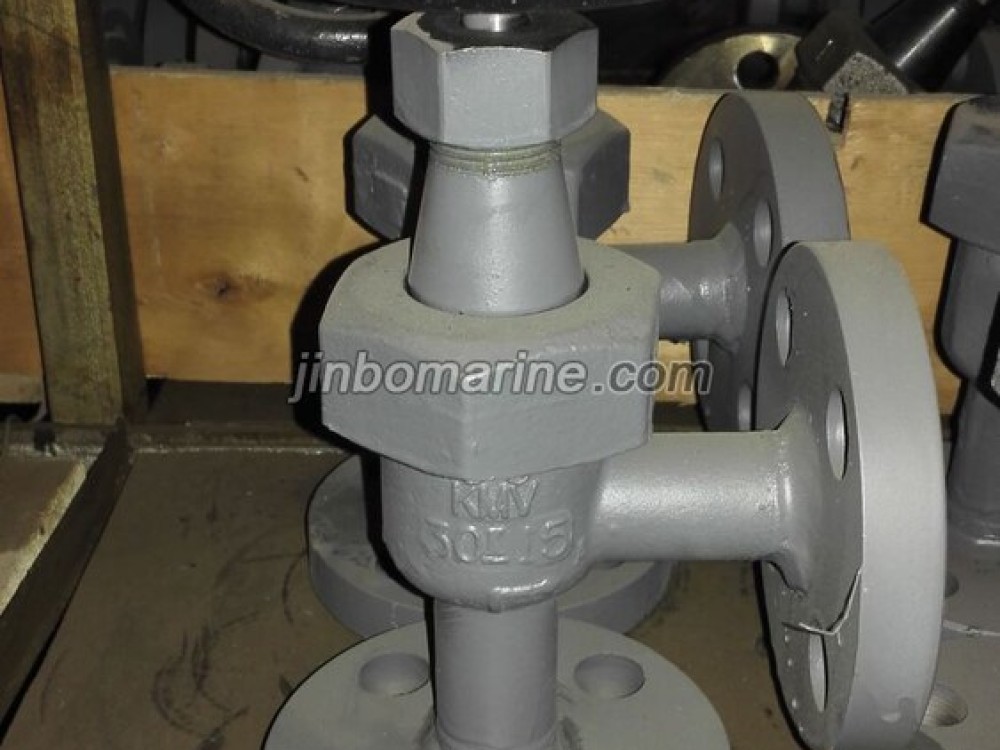

Marine Forged Steel Angle Air Valve JIS F7337 30K

Category: JIS Marine Check Valve

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote PDF Datasheet

We can supply according to your requirement.

China Marine Forged Steel Angle Air Valve JIS F7337 30K:

Marine Forged Steel Angle Air Valve JIS F7337 is used on the marine compressed air pipe system to shut off/turn on the air. There are two types, S type is union type, F type is flange type, flange size as per JIS 30K.

Technical Specification:

1.Design Standard: JIS F7337

2.Max Working Pressure: 4.6Mpa

3.Medium: compressed air

4.Watertight Pressure Test: Body---6.9Mpa, Sea---5.06Mpa

Main Material:

1. Body---Forged Steel

2.Seat---Stainless Steel

3. Stem---Stainless Steel

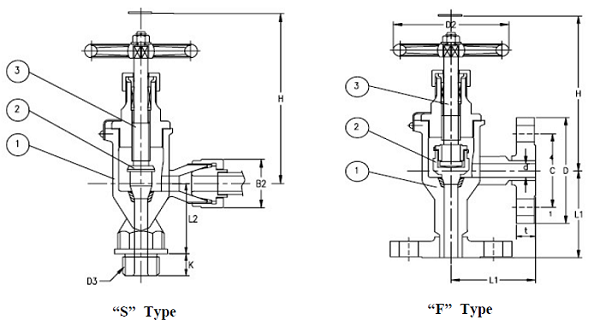

Main Size(mm):

IMPA CODE	Type	SIZE	Pipe Out. Dia		L1	L2	L3	K	D	C	n	h	t	H	B2	D3	Weight
IMPA CODE	Type	SIZE	Copper	Steel	L1	L2	L3	K	D	C	n	h	t	H	B2	D3	Weight
750751	Type "S"	6	8 & 10	10.5	42	38	51	12	-	-	-	-	-	115	30	M20 x 1.5	1.23
750752	Type "S"	10	15	17.3	46	45	58	16	-	-	-	-	-	130	41	M24 x 2	1.75
750756	Type "F"	15	-	-	90	-	-	-	115	80	4	19	20	175	-	-	5.59
750757		20	-	-	95	-	-	-	120	85	4	19	20	185	-	-	7
750758		25	-	-	100	-	-	-	130	95	4	19	22	210	-	-	9.11
