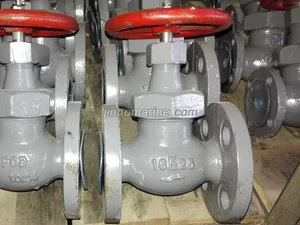

Marine Ductile Iron 16K Globe Check Valve JIS F7323C thumbnail 1

Marine Ductile Iron 16K Globe Check Valve JIS F7323C

Category: JIS Marine Check Valve
Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
FOB Price: Get Latest Price Now
Warranty: 12 Months unless specified otherwise
Place of Origin: China
Request a Quote PDF Datasheet

We can supply according to your requirement.

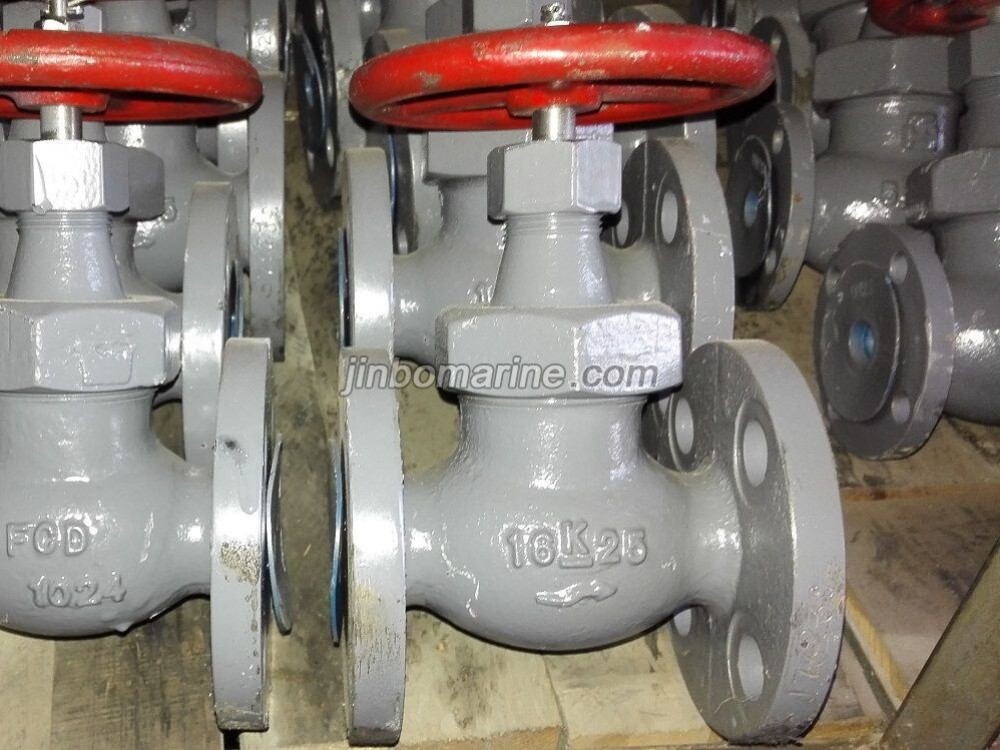

China Marine Ductile Iron 16K Globe Check Valve JIS F7323C:

Marine Ductile Iron Globe Check Valve JIS F7323C is made of ductile iron to replace the expensive bronze SDNR valve in some small size pipe system.

Technical Specification:

Design Standard: JIS F7323C

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body-3.3Mpa, Seat-2.42Mpa

Flange size as per JIS B2220 -10K/16K

Material:

1. Body/Bonnet-Ductile Iron FCD450

2. Seat-SUS (SCS2) /Bronze (BC6)

3. Stem-SUS (SCS2) /Brass (C3771BD)

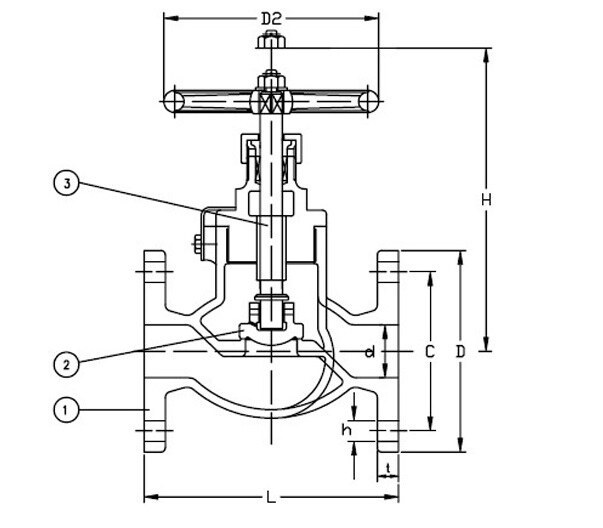

Main Size(mm):

SIZE L D C Hole Weight
DN15 110 95 70 4 x D15 2.91
DN20 120 100 75 4 x D15 3.85
DN25 130 125 90 4 x D19 5.57
DN32 160 135 100 4 x D19 7.40
DN40 180 140 105 4 x D19 9.29
