Marine Steel Fixed Pilot Chair TR-001

Request a Quote Not what you need, please send your RFQs via Email.

Details

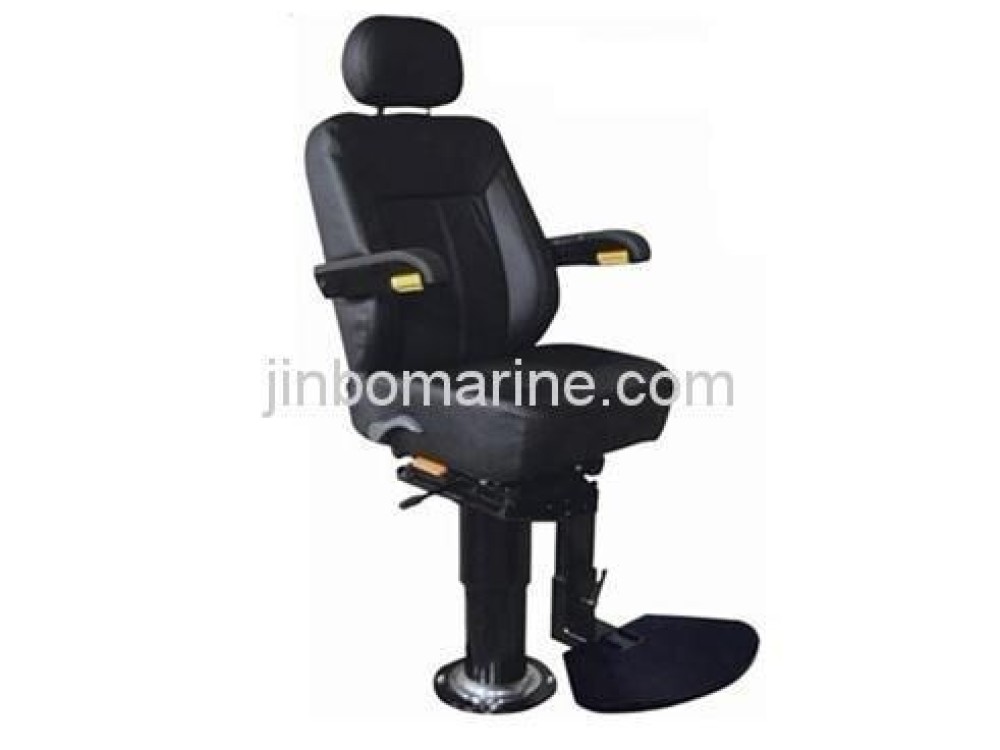

Marine Steel Fixed Pilot Chair Model No: TR-001

Function:

1. Round steel pillar pedestal with air operated lifting system

2. Meet the ergonomics design

3. Adjustable backrest and headrest

4. Seat height can be adjusted for angle

5. Movable seat forward and back

6. Foldable/angle adjustable comfort armrests

7. Swivel-mechanism 360,Multi-point positioning

8. Height adjustable/foldable footrest

9. Strong lifting column/Saltwater resistant/shock absorber in column

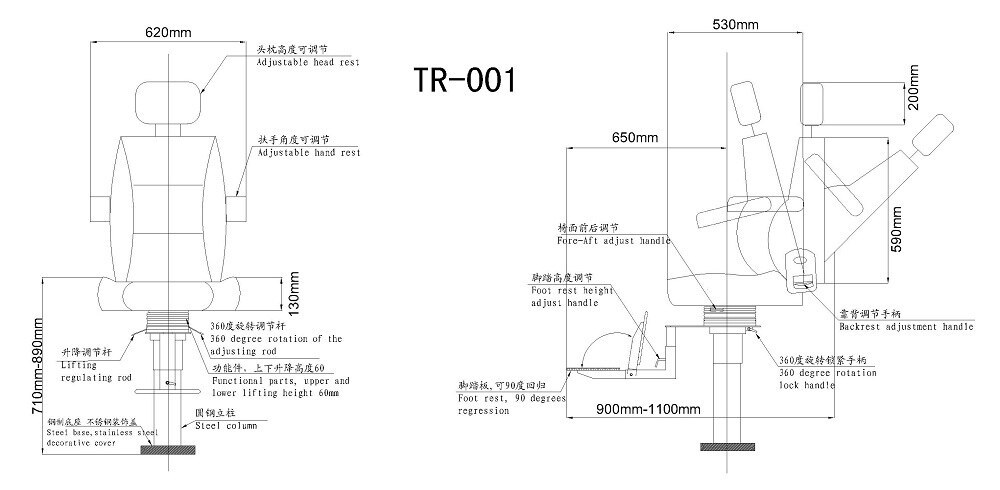

Function data:

1.Upper part of the seat can be moved back and forth of120mm,height adjustment50mm,seat inclination angle range of±12°;

2. Seat backrest with adjustable angle of85°-150°,the headrest adjusted up and down50mm,handrest multi-point positioning control;

3. The seat of pneumatic lifting regulating range0-150mm;

4.The seat can rotate360°and locked ,4-point positioningcontrol;

5. Seat pedal can rotate90°and regression, upper and lower position adjusting range of 0-50mm;

6.Seat can bear more than150FT.LBtorsion, reached AD grade standard;

Material:

1. The positioning base & the column are made of steel.

2. Seat lifting tilted, and moved back and forth, back of a chair Angle adjustment :The steel structure;

3. The seat back and seat cushion :steel inner core and PU cold foaming sponge synthesis, covered by leather or cloth art;

4. Foot pedals :the steel inner core and Environmental rubber products synthesis;

5. Air pressure lifting core components and Gas Spring : German import Stabilus;

6. The chair surface material is black high quality PU imitation leather, also can be customized true leather or fabric; Chair surface shape and color Can be customized according to customer requirements;
