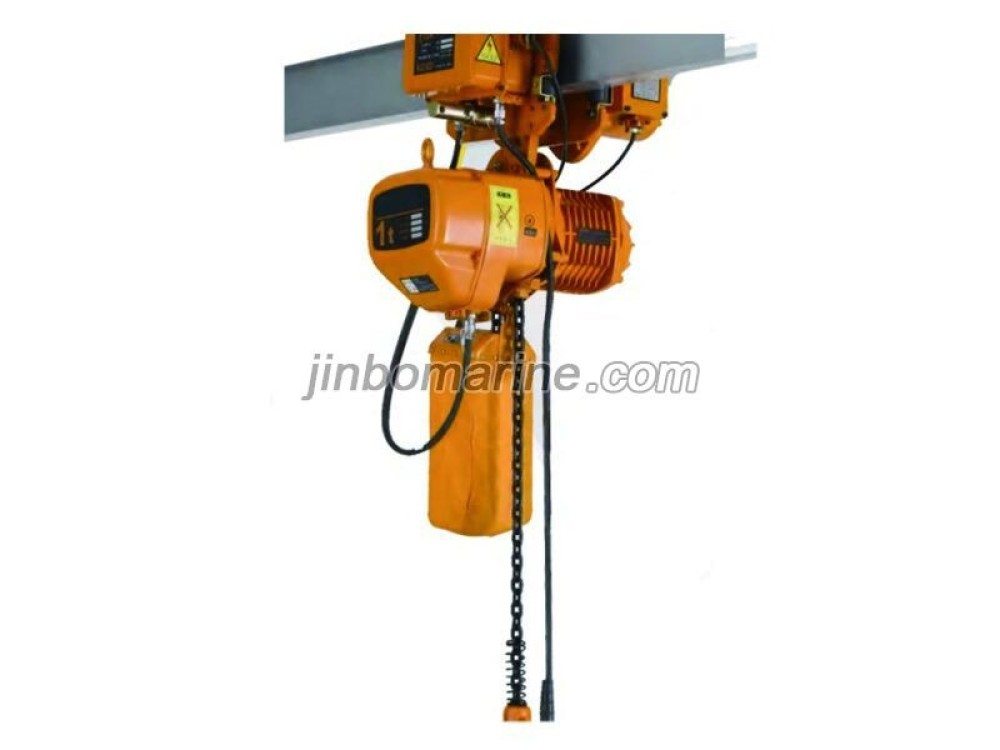

0.5-01/01-01/02-01/03-01 Running Type Electrical Hoist
- Category:Marine Hoist
- Delivery Time:10 days
- Packing Details:Carton
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China 0.5-01/01-01/02-01/03-01 Running Type Electrical Hoist:
0.5-01/01-01/02-01/03-01 Running Type Electrical Hoist
Technical Parameters:
| Type | Capacity(Ton) | Lifting Height (m) | Lifting Speed (m/min) | Lifting Moter | Operating Moter | |||||||||||||||||||
| Power(kw) | Rotation speed(r/min) | Phases | voltage(v) | Frequency(Hz) | Power(kw) | Rotation speed(r/min) | Phases | voltage(v) | Frequency(Hz) | |||||||||||||||
| HHBB0.5－01 | 0.5 | 3/9 | 7.2 | 1.1 | 1440 | 3 | 220-440 | 50/60 | 0.2 | 1440 | 3 | 220-440 | 50/60 | |||||||||||
| HHBB01－02 | 1 | 3/9 | 3.6 | 1.1 | 1440 | 3 | 220-440 | 50/60 | 0.4 | 1440 | 3 | 220-440 | 50/60 | |||||||||||
| HHBB01－01 | 1 | 3/9 | 6.8 | 1.5 | 1440 | 3 | 220-440 | 50/60 | 0.4 | 1440 | 3 | 220-440 | 50/60 | |||||||||||
| HHBB02－02 | 2 | 3/9 | 3.4 | 1.5 | 1440 | 3 | 220-440 | 50/60 | 0.4 | 1440 | 3 | 220-440 | 50/60 | |||||||||||
| HHBB02－01 | 2 | 3/9 | 6.6 | 3 | 1440 | 3 | 220-440 | 50/60 | 0.4 | 1440 | 3 | 220-440 | 50/60 | |||||||||||
| HHBB03－03 | 3 | 3/9 | 2.2 | 1.5 | 1440 | 3 | 220-440 | 50/60 | 0.75 | 1440 | 3 | 220-440 | 50/60 | |||||||||||
| HHBB03－02 | 3 | 3/9 | 3.3 | 3 | 1440 | 3 | 220-440 | 50/60 | 0.75 | 1440 | 3 | 220-440 | 50/60 | |||||||||||
| HHBB03－01 | 3 | 3/9 | 5.6 | 3 | 1440 | 3 | 220-440 | 50/60 | 0.75 | 1440 | 3 | 220-440 | 50/60 | |||||||||||
| HHBB05－02 | 5 | 3/9 | 2.8 | 3 | 1440 | 3 | 220-440 | 50/60 | 0.75 | 1440 | 3 | 220-440 | 50/60 | |||||||||||

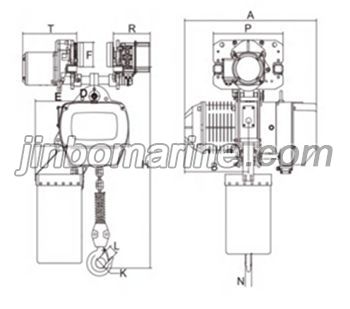

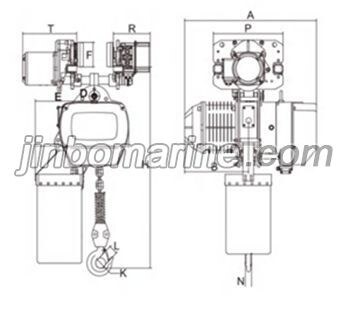

Product Size:
| Type | Capacity | H | A | B | D | E | F | K | L | N | P | T | R | I-BEAM |
| HHBB0.5－01 | 0.5 | 630 | 460 | 230 | 240 | 160 | Φ60 | Φ32 | 25 | 17 | 198 | 185 | 168 | 70-130 |
| HHBB01－02 | 1 | 640 | 460 | 230 | 240 | 205 | Φ95 | Φ40 | 31 | 24 | 315 | 252 | 168 | 80-160 |
| HHBB01－01 | 1 | 650 | 520 | 260 | 310 | 205 | Φ95 | Φ40 | 31 | 24 | 315 | 252 | 168 | 80-160 |
| HHBB02－02 | 2 | 740 | 520 | 260 | 310 | 230 | Φ110 | Φ49 | 35 | 30 | 325 | 252 | 168 | 82-178 |
| HHBB02－01 | 2 | 770 | 620 | 300 | 440 | 265 | Φ125 | Φ49 | 35 | 30 | 325 | 252 | 168 | 82-178 |
| HHBB03－03 | 3 | 920 | 420 | 260 | 310 | 280 | Φ125 | Φ59 | 42 | 35 | 340 | 252 | 168 | 110-180 |
| HHBB03－02 | 3 | 940 | 620 | 300 | 440 | 320 | Φ125 | Φ59 | 42 | 35 | 340 | 252 | 168 | 100-180 |
| HHBB03－01 | 3 | 840 | 620 | 300 | 440 | 265 | Φ125 | Φ59 | 42 | 35 | 340 | 252 | 168 | 100-180 |
| HHBB05－02 | 5 | 1015 | 620 | 300 | 440 | 325 | Φ175 | Φ60 | 45 | 43 | 400 | 252 | 168 | 110-180 |
