0.5CWF-6(B)Marine crushing pump
- Category:Sewage Pump
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
0.5CWF-6(B)Marine crushing pump
CWF series marine pulverizing pump is the open impeller cenfrifugal dischargepump,which is used to pulverize and transfer the soft foul in the anitary sewageunder 85℃.The maximum diameter of solid particle after circular pulverizingis within 5mm.It is also applicable to pulverize the coagulate of heavy oil underlow temperature,in order to facilitate injection.

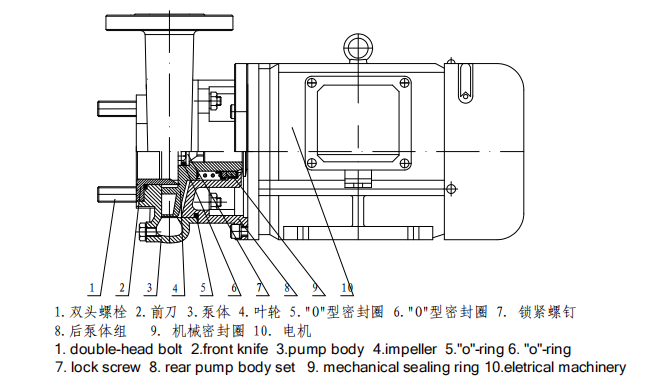

Structure:
Techincal data:
| Model |
Flow m/³h |
Pressure MPa |
Motor Power KW |
Speed r/min |
Out let DN mm |
Inlet DN mm |
| 0.5CWF-6(B) | 5 | 0.06 | 0.75 | 2820 | 32 | 50 |
| 0.5CWF-10(B) | 5 | 0.10 | 1.1 | 2820 | 32 | 50 |
| 0.5CWF-15(B) | 5 | 0.15 | 1.1 | 2820 | 32 | 50 |
| 0.5CWF-20(B) | 5 | 0.20 | 1.5 | 2840 | 32 | 50 |
| 0.5CWF-30(B) | 5 | 0.30 | 3.0 | 2880 | 32 | 50 |
| 1CWF-11(B) | 10 | 0.11 | 1.5 | 2840 | 40 | 65 |
| 1CWF-20(B) | 10 | 0.20 | 3.0 | 2880 | 40 | 65 |
| 1CWF-30(B) | 10 | 0.30 | 4.0 | 2900 | 40 | 65 |
| 2CWF-11(B) | 20 | 0.11 | 2.2 | 2840 | 50 | 65 |
| 2CWF-20(B) | 20 | 0.20 | 3.0 | 2890 | 50 | 65 |
| 2CWF-30(B) | 20 | 0.30 | 5.5 | 2900 | 50 | 65 |
| 3CWF-10(B) | 30 | 0.10 | 4.0 | 2890 | 65 | 80 |
