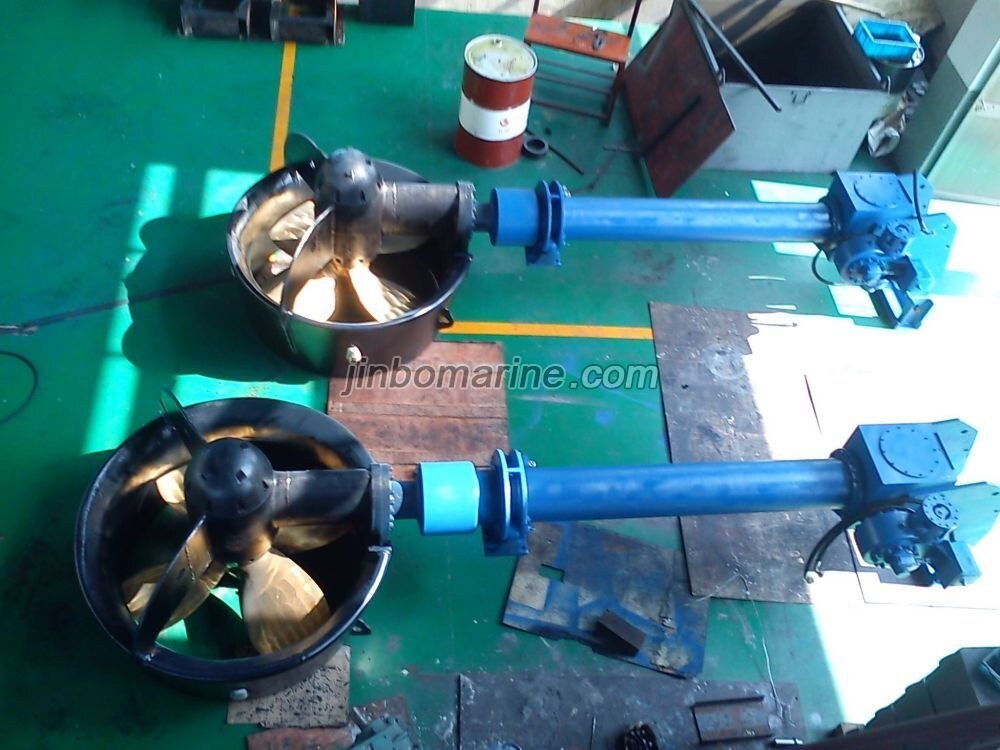

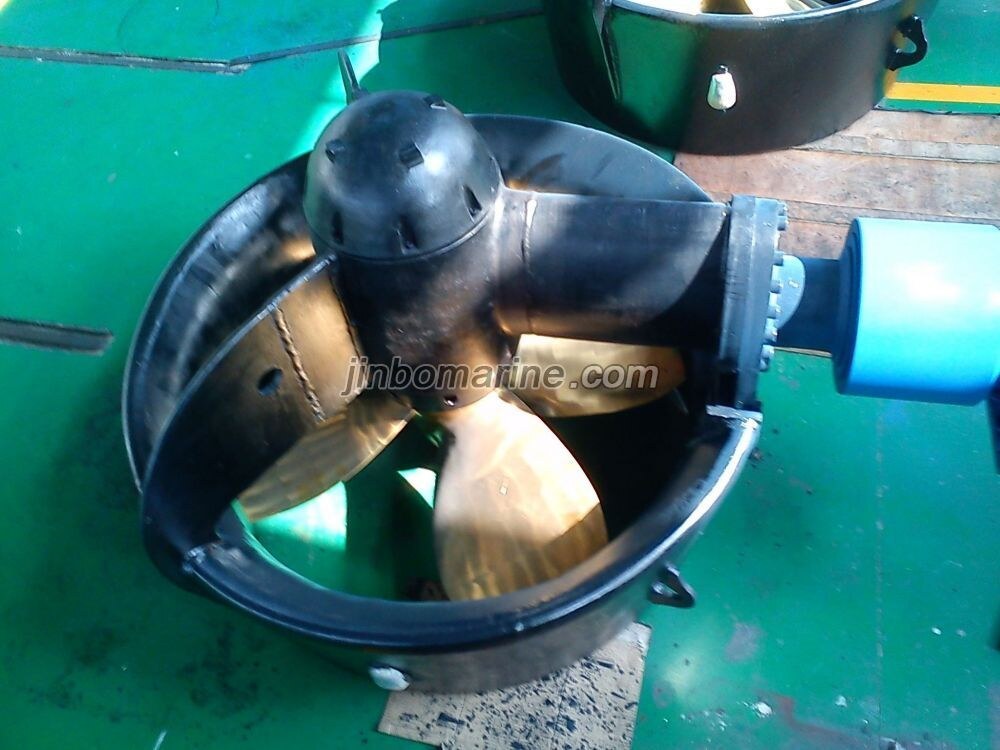

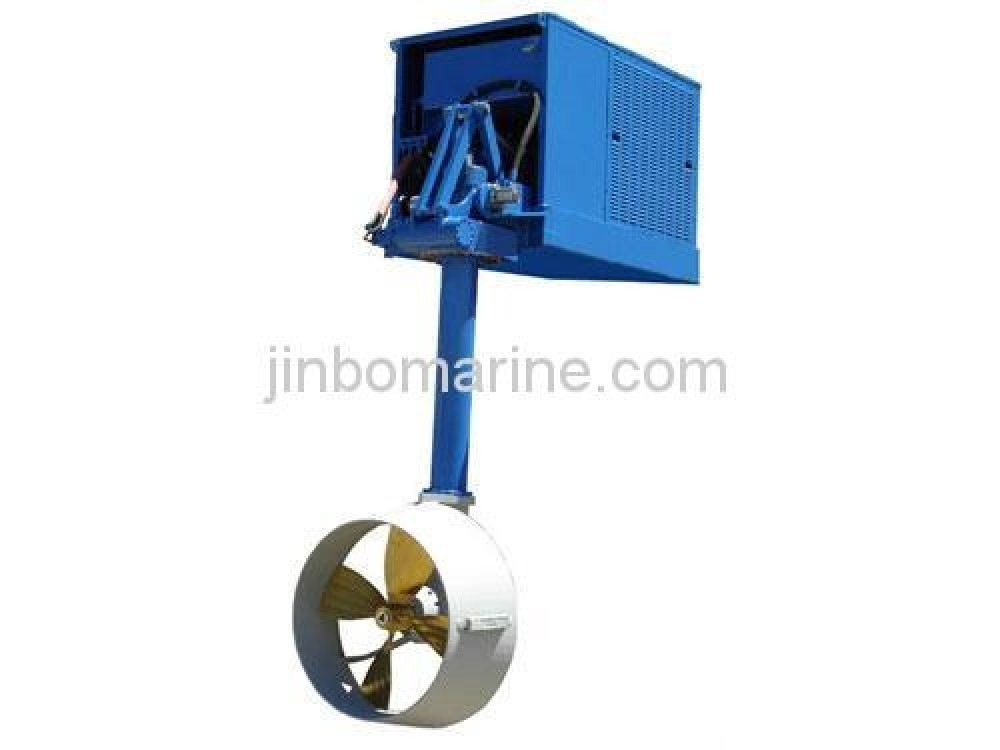

Hydraulic Rudder Propeller
Hydraulic Rudder Propeller with diesel or electric hydraulic drives. The hydraulic drive is especially suited for shallow, brown water applications. The hydraulic drive provid...
Hydraulic Rudder Propeller
PDF Datasheet
We can supply according to your requirement.
China Hydraulic Rudder Propeller:
Hydraulic Rudder Propeller with diesel or electric hydraulic drives.
The hydraulic drive is especially suited for shallow, brown water applications.
The hydraulic drive provides fully proportional propeller speed control in forward and reverse while the engine runs at constant speed.
He hydraulic drive provides fully proportional propeller speed control in forward and reverse while the engine runs at constant speed. Many options are available, including hydraulic kick-up of the outdrive, hydraulic propeller depth adjustment, remote control panels, choice of engines, etc.
Specification:
| Model | Power Rating | Dia of propeller | Thrust |
| (HP) | (mm) | (t) | |
| HP50 | 0-50 | 620 | 0-0.7 |
| HP100 | 50-100 | 830 | 1-1.4 |
| HP200 | 100-200 | 950 | 1.5-3.2 |
| HP300 | 200-300 | 1000 | 3.4-4.4 |
| HP400 | 300-400 | 1180 | 4.7-6.2 |
| HP500 | 400-500 | 1300 | 6.5-7.7 |
