02 Series 350GPH Bilge Pump
- Category:Bilge Pump
- Standards:standard
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

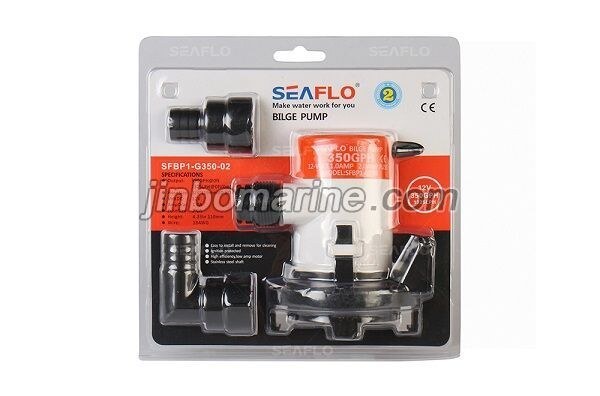

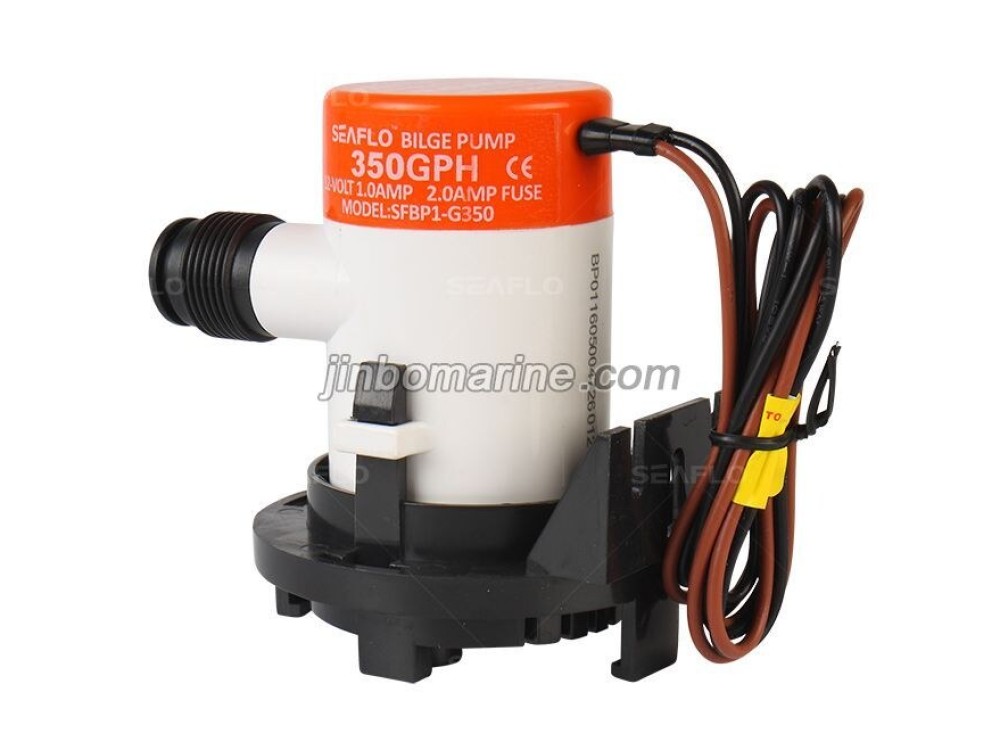

02 Series 350GPH Bilge Pump
Like our 01-series, this pump is normally activated by a panel or float switch. However, this custom strainer allows the pump to be mounted to a bulkhead or transom =, as well as normal bilge mounting. One type offers a barbed output, while the other is threaded in order to be flexible to your specific application.
STANDARD PUMP CONFIGURATIONS
| Model | FlowRate | Voltage | Max Draw | Fuse Amps | Head | Wire Lead | Outlet Dia | N.W. / G.W. |
| SFBP1-G350-02 | 350 GPH | 12 V | 1.0 A | 2.0 A | 9' (3m) | 3' (1m) | 3/4" | 0.22/0.33 kg |
PERFORMANCE
|
Voltage(V)
|
Current(A)
|
Flow
|
Head(M)
|
|
|
GPH
|
LPH |
|||
| 12 | 1.2 | 320 | 1211 | 0 |
| 12 | 1.2 | 295 | 1117 | 0.25 |
| 12 | 1.2 | 280 | 1060 | 0.50 |
| 12 | 1.3 | 270 | 1022 | 0.75 |
| 12 | 1.3 | 255 | 965 | 1.00 |
| 12 | 1.5 | 210 | 795 | 1.25 |
| 12 | 1.5 | 160 | 606 | 1.50 |
