220V Electric Chain Hoist

Request a Quote Not what you need, please send your RFQs via Email.

Details

China 220V Electric Chain Hoist:

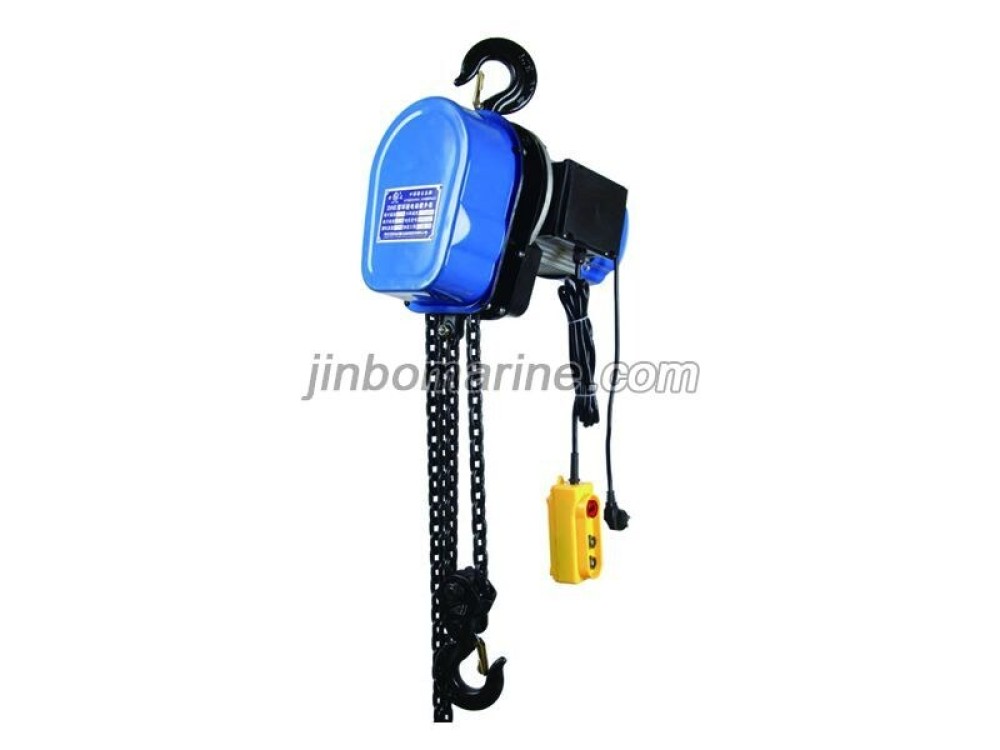

220V Electric Chain Hoist

220V Electric Chain Hoist is a high-performance industrial lifting device powered by three-phase 220V electricity, designed for medium-to-heavyload handling in factories, warehouses, workshops, and construction sites. Combining high-strength alloy steel chains with variable frequency motor technology, it enables precise control and continuous operation, offering a load capacity range of 0.5 to 10tons with exceptional efficiency and durability.

MODEL MOTOR POWER WEIGHT SIZE (CM) NUMBER OFCHAIN ROWS LIFT HEIGHT LIFTING SPEED RATED LIFTING CAPACITY
1T 220V1.5KW 36KG 48/30/29 1 3M-12M 2.25M/MIN 1500KG
2T 220V1.5KW 40KG 48/30/29 1 3M-12M 1.85M/MIN 2500KG
3T 220V1.5KW 42KG 48/30/29 2 3M-12M 1.1M/MIN 3500KG
5T 220V2.2KW 53KG 48/30/29 2 3M-12M 0.9M/MIN 5500KG
