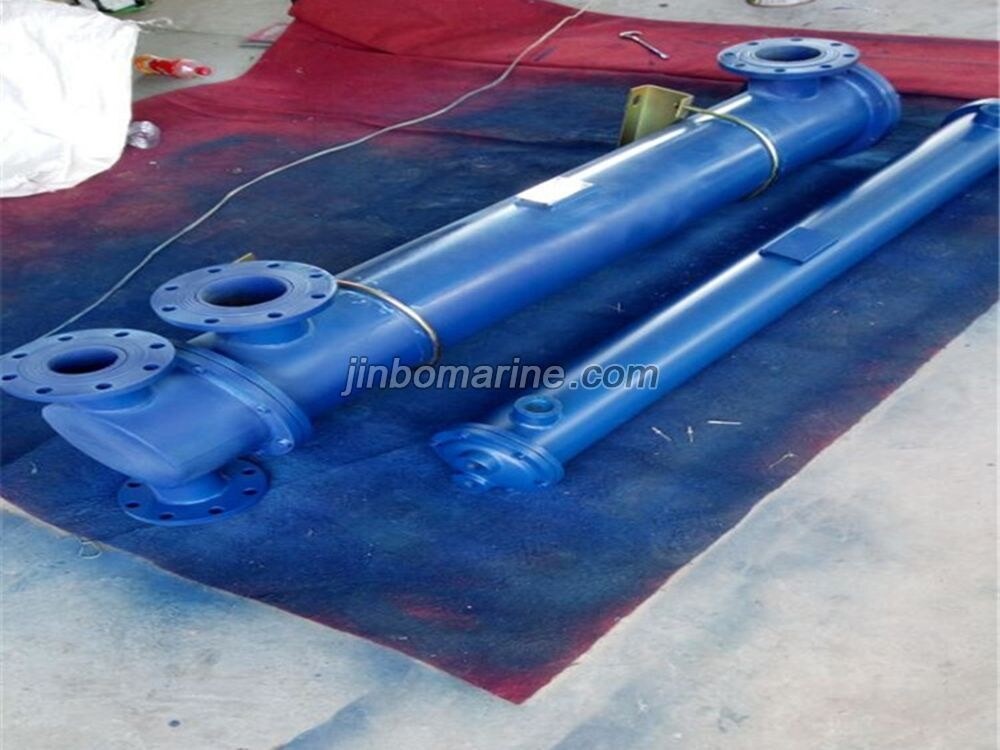

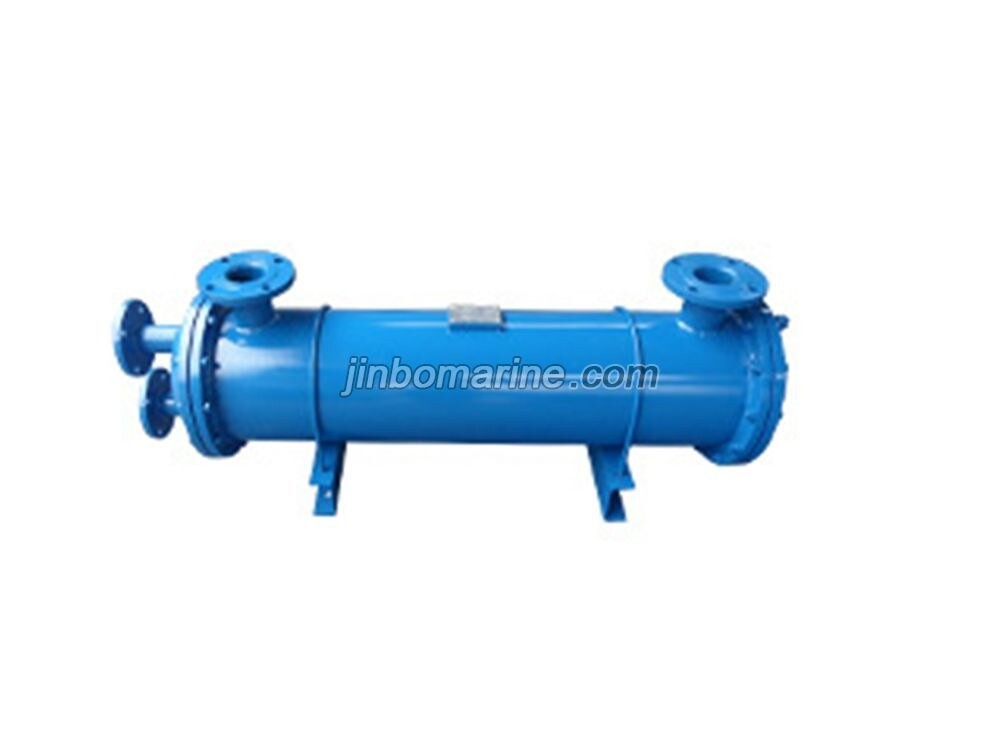

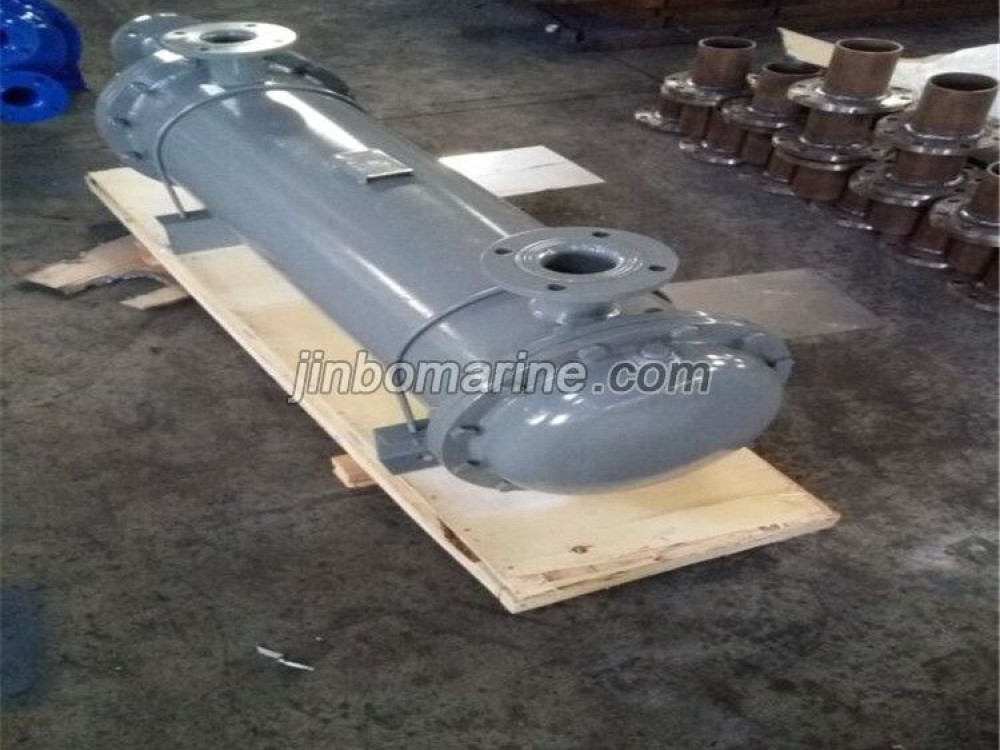

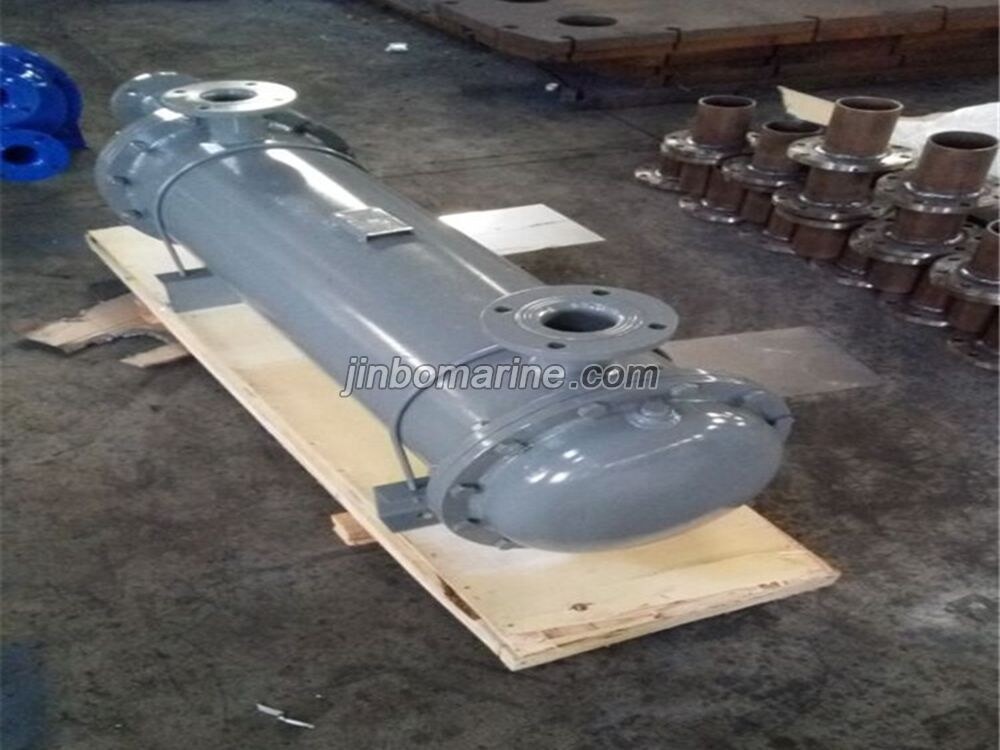

2LQFW Model Oil Cooler

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

This type oil cooler used to cooling oil of machines.

Model A0.5F A0.65F A0.8F A1.0F A1.2F A1.46F A1.7F A2.1F A2.5F A3.0F A3.6F A4.3F A5.0F A6.0F A7.2F A8.5F A10F A12F A14F A16F
Area of cooling surface ㎡ 0.5 0.65 0.8 1 1.2 1.46 1.7 2.1 2.5 3 3.6 4.3 5 6 7.2 8.5 10 12 14 16
D5 186 186 186 220 220 220 270 270 270 308 308 308 340 340 340 406 406 406 406 406
K 164 164 164 190 190 190 240 240 240 278 278 278 310 310 310 366 366 366 366 366
h 16 16 16 16 16 16 18 18 18 18 18 18 18 18 18 20 20 20 20 20
G 75 75 75 80 80 80 85 85 85 90 90 90 95 95 95 100 100 100 100 100
d5 12 12 12 15 15 15 15 15 15 15 15 15 15 15 15 18 18 18 18 18
Dg 114 114 114 150 150 150 186 186 186 219 219 219 245 245 245 325 325 325 325 325
L 620 745 875 760 886 1010 825 975 1125 960 1085 1235 1015 1165 1340 1100 1225 1400 1400 1400
H1 95 95 95 115 115 115 140 140 140 200 200 200 240 240 240 280 280 280 280 280
P 93 93 93 105 105 105 120 120 120 170 170 170 190 190 190 210 210 210 210 210
T 357 482 607 460 585 710 500 650 800 565 690 840 570 720 895 590 715 890 890 890
Flange Ellipse Circular
d1 25 25 25 32 32 32 40 40 40 50 50 50 65 65 65 80 80 80 80 80
D1 90 90 90 100 100 100 118 118 118 160 160 160 180 180 180 195 195 195 195 195
B1 64 64 64 72 72 72 85 85 985
D3 65 65 65 75 75 75 90 90 90 125 125 125 145 145 145 160 160 160 160 160
d3 11 11 11 11 11 11 14 14 14 18 18 18 18 18 18 8*?18 8*?18 8*?18 8*?18 8*?18
d1 20 20 20 25 25 25 32 32 32 40 40 40 50 50 50 65 65 65 65 65
D2 80 80 80 90 90 90 100 100 100 145 145 145 160 160 160 180 180 180 180 180
B2 45 45 45 64 64 64 72 72 72 ?
D4 55 55 55 65 65 65 75 75 75 110 110 110 125 125 125 145 145 145 145 145
d4 11 11 11 11 11 11 11 11 11 18 18 18 18 18 18 18 18 18 18 18
Weight kg 35 38 41 51 55 58 68 77 84 118 126 137 148 163 179 227 243 265 275 285
