4000L Main starting Air Reservior:
4000L Main starting Air Reservior: It used to main engine starting when the controller start the main engine. B-type is made up of steel body, shell cover, manhole for easy ...
Loading product images...

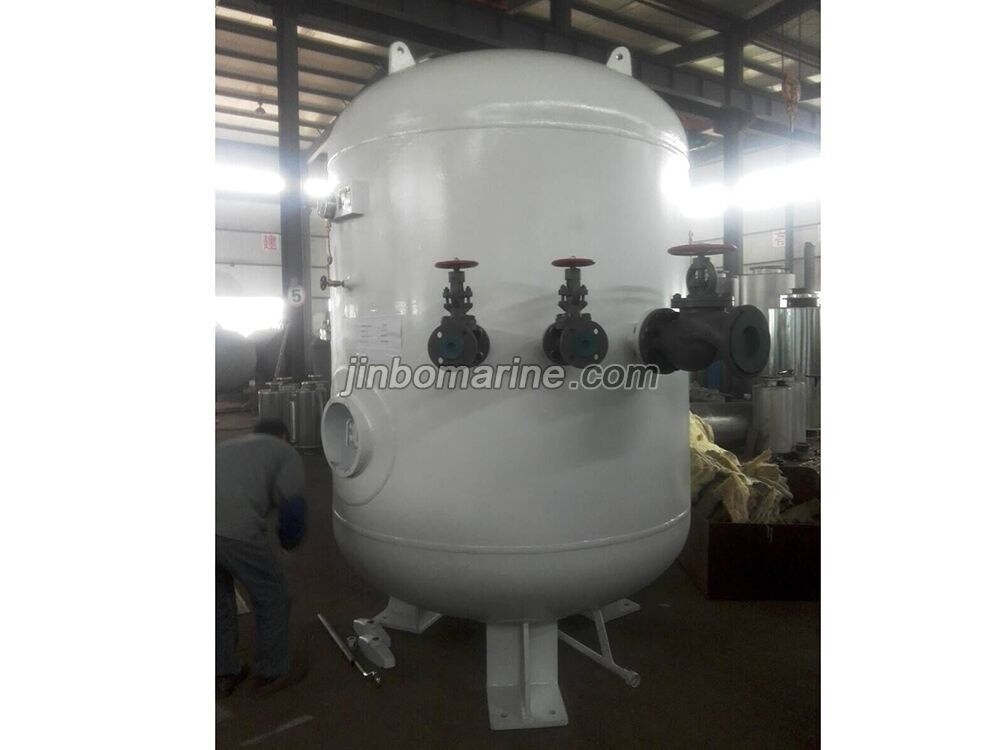

4000L Main starting Air Reservior:
PDF Datasheet
We can supply according to your requirement.
4000L Main starting Air Reservior:
It used to main engine starting when the controller start the main engine.
B-type is made up of steel body, shell cover, manhole for easy examination and repair set in shell cover, inlet/outlet valve, safety valve, pressure gauge and pressure gauge valve, drain valve, installation seat ect.
Notice:
The specification is according to its volume and working pressure, you can choose as CB/T493-1998. You also can give us parameter concerned, we will provide non-standard products
Technical data:
| B | Type remark | Capacity | Working Pressure | Internal Diameter | Height | Weight |
| m3 | Mpa | mm | mm | kg | ||
| B0.63-1.0 | 0.63 | 1 | 700 | 1370 | 480 | |
| B0.80-1.0 | 0.8 | 700 | 1370 | 520 | ||
| B1.00-1.0 | 1 | 800 | 1490 | 695 | ||
| B0.63-3.0 | 0.63 | 3 | 700 | 1470 | 680 | |
| B0.80-3.0 | 0.8 | 700 | 1470 | 780 | ||
| B1.00-1.0 | 1 | 800 | 1580 | 950 | ||
| B1.60-3.0 | 1.6 | 900 | 1680 | 1180 | ||
| B2.50-3.0 | 2.5 | 1100 | 1940 | 1925 | ||
| B4.00-3.0 | 4 | 1200 | 2040 | 3400 | ||
| B4.50-3.0 | 4.5 | 1200 | 2040 | 3750 | ||
| B5.00-3.0 | 5 | 1200 | 2040 | 4100 | ||
| B6.30-3.0 | 6.3 | 1400 | 2266 | 4230 | ||
| B8.00-3.0 | 8 | 1500 | 2365 | 4930 | ||
| B10.00-3.0 | 10 | 1600 | 2505 | 6785 | ||
| B12.00-3.0 | 12 | 1700 | 2605 | 7500 | ||
| B14.00-3.0 | 14 | 1800 | 2750 | 8770 | ||
| B16.00-3.0 | 16 | 2000 | 3070 | 11000 |
