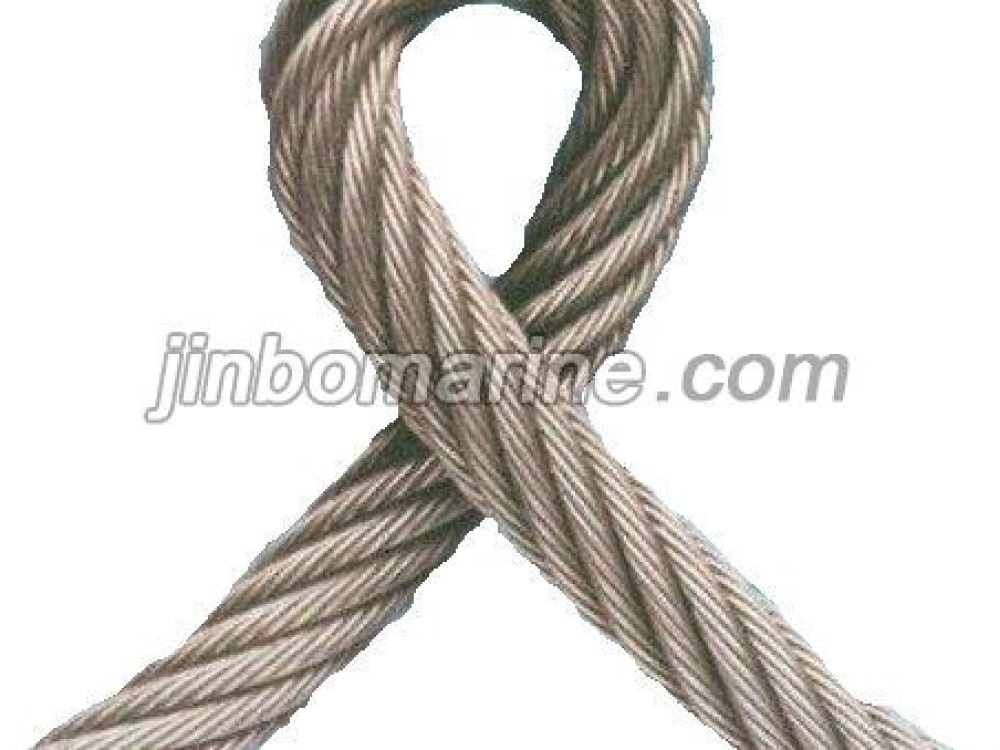

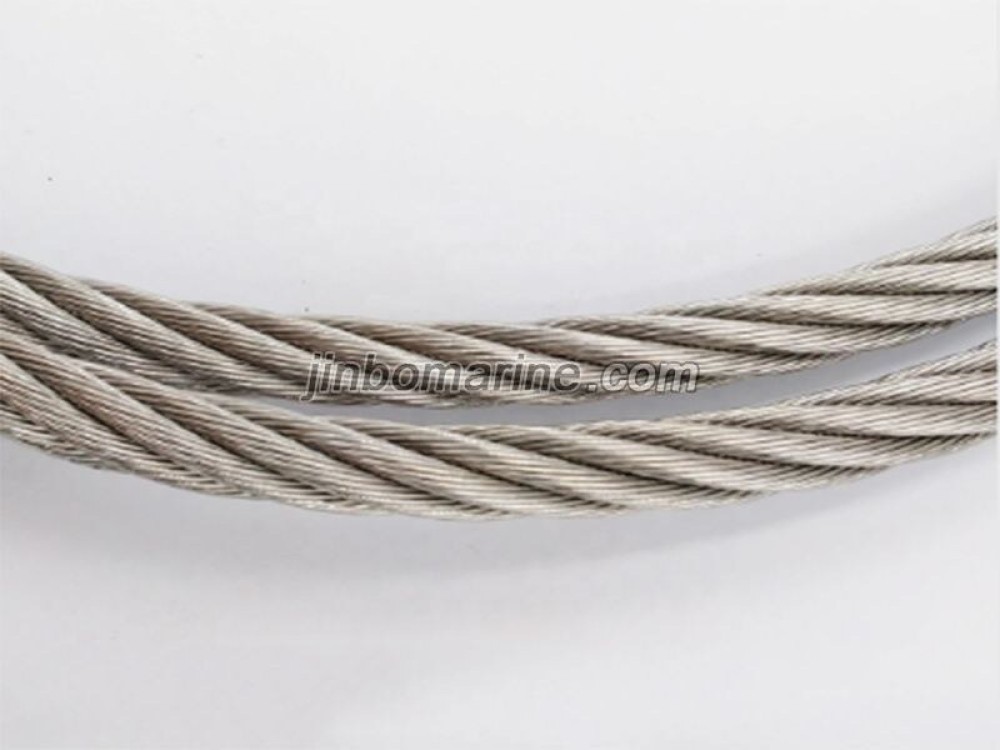

6x19+IWR Steel Wire Rope Category B

Request a Quote Not what you need, please send your RFQs via Email.

Details

Wire Rope Definition

a. Wires: steel wires for wire ropes are normally made of non-alloy carbon steel with a carbon content of 0.4 to 0.95%. The tensile forces and to run over sheaves with relatively small diameters.
b. Strand: the strand is a component of wire rope usually consisting of an assembly of wires of appropriate diamsions laid helically in one or more layers around a central element.
c. Core: the core is the central element, of fiber or steel, around which are laid helically the outer strands of wire rope. The core provides proper support for the strands under normal bending and loading conditions.

d. Wire rope is several strands of metal wire twisted into a helix forming a composite "rope", in a pattern known as "laid rope". Larger diameter wire rope consists of multiple strands.

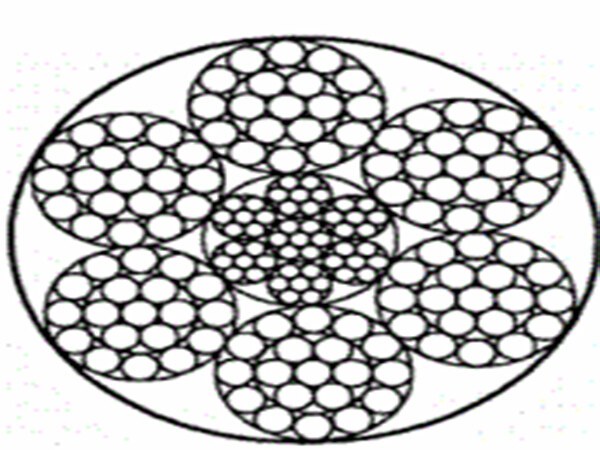

6x19+IWR Steel Wire Rope Category B Construction

6x19+IWR Steel Wire Rope Category B Parameter

Diameter
MM
Approx.Weight Minimun Breaking Load of Rope(KN)
Kg/100m 1570Mpa 1670Mpa
NF SF IWR FC IWR FC IWR
3 31.6 3.1 3.6 4.34 4.69 4.61 4.99
4 5.62 5.5 6.4 7.71 8.34 8.2 8.87
5 8.78 8.6 10 12 13 12.8 13.9
6 12.6 12.4 14.4 17.4 18.8 18.5 20
7 17.2 16.9 19.6 23.6 25.5 25.1 27.2
8 22.5 22 25.6 30.8 33.4 32.8 35.5
9 28.4 27.9 32.4 39 42.2 41.6 44.9
10 35.1 34.4 40 48.2 52.1 51.3 55.4
11 42.5 41.6 48.4 58.3 63.1 62 67.1
12 50.5 50 57.6 69.4 75.1 73.8 79.8
13 59.3 58.1 67.6 81.5 88.1 86.6 93.7
14 68.8 67.4 78.4 94.5 102 100 109
16 89.9 88.1 102 123 133 131 142
18 114 111 130 159 169 166 180
20 140 138 160 193 208 205 222
22 170 166 194 233 252 248 268
24 202 198 230 278 300 295 319
26 237 233 270 326 352 346 375
28 275 270 314 378 409 402 435
30 316 310 360 434 469 461 499
32 359 352 410 494 534 525 568
34 406 398 462 557 603 593 641
36 455 446 518 625 676 664 719
38 507 497 578 696 753 740 801
40 562 550 640 771 834 820 887
42 619 607 706 850 919 904 978
44 680 666 774 930 1010 993 1070
46 743 728 846 1020 1100 1080 1170

Diameter
MM
Minimun Breaking Load of Rope(KN)
1770Mpa 1870Mpa
FC IWR FC IWR
3 4.89 5.29 5.17 5.59
4 8.69 9.4 9.19 9.93
5 13.6 14.7 14.4 15.5
6 19.6 21.2 20.7 22.4
7 26.6 28.8 28.1 30.4
8 34.8 37.6 36.7 39.7
9 44 47.6 46.5 50.3
10 54.4 58.8 57.4 62.1
11 65.8 71.1 69.5 75.1
12 78.2 84.6 82.7 89.4
13 91.8 99.3 97 105
14 107 115 113 122
16 139 150 147 159
18 176 190 186 201
20 217 235 230 248
22 263 284 278 300
24 313 338 331 358
26 367 397 388 420
28 426 461 450 487
30 489 529 517 559
32 557 602 588 636
34 628 679 664 718
36 704 762 744 805
38 785 849 829 896
40 869 940 919 993
42 959 1040 1010 1100
44 1050 1140 1110 1200
46 1150 1240 1210 1310

Applications

Mine hoisting, blast furnace hoisting, large casting, oil drilling, forestry and marine industries,all kinds ofelevator, large hoisting, ground cable car ships and offshore facilities, cable railing.

How To Choose Material

1.stainless steel :
providing good corrosion resistance and strength comparable to galvanized carbon steel grades.
2.galvanized steel:

Zinc coated carbon steel offers some corrosion resistance. It remains ductile over long periods of working. Usually higher break strengths than stainless steels.

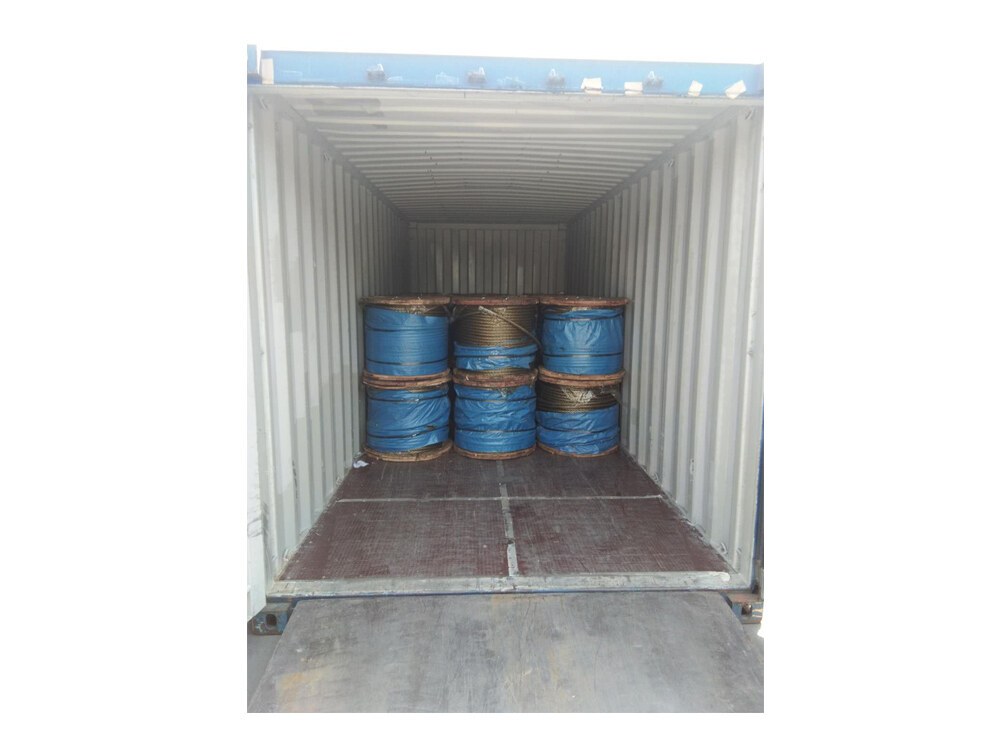

Packaging
